II
QUICK REFERENCE GUIDE
QUICK REFERENCE

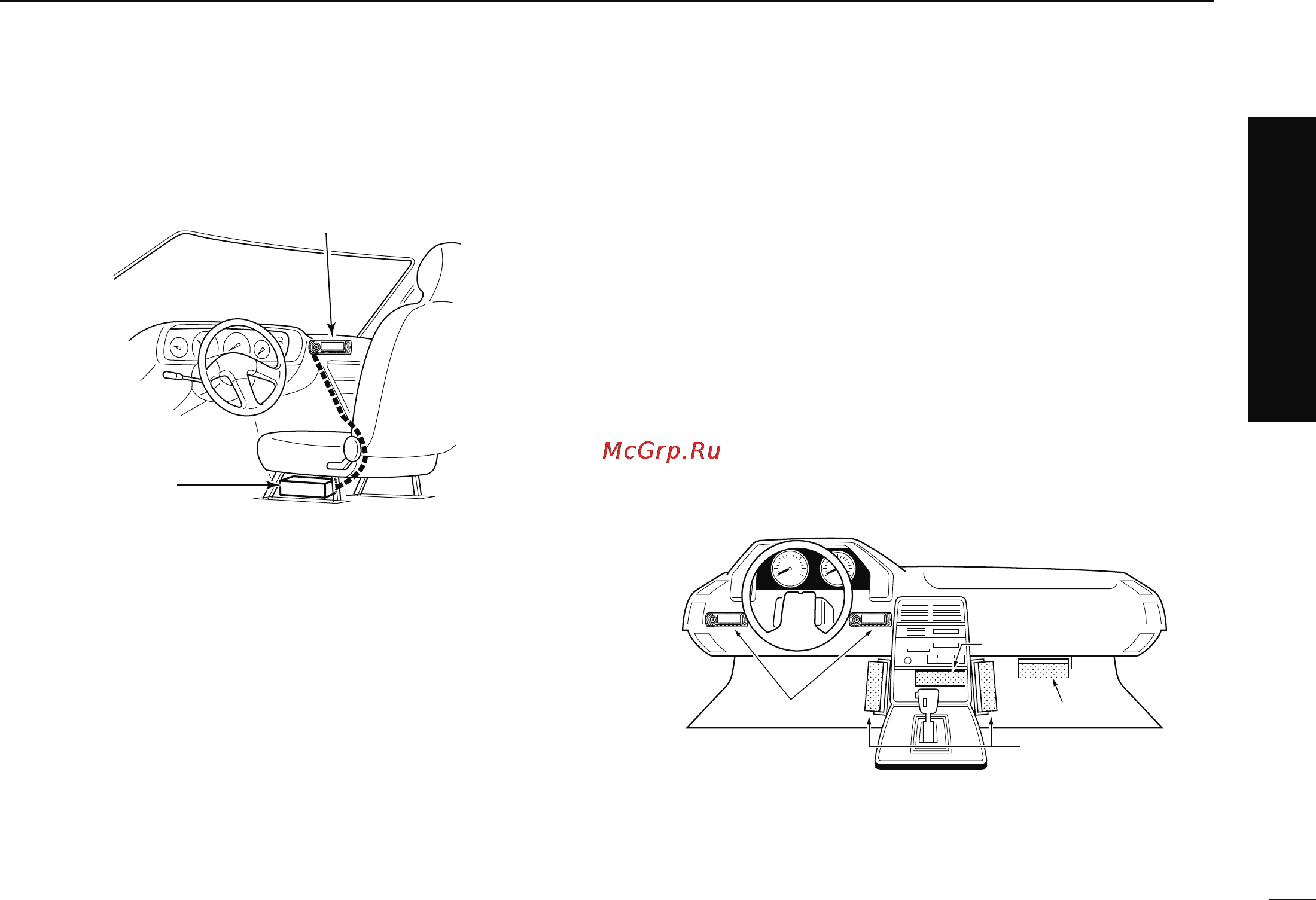

• Remote installation
Main unit
Controller
• The supplied remote controller bracket and separation cable
can be used for installation.
• Optional OPC-440
MICROPHONE CABLE (5.0 m; 16.4 ft) and
OPC-647 (2.5 m; 8.2 ft) are available to extend the micro-
phone cable.
• Optional OPC-441
SPEAKER CABLE (5.0 m; 16.4 ft) is avail-
able to extend the speaker cable.
D Location
Select a location which can support the weight of the trans-
ceiver and does not interfere with driving. We recommend the
locations shown in the diagram below.
NEVER place the transceiver or remote controller where
normal operation of the vehicle may be hindered or where it
could cause bodily injury.
NEVER place the transceiver or remote controller where air
bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where hot
or cold air blows directly onto it.
DO NOT place the transceiver or remote controller in direct
sunlight.
Controller
Main unit
Main unit
Main unit
