126
10
MENU SCREEN OPERATION

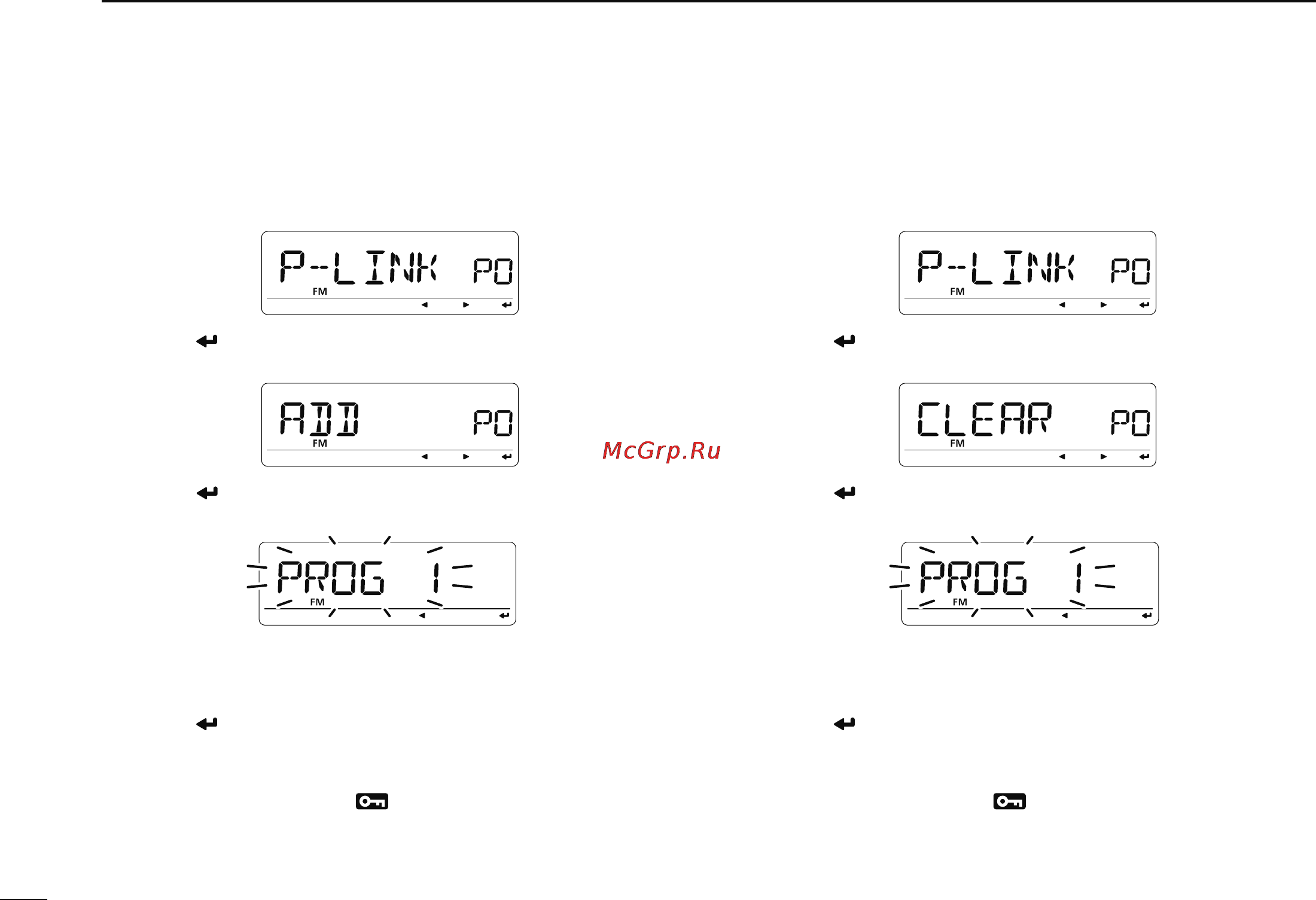

• Program scan link setting (ADD)
q Rotate [DIAL] to select the program scan link number that
you want to add.
w Push [ ](MONI) to enter program scan link setting.
e Rotate [DIAL] to select “ADD.”
r
Push
[ ](MONI)
then rotate [DIAL] to select the desired
programmed scan number to be linked.
• Only programmed scan numbers that have not linked in the se-
lected program link number are displayed.
• Push [Ω](CS) to cancel the selection.
t Push [ ](MONI)
to add the selected programmed scan.
• Return to the previous indication as step e.
y
Repeat steps e to t to continue the program scan link
setting or push [MENU
] to exit the MENU screen op-
eration.
• Program scan link setting (CLEAR)
q Rotate [DIAL] to select the program scan link number that
you want to delete.
w Push [ ](MONI) to enter program scan link setting.
e Rotate [DIAL] to select “CLEAR.”
r
Push
[ ](MONI)
then rotate [DIAL] to select the desired
programmed scan number to be deleted from the link.
• Only programmed scan numbers that have linked in the se-
lected program link number are displayed.
• Push [Ω](CS) to cancel the selection.
t Push [ ](MONI)
to delete the setting.
• Return to the previous indication as step e.
y
Repeat steps e to t to continue the program scan link
setting or push [MENU
] to exit the MENU screen op-
eration.
