61
5
DV MODE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D Calling a specific station in the same zone (Zone call)
q Set the desired repeater’s frequency, offset and shift direc-
tion (pgs. 14, 15, 23, 27), then select the DV mode (p. 18).
Your own call sign (step w) and station call sign (step e)
can also be set as same as repeater call signs in current
call sign mode (step r).
w Set the current MY call sign to your own call sign.
• See pgs. 42, 43 for current call sign setting detail.
e Set the current station call sign as follows:
z Push and hold [UR](DR) for 1 sec. to enter UR call sign
selection mode.
x Rotate [DIAL] to select the desired station call sign.
• Push [BAND] several times to select “GRP UR” in advance.
c Push [UR](DR) again to return to frequency indication.
r Set the current repeater’s call sign as follows:
z Push [CS] to enter the current call sign mode.
• UR call sign is displayed.
• Push [M/CALL] to toggle the call sign and repeater name
indications.
x Rotate [DIAL] to select “R1,” access repeater’s call sign,
then push [
](MONI) to enter the current call sign se-
lection mode.
c Rotate [DIAL] to select the desired access repeater’s
call sign, then push [
](MONI) to set the call sign for
“RPT1.”
• Return to the current call sign mode.
v
Rotate [DIAL] to
select “R2,” linked repeater’s call sign, then
push [
](MONI) to set the current call sign selection mode.
• “RPT2” call sign screen is displayed.
b Rotate [DIAL] to select the desired repeater call sign in
the same zone, then push [
](MONI).
• Return to the current call sign mode.
n Push [MENU ] to return to frequency indication.
t Push [PTT] to transmit; release to receive.
• UR call sign is displayed and scrolled in sequence on the fre-
quency display depending on “TX CS” setting (p. 136).

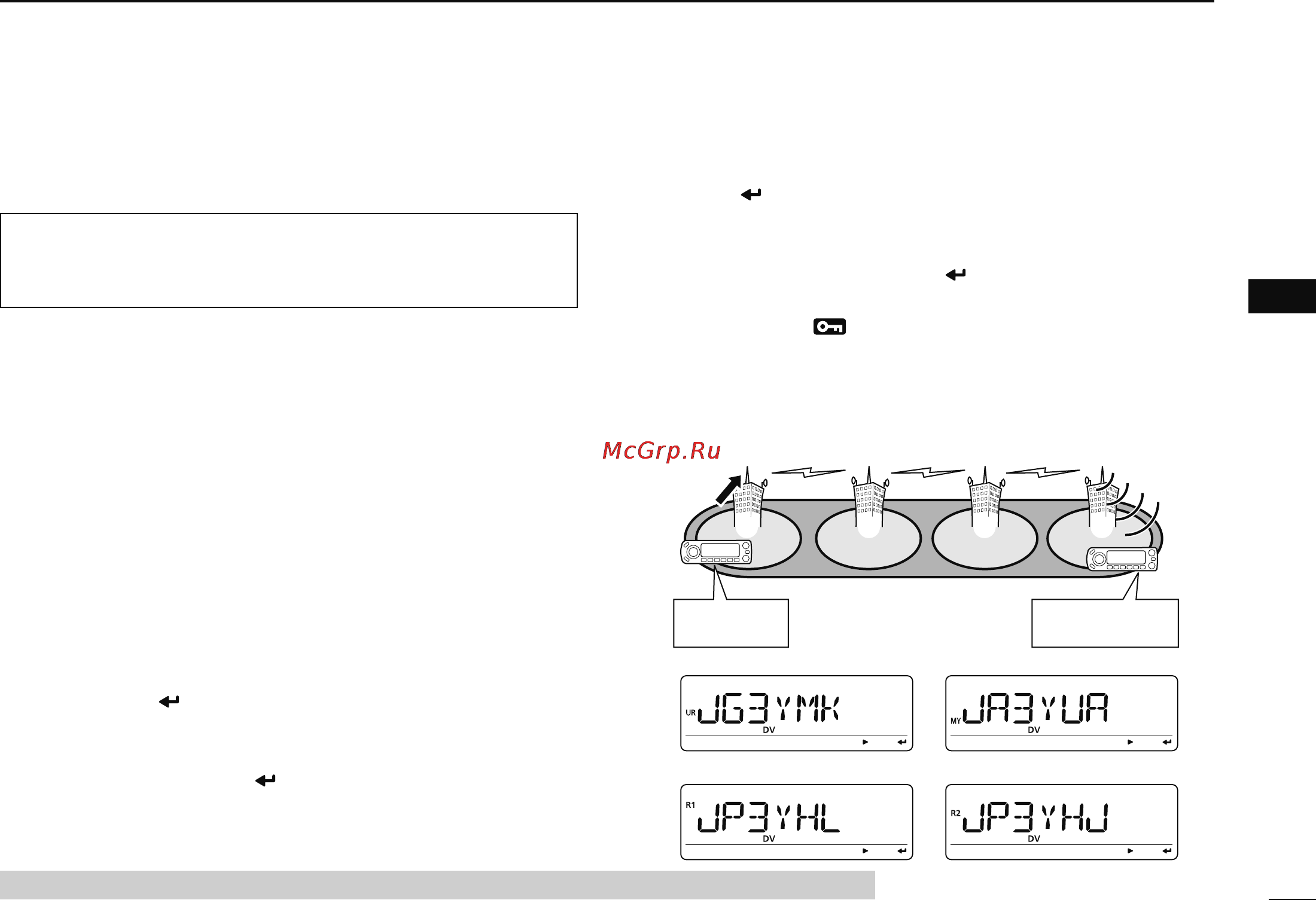

• Current call sign setting example
My call sign：
JA3YUA
Station call sign：
JG3YMK
Repeater q ： JP3YHL
Repeater r ： JP3YHJ
q w e r
UR MY
R1 R2
Area
Zone
Pushing and holding [BAND] for 1 sec. selects the repeater group when in selection mode.
