54
5
DV MODE OPERATION
Repeater q ：
Repeater e ：
Repeater u ：
NARA43
(JP3YHL)
HIRANO43
(JP3YHH G)
HAMA43
(JP1YIU)
Gateway
Gateway
Area
Zone A
Zone B
q w e r
t y u i
MY call sign：
JA3YUA
Station call sign：
JM1ZLK
NOTE:OTE: If the other station has accessed the repeater at
least once, the D-STAR system will connect to the re-
peater automatically even you don’t know where the sta-
tion is (possible in the same area as you, or in the same
zone or a different zone). In this case, you select “GW” as
the RPT2 selection. The Auto gateway setting “GW SET”
is helpful (p. 136).
Continued instructions from step t on page 52.
STEP 3 (RPT2 selection)
y Push and hold [UR](DR) for 1 sec. to enter the linked re-
peater (RPT2) selection.
u Rotate [DIAL] to select the preset gateway repeater “GW.”
• Only repeaters that have programmed same gateway repeater
appear.
[DIAL]
i Push [UR](DR) to exit the linked repeater selection.
o Push [PTT] to transmit; release to receive.

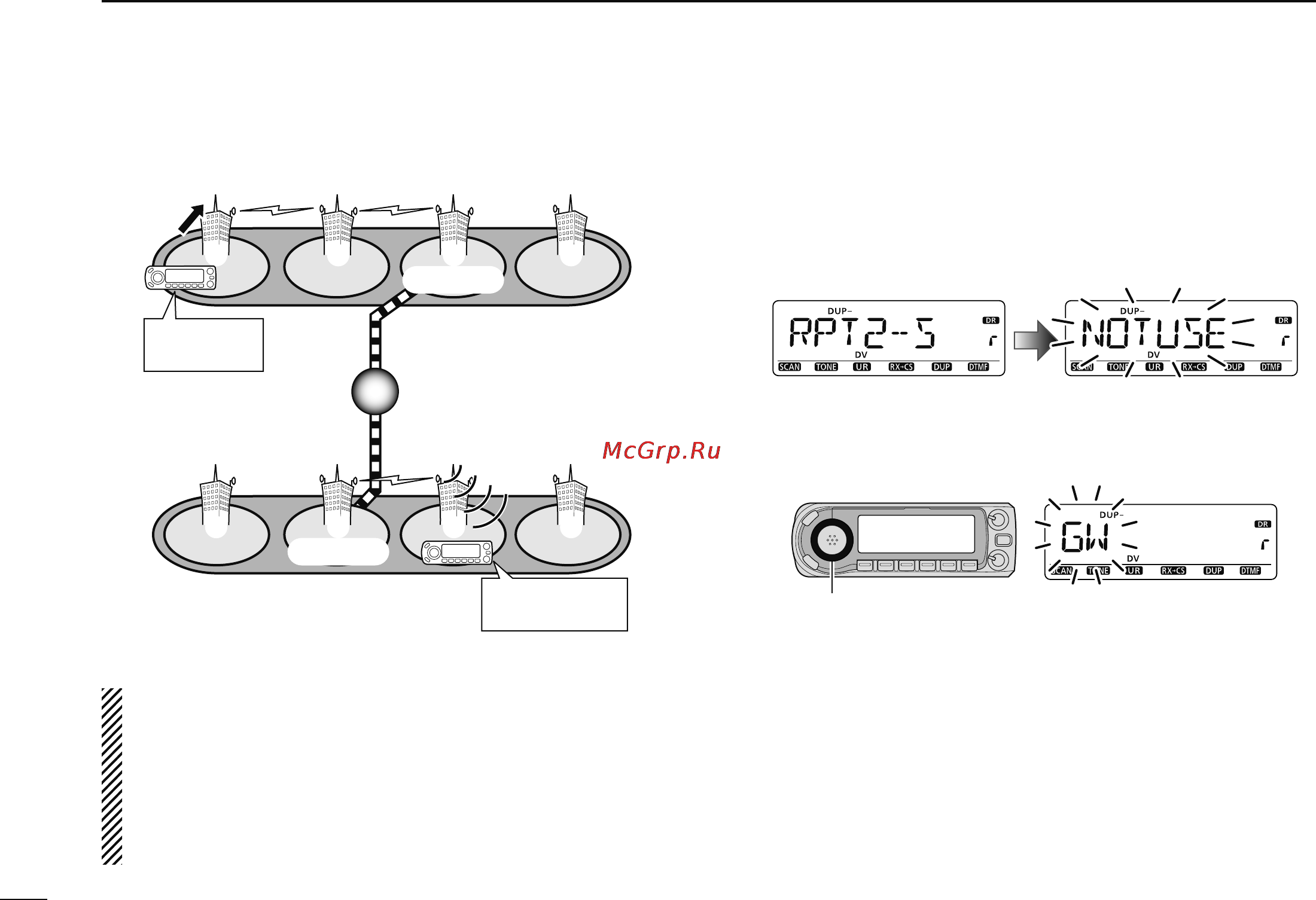

D Calling a specific station in another zone (Different zone call)
