SCAN OPERATION
Memory bank scan
IMPORTANT: To perform memory bank scan, 2 or more
bank channels MUST be programmed, otherwise the scan
will not start.
q Select memory bank mode.
± Select the memory mode with [M/CALL].
± Enter the bank selection state with [BAND].
±
Set the desired bank (A to Z) with [DIAL], then push
[BAND]
.
w Set the squelch level.
e Push and hold [SCAN](VFO/MHz) for 1 sec. to enter the
scanning type selection.
[DIAL] [SCAN]

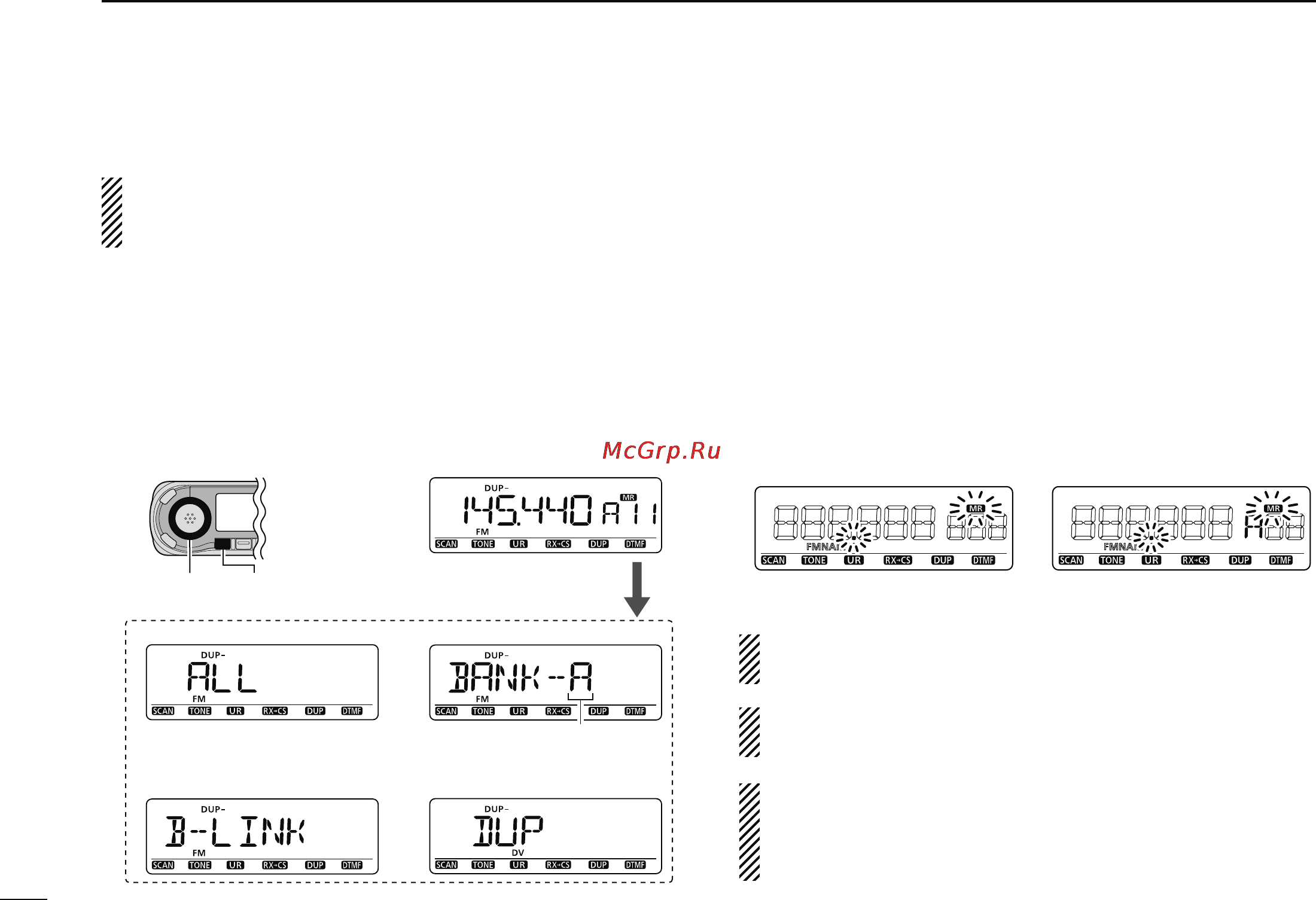

All bank scan
Bank link scan
Bank scan
Duplex scan
Selectable from “A” to “Z”
if programmed.
Push and hold [SCAN] for
1 sec.,then rotate [DIAL].
r Rotate [DIAL] to select the desired scanning type.
• “ALL” for all bank scan; “B-LINK” for bank link scan or “BANK-x”
for bank scan (
x= A to Z; programmed bank groups are only
displayed.), “DUP” (appears only when duplex operation is set)
for duplex scan
, “TONE” (appears only when the subaudible tone,
tone squelch or DTCS squelch is set) for tone scan.
t Push [SCAN](VFO/MHz) to start the scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction. This also
causes the transceiver to resume scanning.
• Push [SCAN](VFO/MHz) to stop the scan.
During all bank/bank link scan
During bank scan
The bank-link setting can be changed in the SCAN set
mode. See page 124 for details.
Duplex scan function: Repeatedly scans two frequencies
(transmission/reception) during duplex scan operation.
Memory bank scan skips any memory channels in the se-
lected bank that are set to “SKIP” or “PSKIP.”
Memory bank scan stops at the first channel when all
channels in a bank are set to “SKIP” or “PSKIP.”
