93
7
MEMORY/CALL CHANNELS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

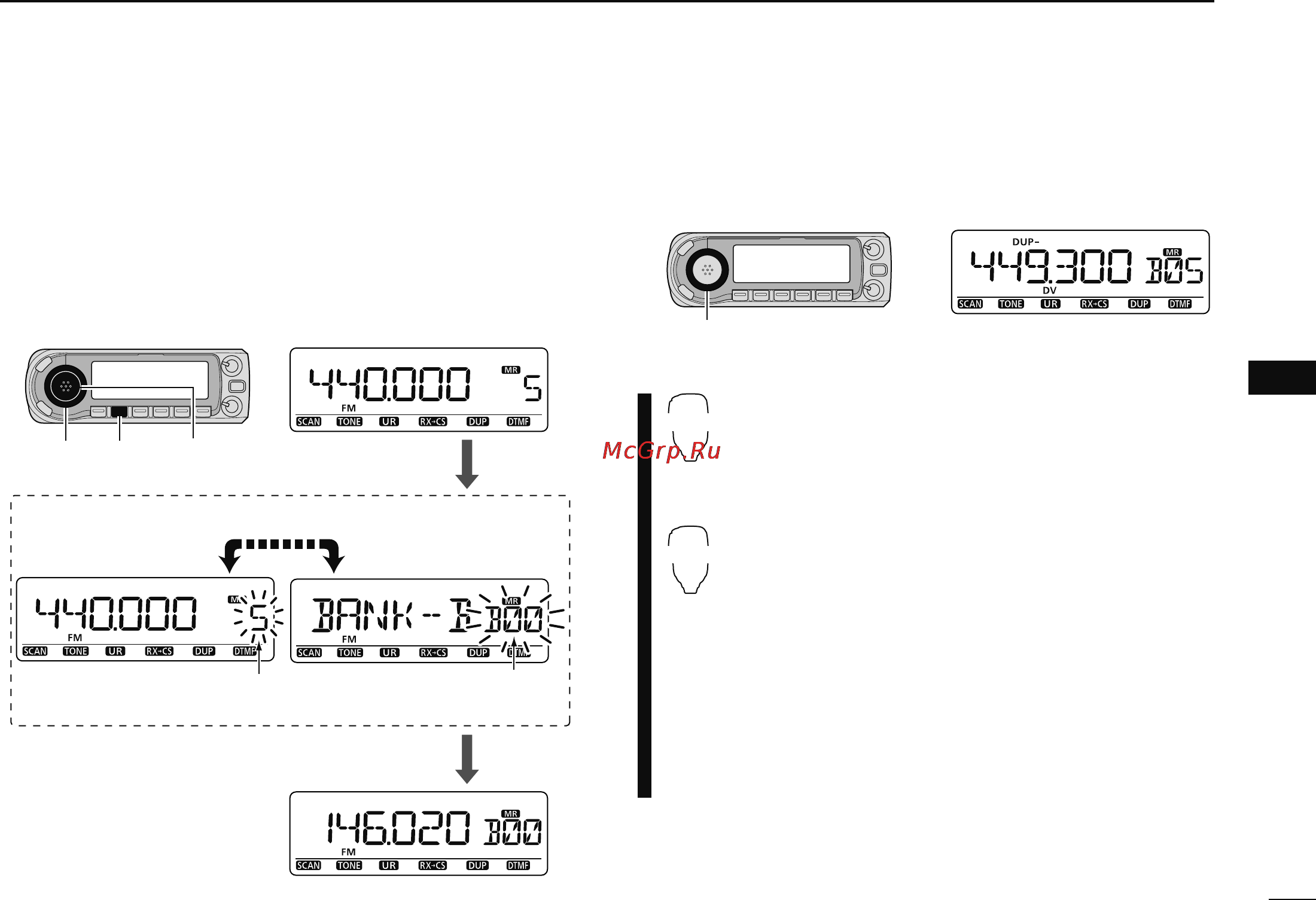

Memory bank selection
q Push [M/CALL] several times to select the memory mode.
w Push
[BAND]
to enter the bank selection state.
e Rotate [DIAL] to select the desired memory bank group,
then push
[BAND]
again.
• Only programmed banks are displayed.
• Also regular memory channel can be selected.
r Rotate [DIAL] to select the bank channel.
• Only programmed banks are displayed.
BANK
2/3
z Push [MR/CALL] to select the memory mode, if
desired.
x Push [FUNC] then [
MONI 1(BANK)] to select
memory bank condition.
• Memory channel blinks
c Push [Y]/[Z] to select the desired bank, A to
Z.
• Only programmed memory bank can be selected.
v Push [CLR A(MW)] to set the bank.
• Bank initial and bank channel stops blinking.
b Push [Y]/[Z] to select the desired contents in
the bank.
n To return to regular memory condition, push
[FUNC], [
MONI 1(BANK)] then push [Z] several
times to select memory channel number indica-
tion.
[DIAL]
Regular memory channel
is displayed.
Bank channel is displayed.
Rotate [DIAL]
Push [BAND]
Push [BAND]
[DIAL] [M/CALL] [BAND]
