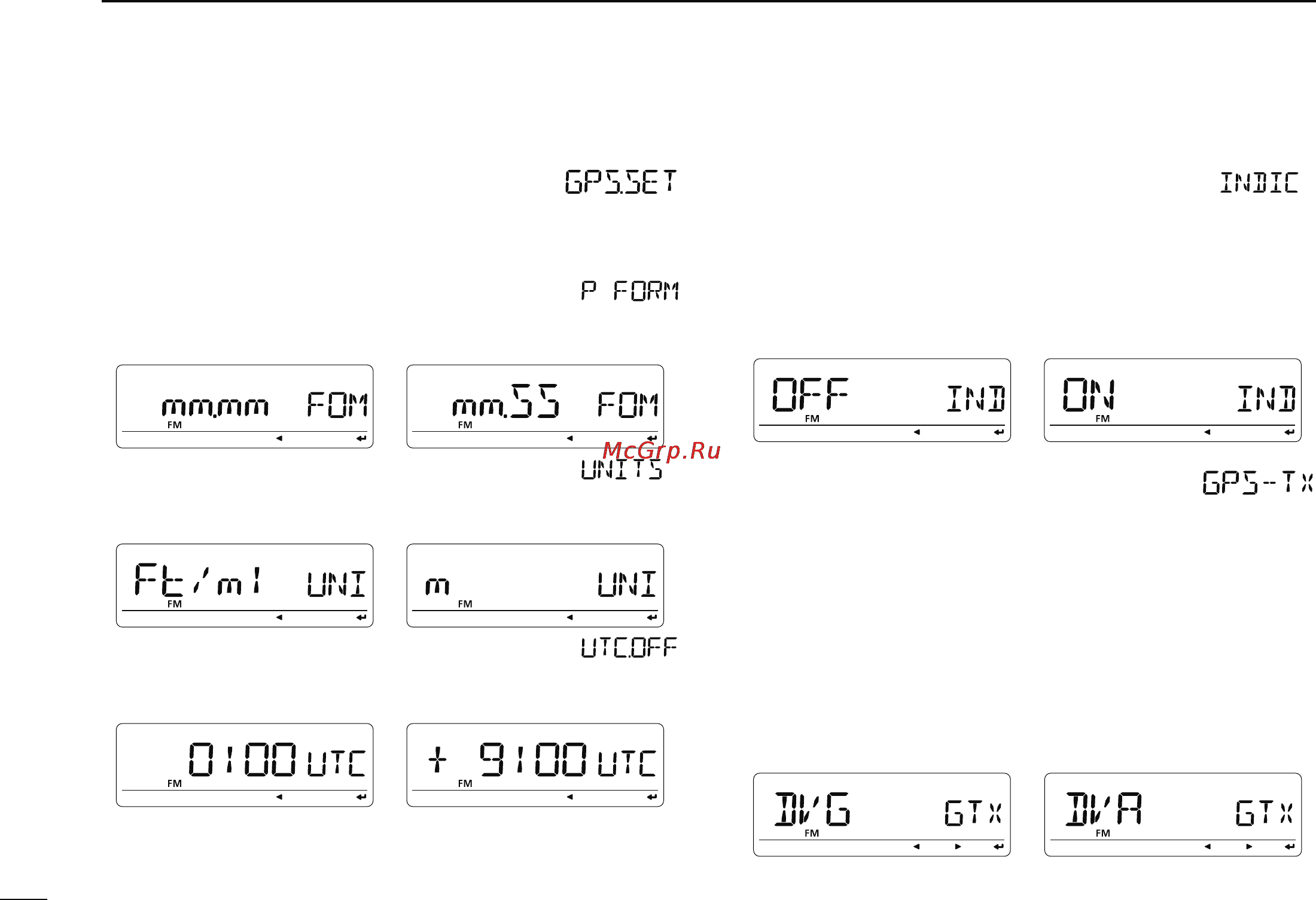

GPS mode items
D GPS set
The following individual settings are available in GPS set. Set
them to suit your GPS operation.
- Position format
Selects the displaying position format from “mm.mm” (default)
and “mm.SS.”
- Units
Selects display units for distance and elevation to “m” or “Ft/
ml.” (default : U.S.A. version; Ft/ml, Other versions; m)
- UTC offset
Sets time difference from UTC (Universal Time Coordinated)
from –12:00 to +12:00 range in 5 min. steps.
(default: 0:00)
- GPS indication
Sets the GPS indicator ON or OFF. (default : ON)
• OFF : “GPS” indicator does not appear.
• ON : “ GPS” indicator appears on the display when
a GPS receiver is connected and a valid po-
sition data is received; blinks when an invalid
data is received.
D GPS TX mode items
Sets the transmission of data from a connected GPS receiver
ON or OFF.
When the position information is received from a connected
GPS receiver and “GPS.ATX” (GPS Auto TX Timer) setting
(p. 141) is set to a specific time, the transceiver automati-
cally transmits the current position and message at the set
interval.
• OFF : Transmitting position data is disabled. (default)
• DVG : Transmitting position data in GPS mode.
• DVA : Transmitting position data in GPS-A mode.
