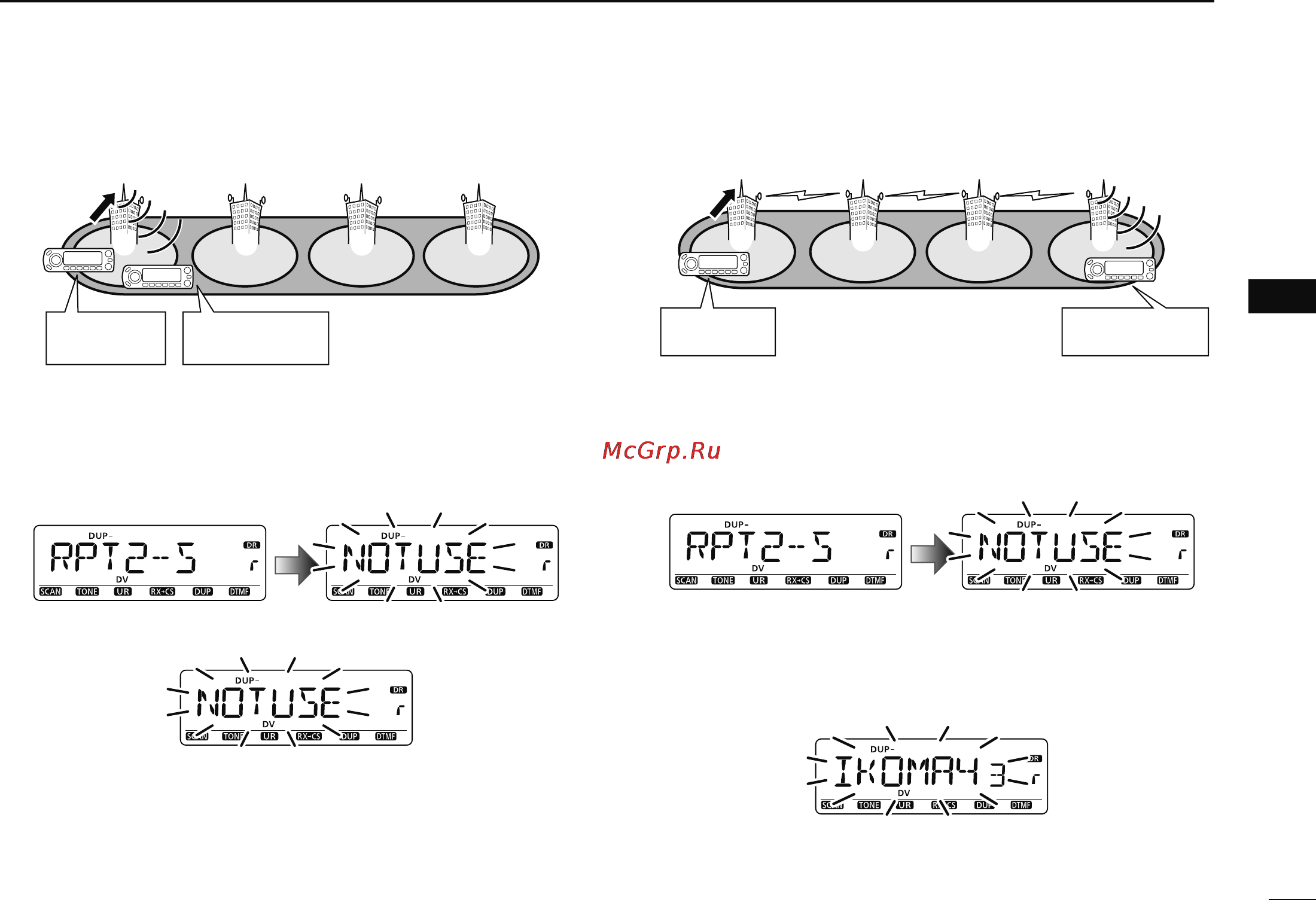

D Calling a specific station in the same area
(Area call)
MY call sign：
JA3YUA
Station call sign：
JG3YMK
Repeater q ： NARA43
(JP3YHL)
q w e r
Area
Zone
Continued instructions from step t on page 52.
STEP 3 (RPT2 selection)
y Push and hold [UR](DR) for 1 sec. to enter the linked re-
peater (RPT2) selection.
u Rotate [DIAL] to select “NOT USE.”
i Push [UR](DR) to exit the linked repeater selection.
o Push [PTT] to transmit; release to receive.
D Calling a specific station in the same zone
(Zone call)
MY call sign：
JA3YUA
Station call sign：
JG3YMK
Repeater q ： NARA43 (JP3YHL)
Repeater r ： IKOMA43 (JP3YHJ)
q w e r
Area
Zone
Continued instructions from step t on page 52.
STEP 3 (RPT2 selection)
y Push and hold [UR](DR) for 1 sec. to enter the linked re-
peater (RPT2) selection.
u Rotate [DIAL] to select the linked repeater in the same
zone.
• Only repeaters that have programmed same gateway repeater
appear.
i Push [UR](DR) to exit the linked repeater selection.
o Push [PTT] to transmit; release to receive.
