Icom ID-880H [30/196] Basic operation

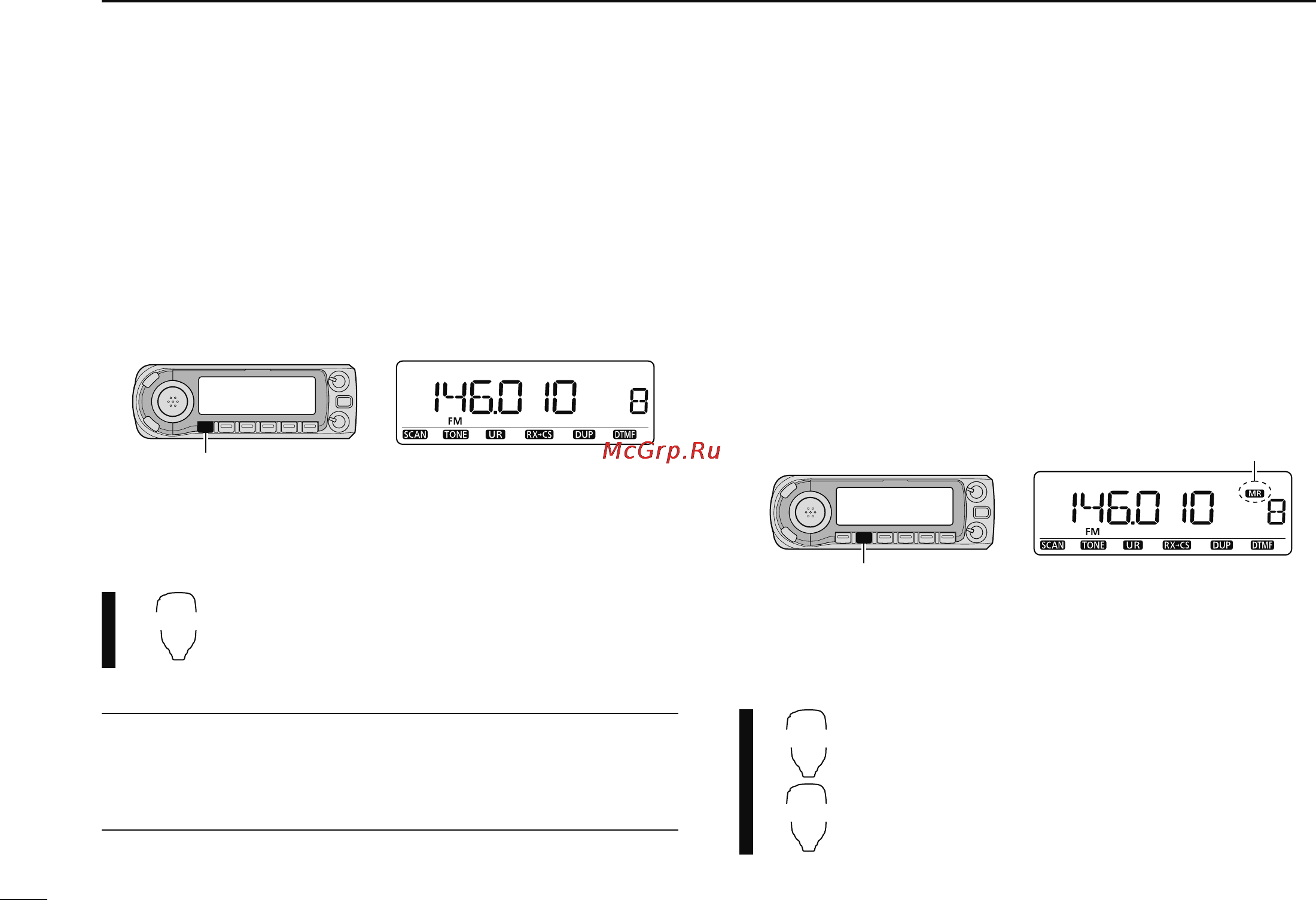

![Icom ID-880H [30/196] Basic operation](/views2/1074127/page30/bg1e.png)
12
2
BASIC OPERATION
D VFO mode
VFO mode is used to set the desired frequency.
± Push [VFO/MHz] to select the VFO mode.
• When the VFO mode is already selected, the digits to the right of
the 10 MHz will disappear. In this case, push [VFO/MHz] twice.
[VFO/MHz]
• VFO mode indication
VFO/LOCK
± Push [VFO/LOCK] to select the VFO mode.
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for both transmitting and receiving are generated
and controlled by the VFO.
D Memory mode
Memory mode is used for operation on the memory channels
which store programmed frequencies.
q Push [M/CALL] to select the memory mode.
• Push [M/CALL] several times to select Memory/Call/Weather*
channels in sequence. * Weather channels are selectable de-
pending on versions.
• “X” indicator appears when the memory mode is selected.
Appears
[M/CALL]
• Memory mode indication
w Rotate [DIAL] to select the desired memory channel.
• Only programmed memory channels can be selected.
• See p. 90 for memory programming details.
MR/CALL
Y/Z
z Push [MR/CALL] to select the memory
mode.
x Push [] or [] to select the desired mem-
ory channel.
