103
8
SCAN OPERATION
Scan edges programming
Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 0A/0B to 24A/24B, in memory channels.
q Push [VFO/MHz] to select the VFO mode.
w Set the desired frequency:
± Select the desired band with [BAND].
± Set the desired frequency with [DIAL].
± Program different frequencies in “11A” and “11B” re-
spectively.
± Set other data
(e.g. frequency offset, duplex direction, tone
squelch, etc.), if desired.
e Push [S.MW](MW) to enter the select memory write mode.
• “
” indication and memory channel number blink.
r Rotate [DIAL] to select the desired programmed scan
edge channel from 0A to 24A.
t Push and hold [MW](S.MW) for 1 sec.
• 3 beeps sound.
• The other scan edge channel “B,” 0B to 24B, is automatically
selected when continuing to push [MW](S.MW) after program-
ming.
y To program a frequency for the other pair of scan edges,
0B to 24B, repeat steps w and t.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
Push
and
hold
[MW]
for
1
sec.
to
program
[DIAL]
Rotate [DIAL] to select scan edge channel 4A.
VFO mode Enter select memory write mode.
Push [S.MW].
Channel 4A
Return to the VFO mode.

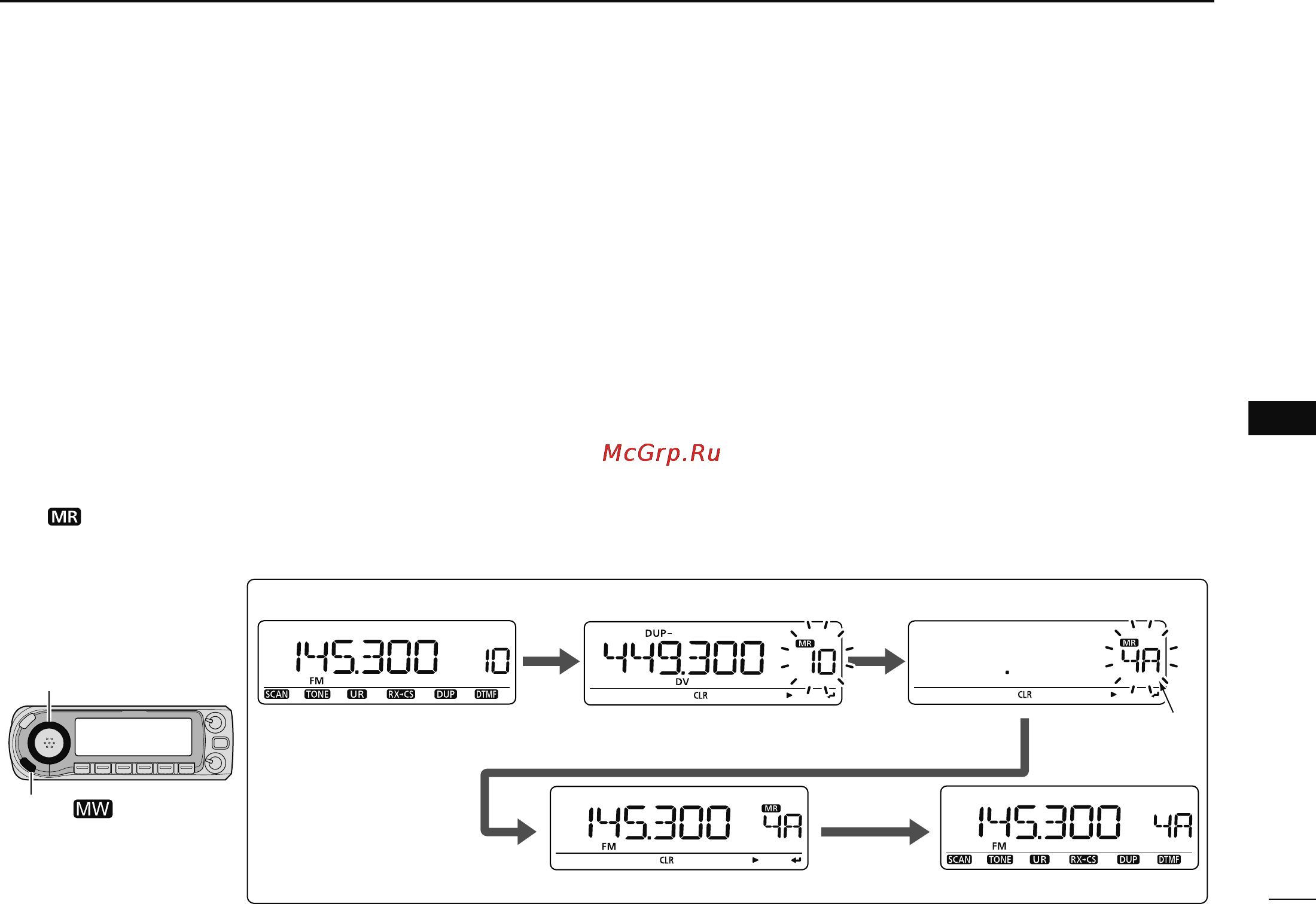

[EXAMPLE]: Programming 145.300 MHz into scan edges 4A.
[S.MW ]
8
