8
SCAN OPERATION
MW
z Push [MR/CALL] to select the memory mode.
x Select scan edge channel, 0A to 24A using
[Y]/[Z] or keypad.
• Push [ENT C(T-OFF)] then push only 1 or 2 appropri-
ate digit key(s), [VOLY 0(TONE-2)] to [SIMP 9(16-KEY-
L)] then push [VOLZ M(TONE-1)] or [SQLZ #(16KEY-L)]
to select scan edge channels. “M” and “#” can be used
for “A” and “B” respectively.
c Set the desired frequency in the VFO mode.
± Push [VFO/LOCK] to select the VFO mode.
± Set the frequency via the keypad or [Y]/[Z].
v Push [FUNC], then push and hold [
CLR A(MW)] for 1 sec.
to program.
• 3 beeps sound and the VFO is automatically selected.
• Memory channel number advances to the next scan edge chan-
nel, 0B to 24B when continuing to push [CLR A(MW)] after pro-
gramming.
b To program a frequency for the other scan edge channels,
repeat steps z to v.
D Programming scan edges via the microphone
Push
Push , then push
Push then for 1 sec. and continue to push
Push

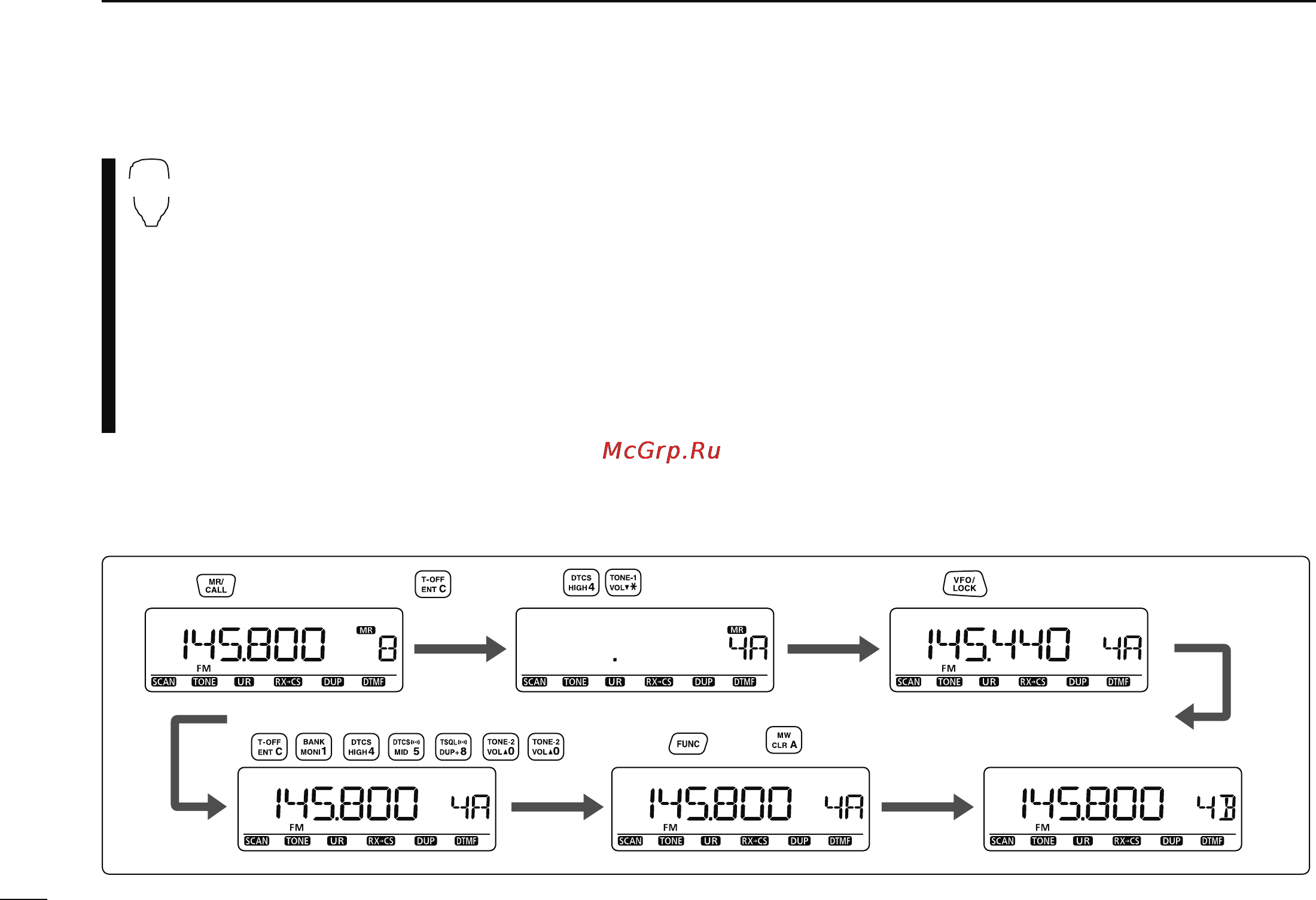

[EXAMPLE]: Programming 145.800 MHz into scan edges 4A.
Push
104
