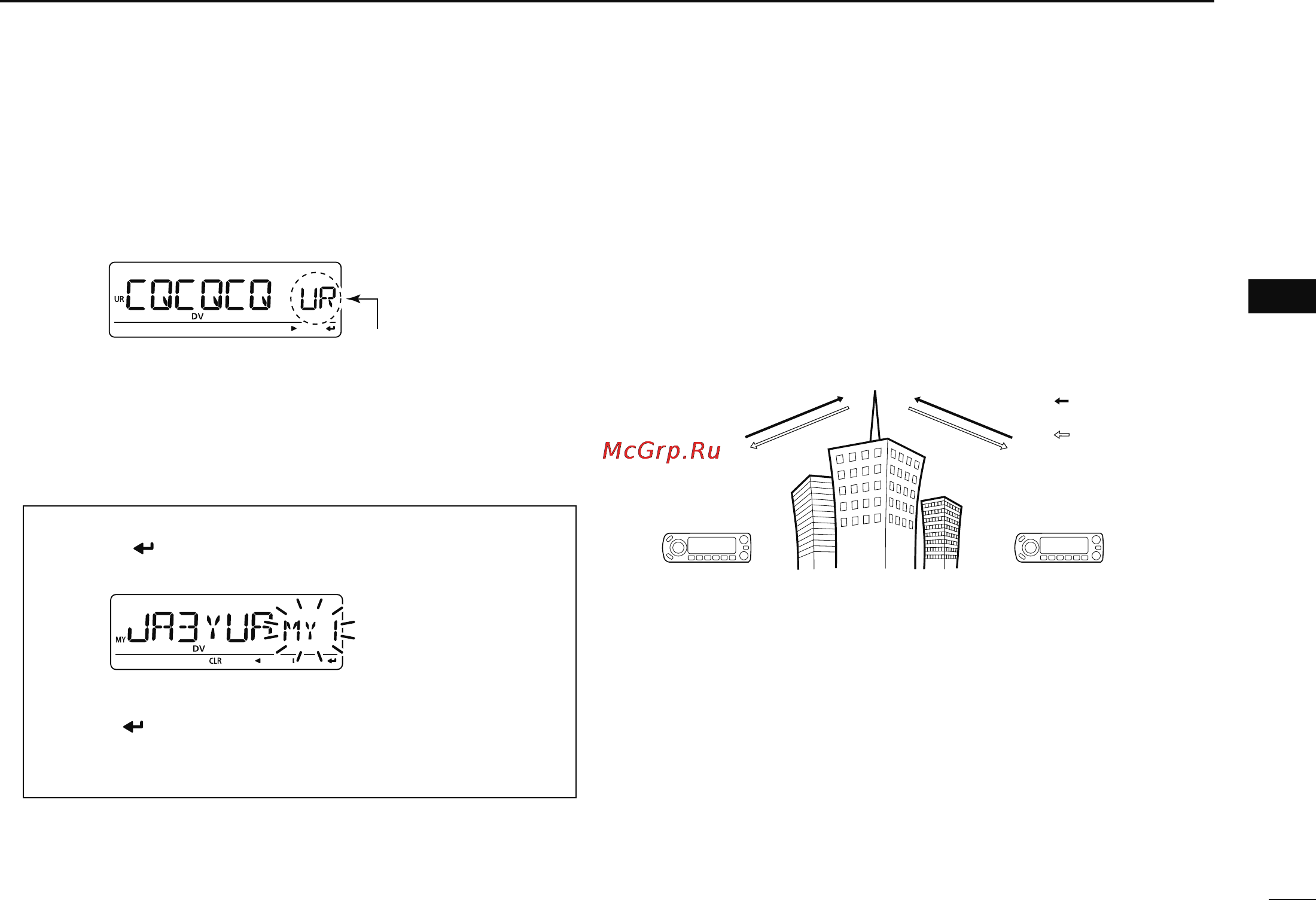

D Confirming current call sign
q Push [CS] to enter the current call sign mode.
• Current UR call sign is displayed.
Appears momentarily
w Rotate [DIAL] to select and confirm the other current call
sign.
• (“UR”), “R1,” “R2” and “MY” appears in sequence.
• When repeater call sign is selected, push [M/CALL] to toggle
the call sign and repeater name indications.
When changing the call sign
q Push [ ](MONI) to enter the call sign selection
mode.
w Rotate [DIAL] to select the desired call sign, then
push [
](MONI).
• When “UR,” “R1” or “R2” is selected, push [BAND] several
times to select the repeater call sign groups.
e Push [CS] again to return to frequency indication.
Receiving a D-STAR repeater
When the ID-880H receives a signal from a D-STAR repeater,
it receives four call signs: caller’s call sign, called call sign,
repeater call sign 1 (the repeater that caller accessed), and
repeater call sign 2 (the linked repeater). You can copy the
received call signs to current call signs, and you can also
reply to a call.
Station A Station B
Repeater
449.700 MHz
444.700 MHz
444.700 MHz
449.700 MHz
Uplink
Downlink
(transmitting freq.)
(receiving freq.)
• Presetting
q Set the desired repeater frequency.
(pgs. 14, 15)
• Select output power, if desired. (p. 18)
w Set the shift direction of the transmit frequency. (DUP– or
DUP; see p. 23 for details.)
• When the auto repeater function is in use (U.S.A. and Korean
versions only), this selection is not necessary. (p. 28)
e Select the DV mode. (p. 18)
r When signal is received, display indicates received call
sign.
See next page for information about received call signs.
