Icom ID-880H [50/196] D station call sign programming
![Icom ID-880H [50/196] D station call sign programming](/views2/1074127/page50/bg32.png)
32
4
DV MODE PROGRAMMING
u Repeat step r (at previous page) to program the desired
4 character note.
i Push [ ](MONI) to store the programmed call sign with
note and return to call sign screen.
o Push [MENU ] to return to frequency indication.
D Station call sign programming
Station call sign must be programmed to call a specific sta-
tion as well as for repeater operation in both digital voice and
low-speed data communications.

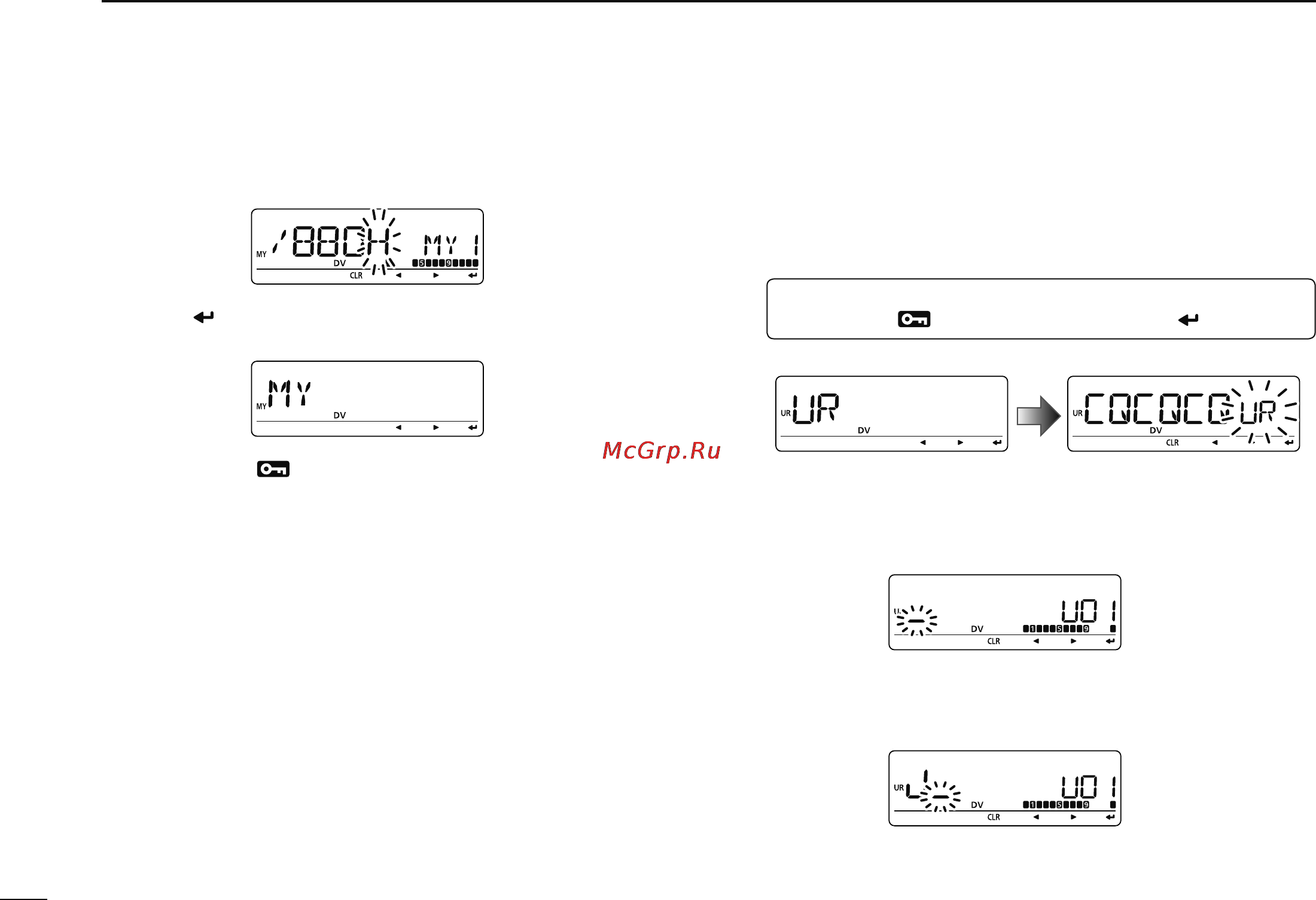

q Enter “UR” in call sign screen.
MENU ¶ CALL-S ¶ UR
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
• UR call sign screen is displayed.
w Rotate [DIAL] to select the desired call sign memory,
“U01” to “U60.”
e Push [](LOW) to enter call sign programming mode.
• The 1st digit blinks.
r Rotate [DIAL] to select the desired character or code.
• Push [](LOW) or [](CS) to move the cursor right or left, re-
spectively.
