I
QUICK REFERENCE GUIDE
Installation
D Precaution — magnets
R CAUTION
Magnets are used for the controller’s attachment to a metal
object.
NEVER attach the controller on the main unit’s top cover,
particularly around the internal speaker grill. It may cause the
contents of the CPU and memory device to be deleted.
NEVER put the controller near a clock, television set (CRT
type), magnetic compass or any magnetic/IC cards, credit
cards, etc. The magnets may cause the products to malfunc-
tion or may erase the contents of magnetic storage devices.
Please note that the controller may detach and fall with im-
pact or vibration.
D Installation methods

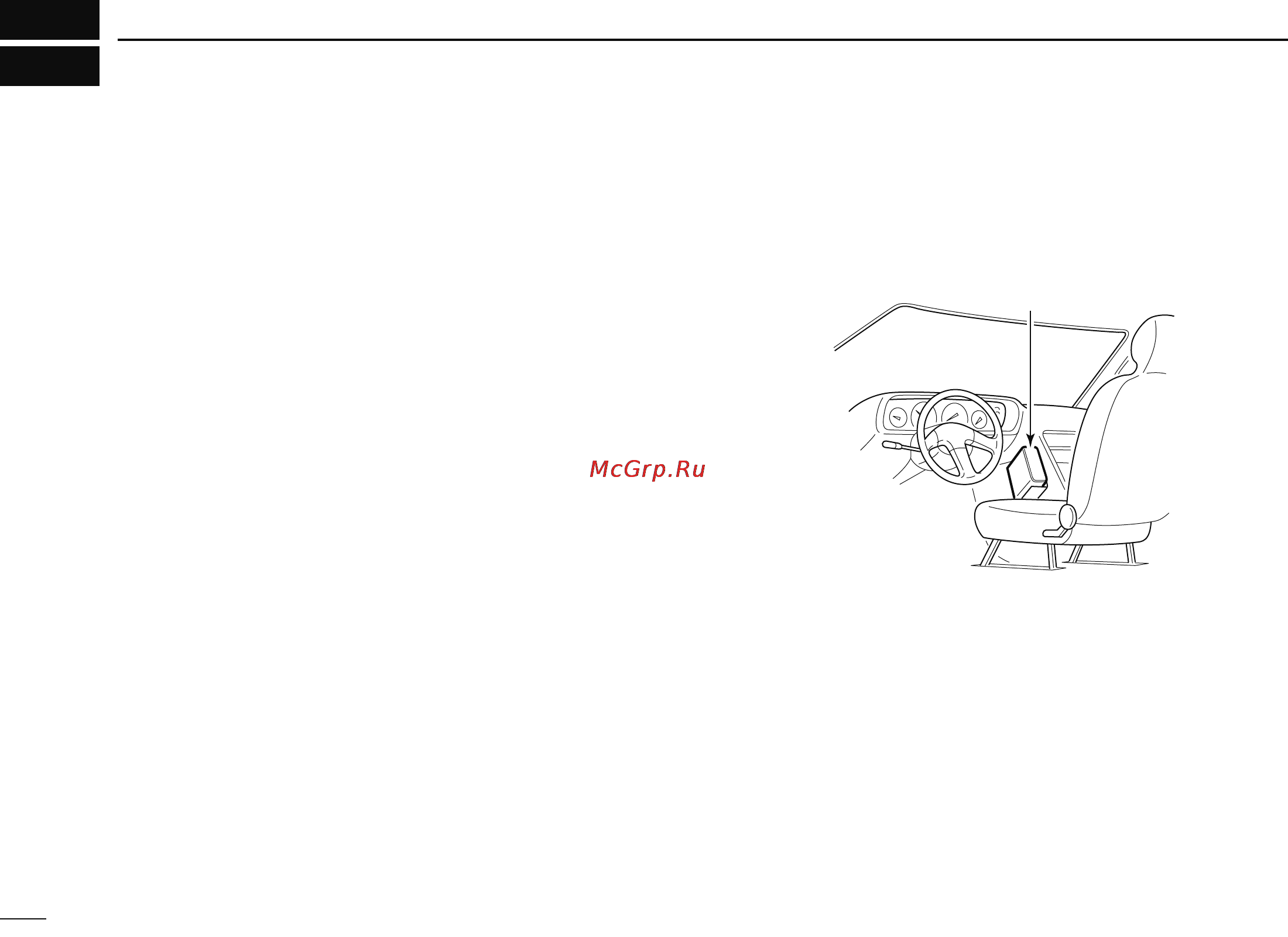

• Single body installation
Transceiver
• The supplied mounting bracket can be used for the main
unit installation.
