Main unit
q e r tw
y

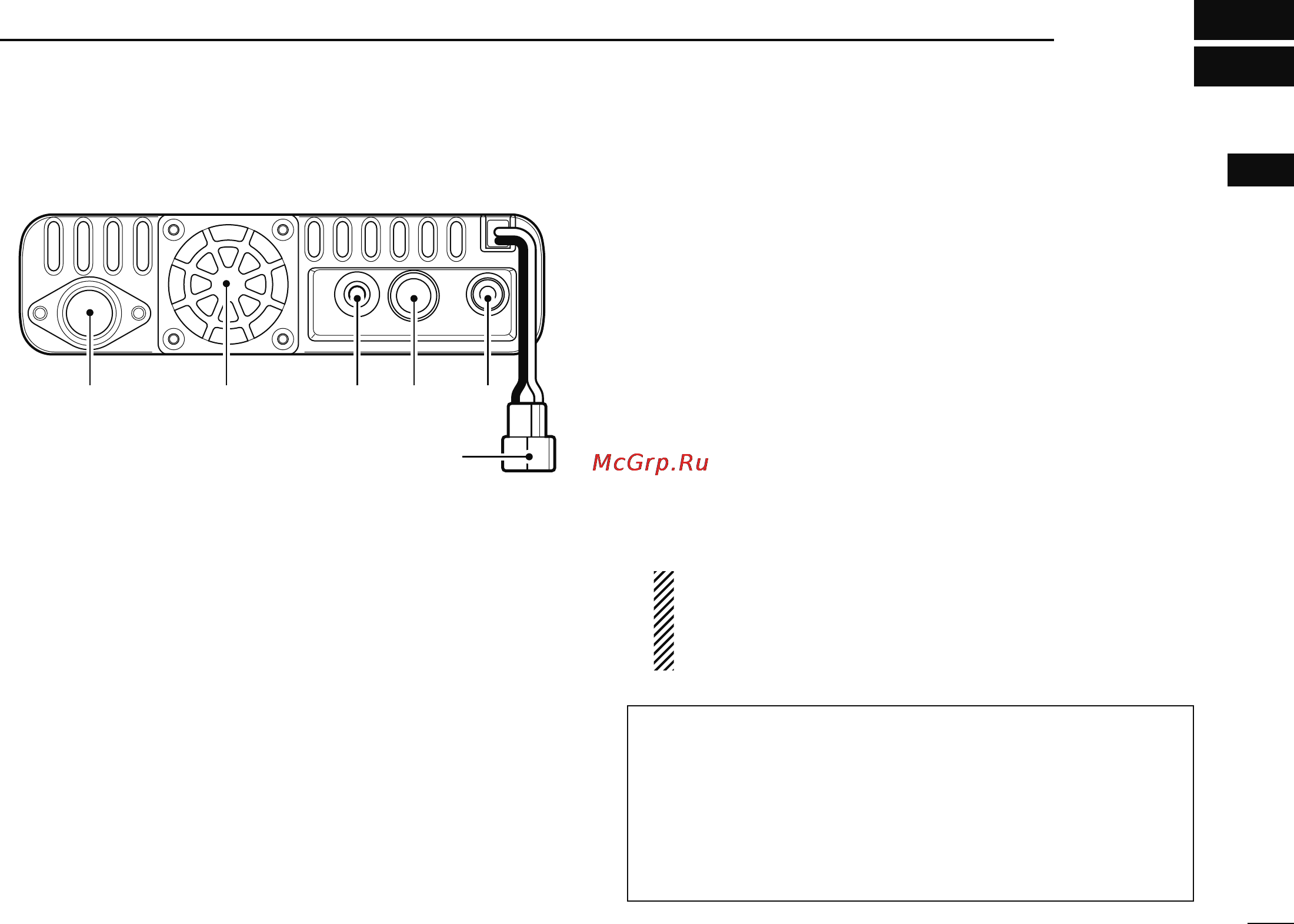

Rear view
q ANTENNA CONNECTOR [ANT] (p. VII)
Connects a 50 Ω antenna with a PL-259 connector and a
50 Ω coaxial cable for transmission and reception.
w COOLING FAN
Rotates while transmitting.
Also rotates while receiving depending on the setting in
the FUNC set mode (SET).
(p. 129)
e DATA JACK [DATA]
± Connect a PC through the optional data communication
cable OPC-1529R, for low-speed data communication
in the DV mode or data cloning with the cloning soft-
ware CS-80/880 (free download).
(pgs. 70, 156)
± Connect a GPS receiver through the optional data
communication cable OPC-1529R, for GPS operation.
(p. 73)
r PACKET JACK [PACKET] (pgs. 157, 158)
Connects a TNC (Terminal Node Controller), etc. for data
communications. The transceiver can support 1200/9600
bps packet communication
(AFSK/GMSK).
t EXTERNAL SPEAKER JACK [SP]
± Connects an 8 Ω speaker.
• Audio output power is more than 2.0 W.
± Connect an optional cloning cable OPC-478/478UC or
OPC-474 for data cloning.
(pgs. 155, 156)
y POWER RECEPTACLE [DC13.8V]
Accepts 13.8 V DC ±15% with the supplied DC power
cable.
NOTE: DO NOT use a cigarette lighter socket as a
power source when operating in a vehicle. The plug
may cause voltage drops and ignition noise may be su-
perimposed onto transmit or receive audio.
ANTENNA INFORMATION
For radio communications, the antenna is of critical impor-
tance, to maximize your output power and receiver sensitiv-
ity. The transceiver accepts a 50
Ω antenna and a Voltage
Standing Wave Ratio (VSWR) of 1.5:1 or less. High SWR
values not only may damage the transceiver but also lead
to TVI or BCI problems.
