81
6
GPS/GPS-A OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

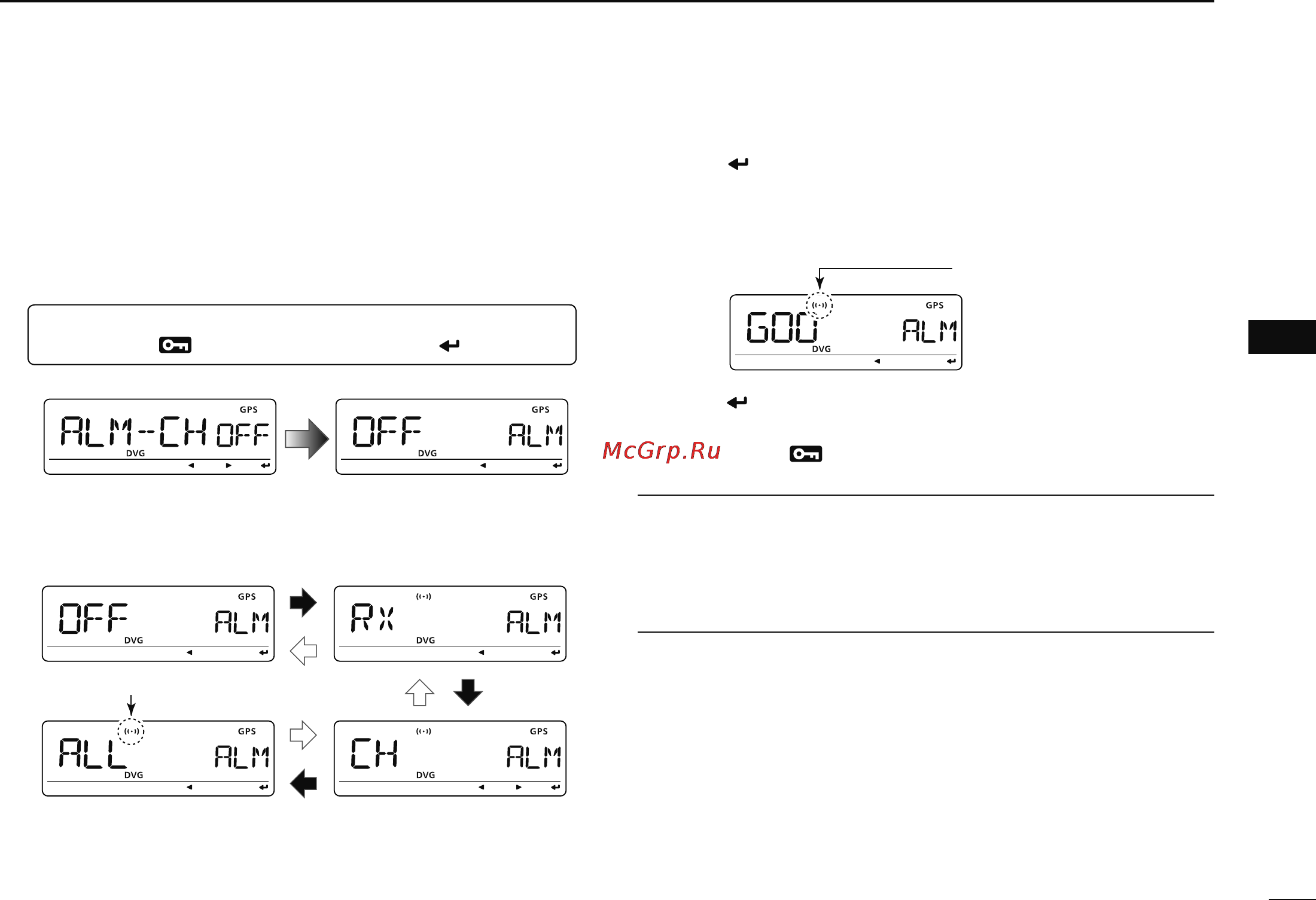

D GPS alarm setting
GPS alarm sounds when your own position is close the spec-
ified position. This function can be set to use information from
the received channel, a specified GPS memory channel or all
GPS memory channels.
q Enter “ALM-CH” in GPS mode.
MENU ¶ GPS ¶ ALM-CH
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
• Alarm setting screen is displayed.
w Rotate [DIAL] to select “RX,” “CH,” “ALL” or “OFF.”
• “RX”, “ALL”, one of the memory channel can be selected.
• Skip next step
e
when RX, ALL or OFF is selected.
Alarm mark appers.
e Push [ ](MONI), then rotate [DIAL] to select the desired
memory channel.
• Memory name or channel number appears when the channel
is selected.
Alarm mark appers.
r Push [ ](MONI) to set the alarm function and return to
ALM-CH (GPS memory) screen.
t Push [MENU
] to return to frequency indication.
For your information!
• When “ALL” is selected in step w, the alarm function de-
pends on “ALM1” setting in GPS mode (p. 84).
• When “RX” or “CH” is selected in step w, the alarm function
depends on “ALM2” setting in GPS mode (p. 85).
