MENU SCREEN OPERATION

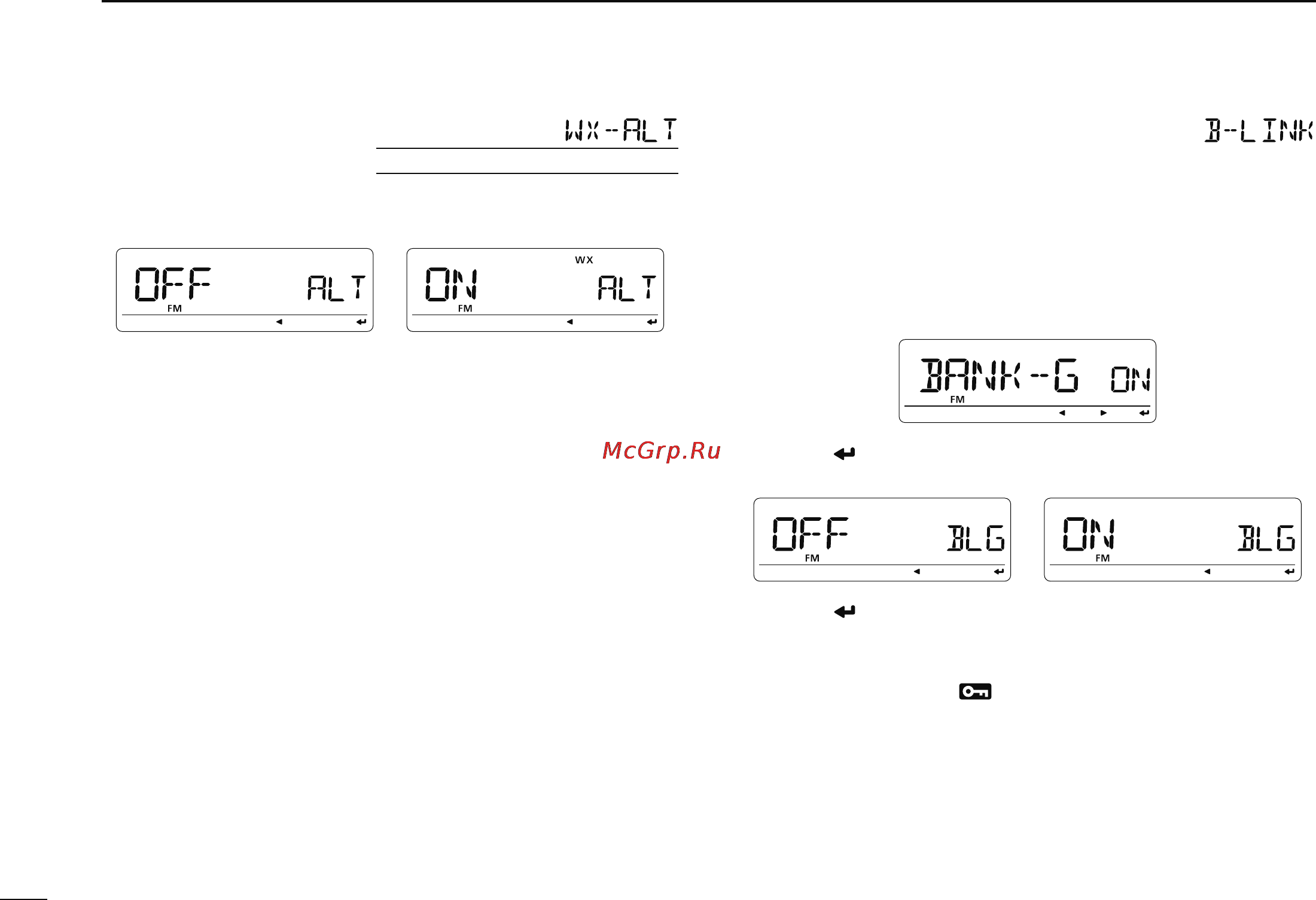

D Weather alert
USA/CHN/EXP versions only
Turns weather alert function ON or OFF.
(p. 162)
(default: OFF)
D Memory bank link function
Sets the memory bank link function ON or OFF (default). The
link function provides continuous bank scan, scanning all
contents in the selected banks during bank scan.
• Bank link setting
q Rotate [DIAL] to select the bank that you want to
change.
w Push [ ](MONI) to enter bank setting.
e Rotate [DIAL] to select the setting.
r Push [ ](MONI) to set and return to the BANK selection
screen.
t Rotate [DIAL]
to select next bank and repeat steps w to
r, or push [MENU
] to exit the MENU screen opera-
tion.
