OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

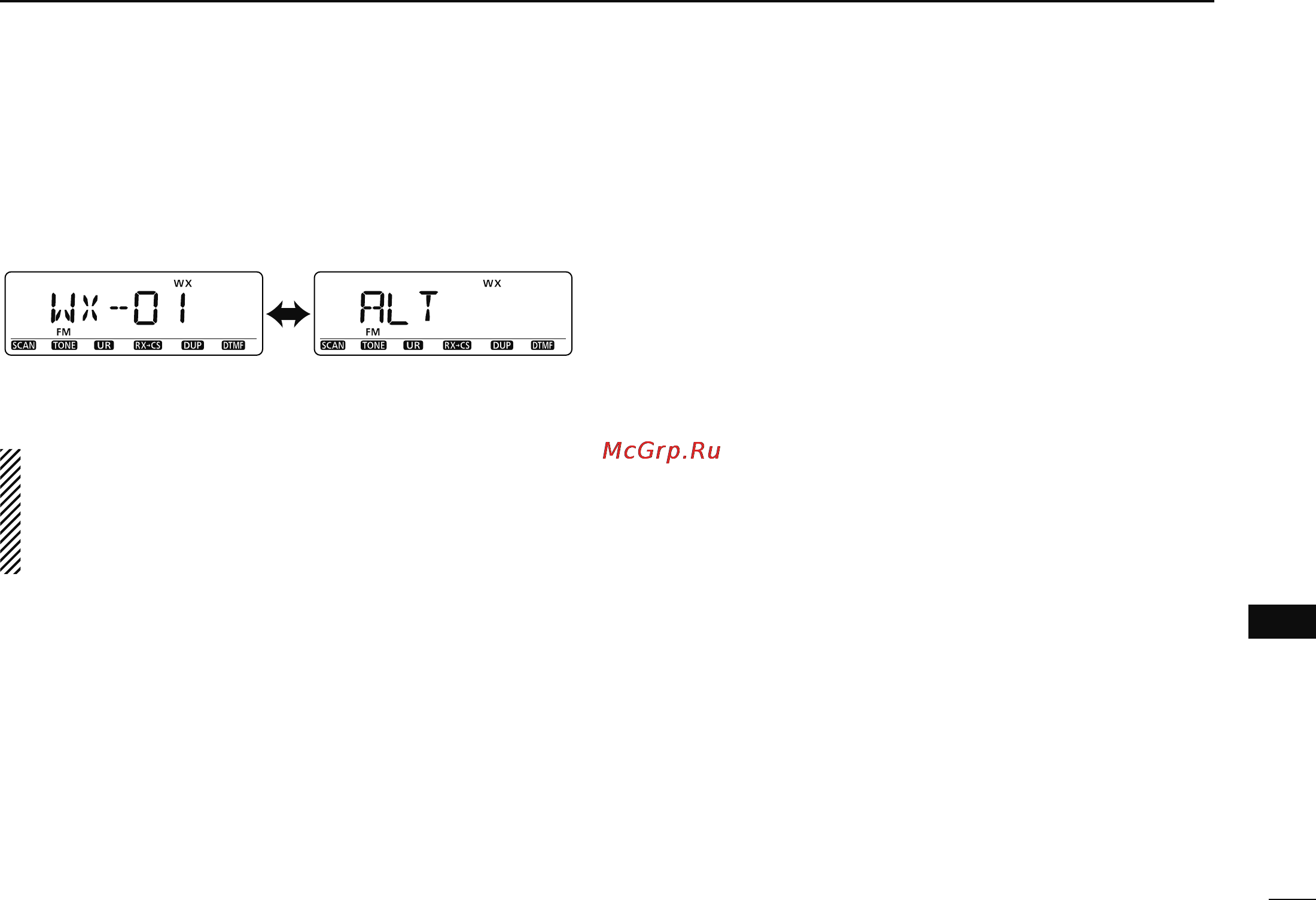

y When the alert is detected, a beep sounds and the follow-
ing indication is displayed.
The display shows above indications alternately.
u Turn the weather alert function OFF in SCAN set mode.
NOTE: While receiving a signal on a frequency other than
the weather alert frequency, the receiving signal will be
interrupted momemtarily appoximately every 5 sec. when
the Weather alert function is ON. These interruptions
cease when the Weather alert function is turned OFF.
