3 - 42
INSP
ADJ
STEERING HEAD INSPECTION AND ADJUSTMENT
2. Inspect:
● Bearing free play
Exist play → Replace.
EC36U013
STEERING HEAD INSPECTION AND
ADJUSTMENT

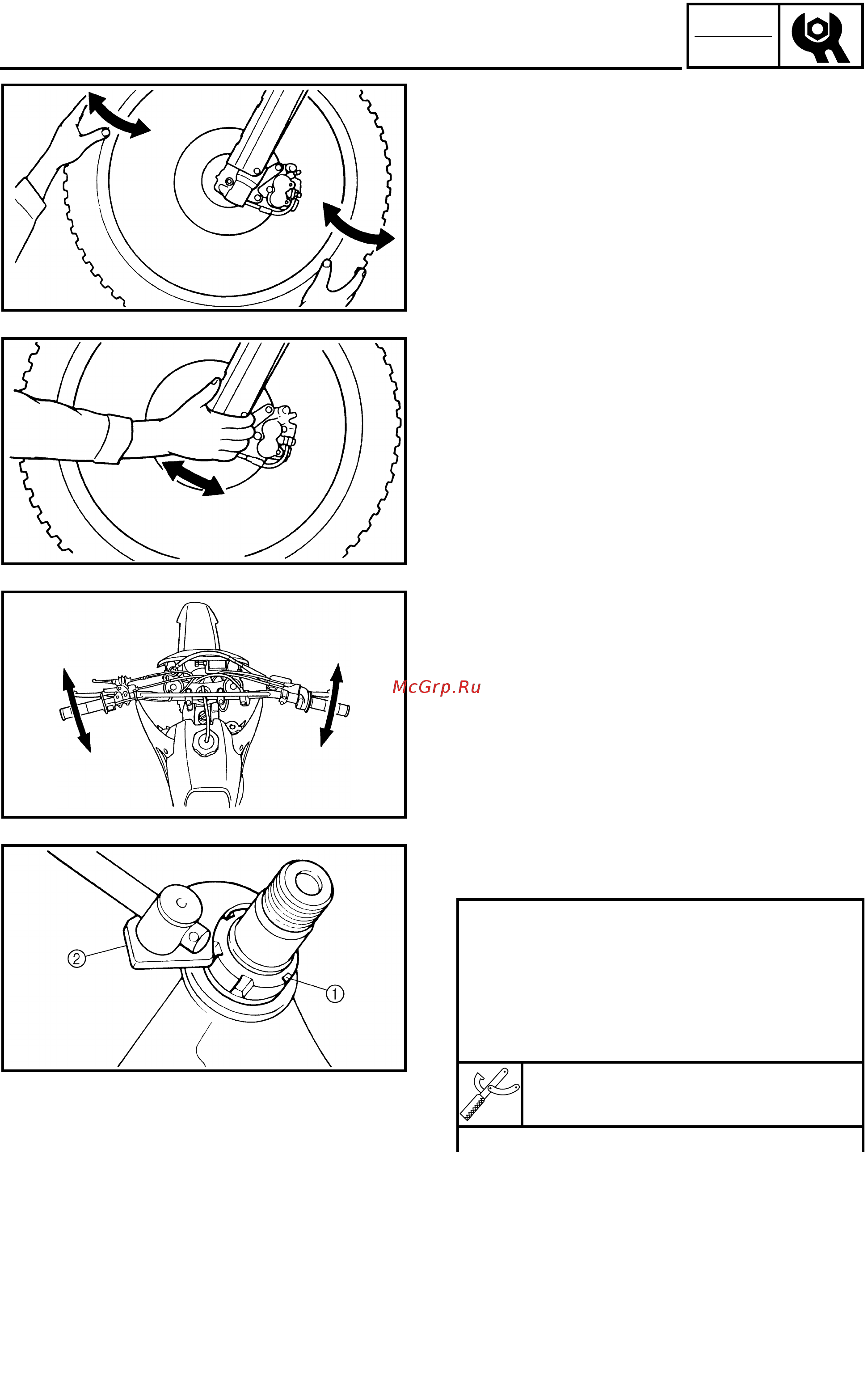

1. Elevate the front wheel by placing a suit-
able stand under the engine.
2. Check:
● Steering stem
Grasp the bottom of the forks and gen-
tly rock the fork assembly back and
forth.
Free play → Adjust steering head.
3. Check:
● Steering smooth action
Turn the handlebar lock to lock.
Unsmooth action → Adjust steering ring
nut.
4. Adjust:
● Steering ring nut
Steering ring nut adjustment steps:
● Remove the number plate.
● Remove the handlebar and handlebar
upper bracket.
● Loosen the steering ring nut 1 using the
steering nut wrench 2.
Steering nut wrench:
YU-33975/90890-01403
