Yamaha WR250F 2003 [279/304] Throttle position sensor system
![Yamaha WR250F 2003 [279/304] Throttle position sensor system](/views2/1012986/page279/bg117.png)

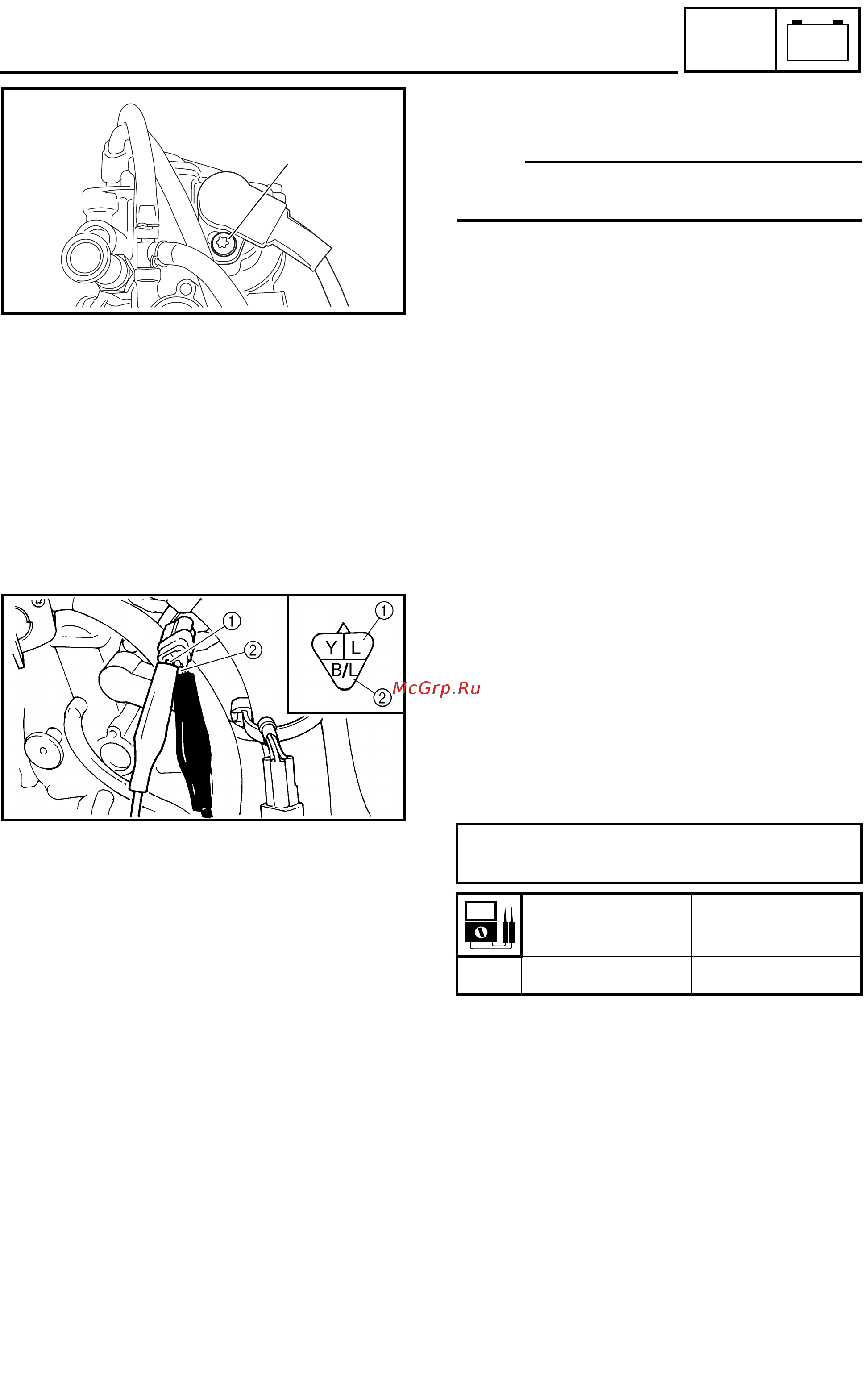

6 - 11
– +
ELEC
9. Tighten:
● Screw (throttle position sensor) 1
NOTE:
Tighten the screws (throttle position sensor)
using the T25 bit.
1
10. Stop the engine.
THROTTLE POSITION SENSOR INPUT
VOLTAGE INSPECTION
1. Disconnect the throttle position sensor
coupler.
2. Start the engine.
3. Inspect:
● Throttle position sensor input voltage
Out of specification → Replace the CDI
unit.
Tester (+) lead → Blue lead 1
Tester (–) lead → Black/Blue lead 2
Throttle posi-
tion sensor
input voltage
Tester selector
position
4 ~ 6 V DCV-20
THROTTLE POSITION SENSOR SYSTEM
