Yamaha WR250F 2003 [295/304] Setting
![Yamaha WR250F 2003 [295/304] Setting](/views2/1012986/page295/bg127.png)
7 - 16
TUN
EC72P000

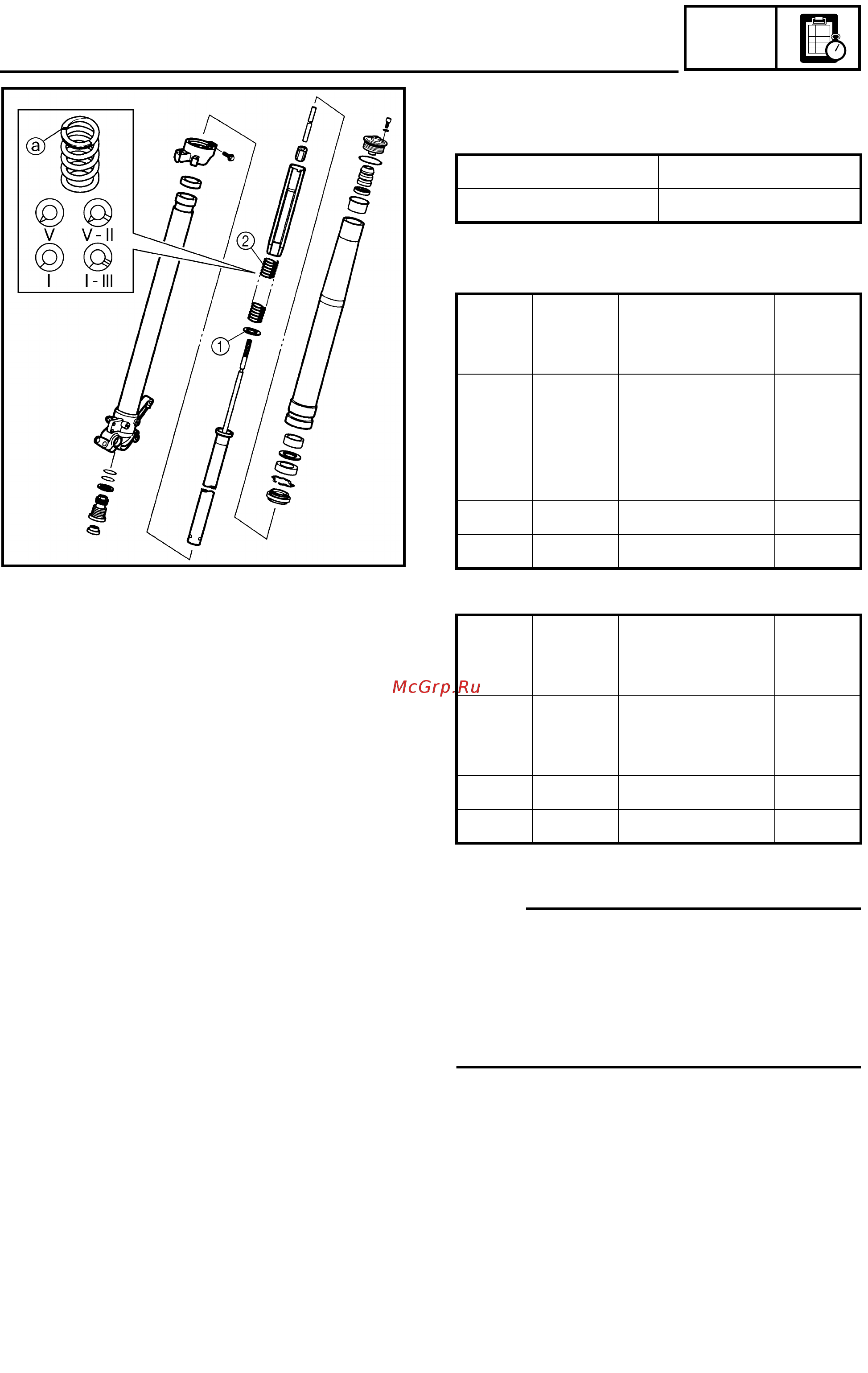

Front fork setting parts
● Adjustment washer 1
● Front fork spring 2
[Equal pitch spring]
[Unequal pitch spring]
* For EUROPE
NOTE:
● The unequal pitch spring is softer in initial
characteristic than the equal pitch spring and
is difficult to bottom out under full compres-
sion.
● The I.D. mark (slits) a is proved on the end
of the spring.
TYPE (thickness) PART NUMBER
T = 2.3 mm (0.09 in) 4SS-23364-L0
TYPE
SPRING
RATE
SPRING
PART NUMBER
I.D.
MARK
(slits)
SOFT
0.380
0.390
0.400
0.410
0.420
4SS-23141-10
4SS-23141-20
4SS-23141-30
4SS-23141-40
4SS-23141-50
I-I
I-II
I-III
I
II
STD 0.430 4XL-23141-L0 –
STIFF 0.440 4SS-23141-70 IIII
TYPE
SPRING
RATE
(approx.)
SPRING
PART NUMBER
I.D.
MARK
(slits)
SOFT
0.400
0.410
0.420
5ET-23141-20
5ET-23141-00
5ET-23141-30
V
V-I
V-II
*STD 0.430 5CU-23141-L0 –
STIFF 0.440 5ET-23141-40 V-IIII
SETTING
