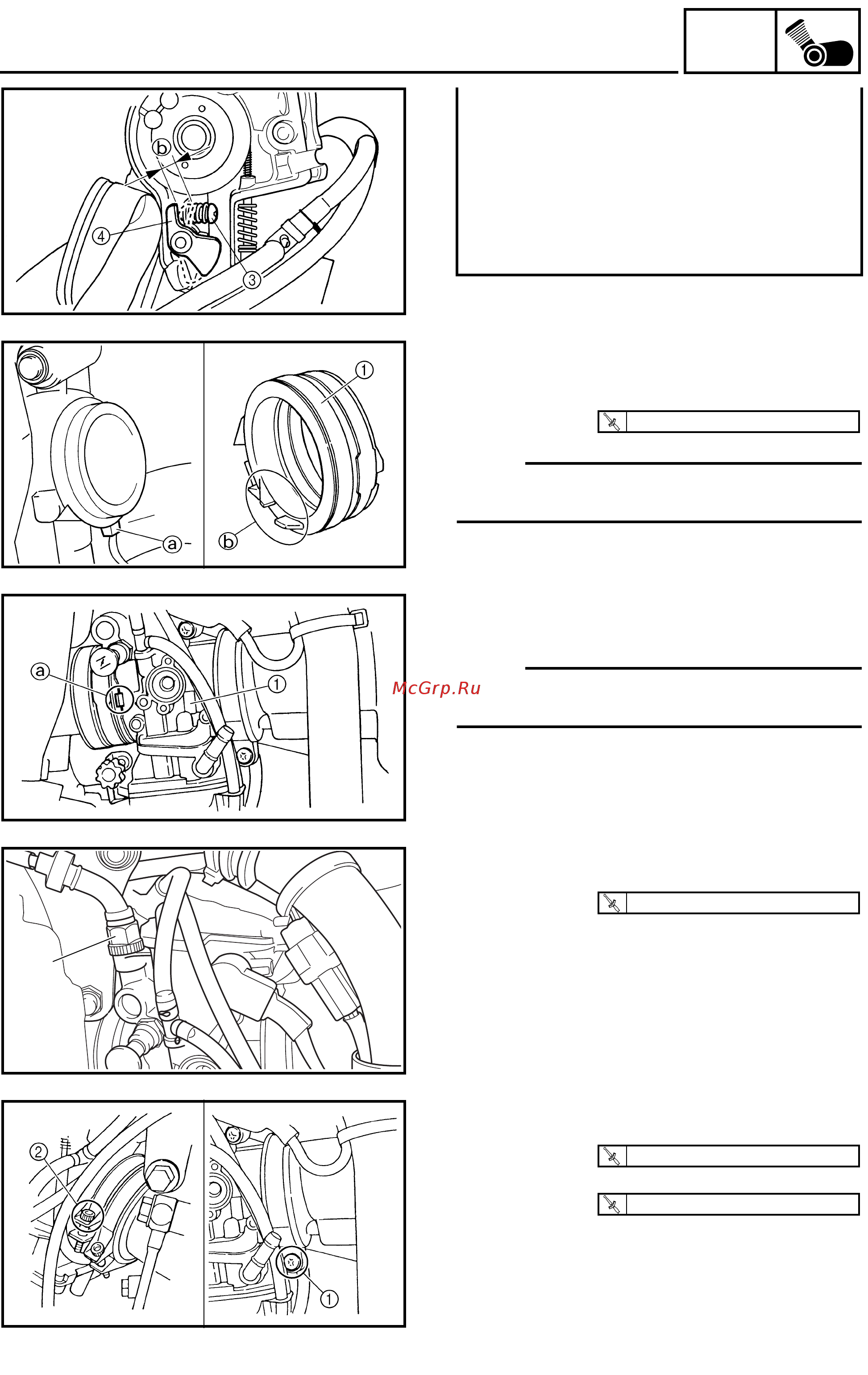

4 - 19
ENG
CARBURETOR
● Fully turn in the accelerator pump adjust-
ing screw 3.
● Check that the link lever 4 has free play
b by pushing lightly on it.
● Gradually turn out the adjusting screw
while moving the link lever until it has no
more free play.
Carburetor installation
1. Install:
● Carburetor joint 1
NOTE:
Install the projection a on the cylinder
between the carburetor joint slots b.
T
R
.
.
3 Nm (0.3 m · kg, 2.2 ft · lb)
2. Install:
● Carburetor 1
NOTE:
Install the projection a between the carburetor
joint slots.
3. Install:
● Hot starter plunger 1
1
T
R
.
.
2 Nm (0.2 m · kg, 1.4 ft · lb)
4. Tighten:
● Screw (air filter joint) 1
● Screw (carburetor joint) 2
T
R
.
.
3 Nm (0.3 m · kg, 2.2 ft · lb)
T
R
.
.
3 Nm (0.3 m · kg, 2.2 ft · lb)
