Yamaha WR250F 2003 [152/304] Cylinder and piston
![Yamaha WR250F 2003 [152/304] Cylinder and piston](/views2/1012986/page152/bg98.png)
4 - 48
ENG

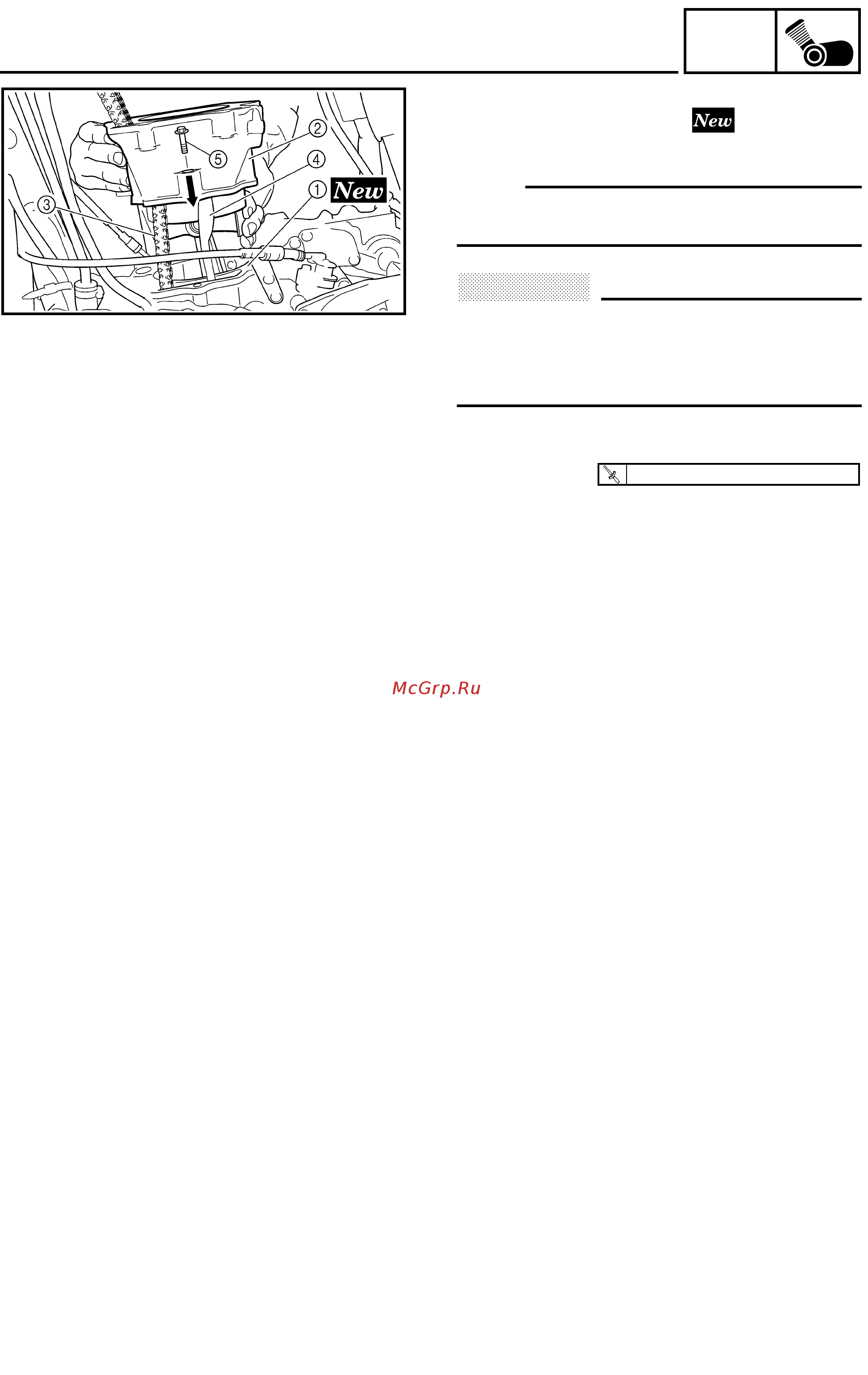

3. Install:
● Cylinder gasket 1
● Cylinder 2
NOTE:
Install the cylinder with one hand while com-
pressing the piston rings with the other hand.
CAUTION:
● Pass the timing chain 3 through the tim-
ing chain cavity.
● Be careful not to damage the timing chain
guide 4 during installation.
4. Install:
● Bolt (cylinder) 5
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
CYLINDER AND PISTON
