VALVES AND VALVE SPRINGS

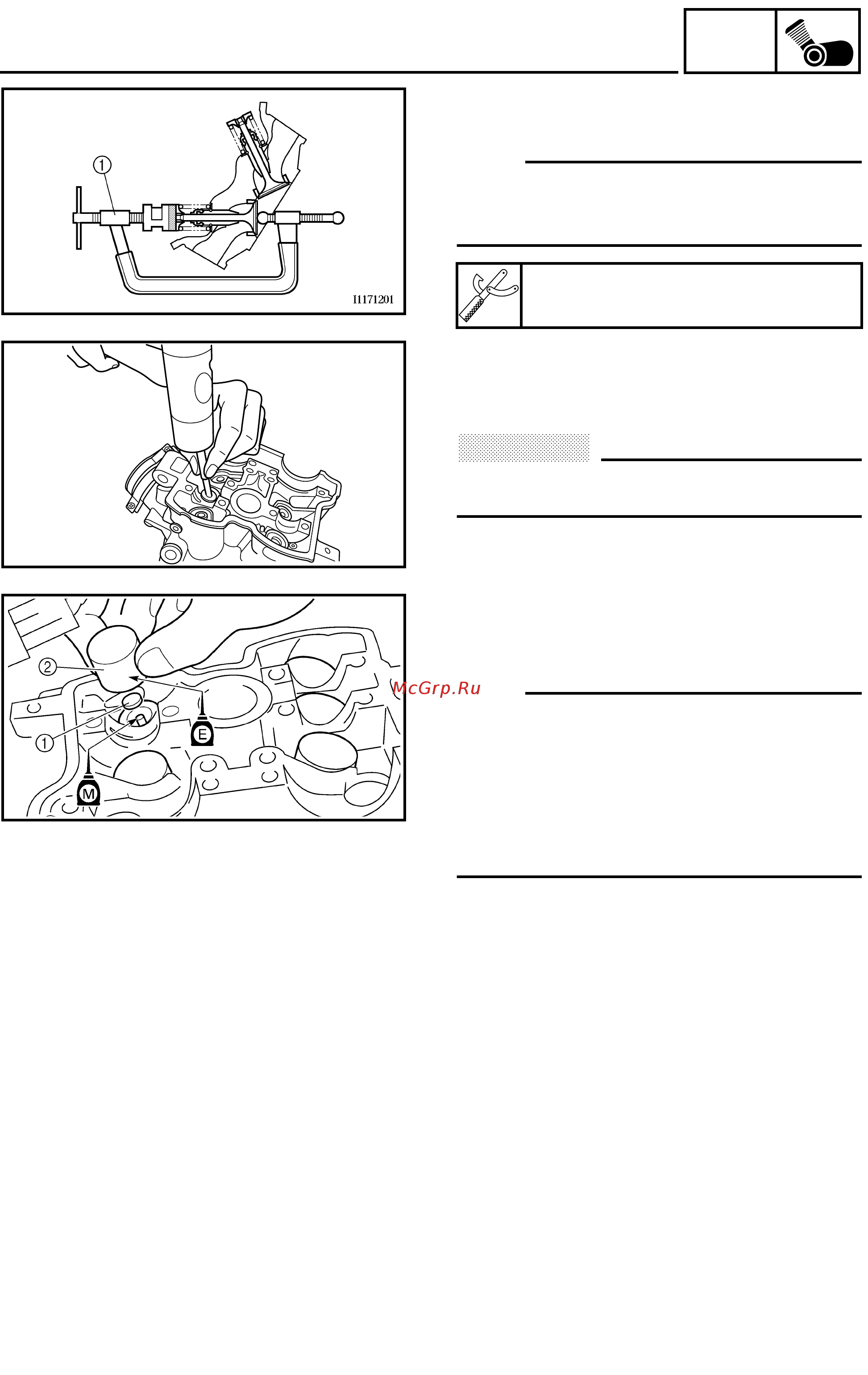

3. Install:
● Valve cotter
NOTE:
While compressing the valve spring with a
valve spring compressor 1 install the valve
cotters.
4. To secure the valve cotters onto the
valve stem, lightly tap the valve tip with a
piece of wood.
CAUTION:
Hitting the valve tip with excessive force
could damage the valve.
Valve spring compressor:
YM-4019/90890-04019
5. Install:
● Adjusting pad 1
● Valve lifter 2
NOTE:
● Apply the molybdenum disulfide oil on the
valve stem end.
● Apply the engine oil on the valve lifters.
● Valve lifter must turn smoothly when rotated
with a finger.
● Be careful to reinstall valve lifters and pads
in their original place.
