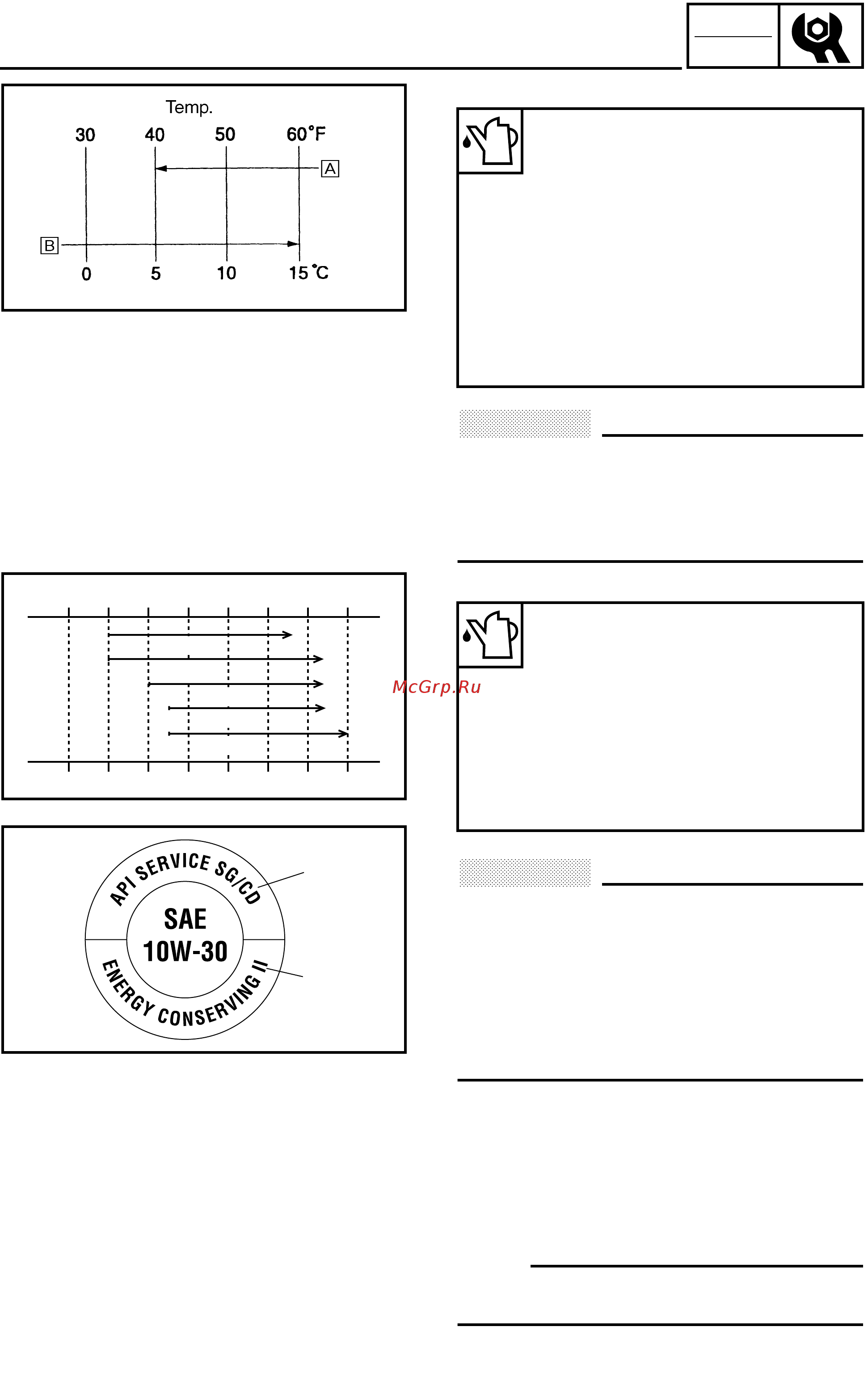

3 - 14
INSP
ADJ
ENGINE OIL LEVEL INSPECTION
(For USA and CDN)
CAUTION:
● Do not add any chemical additives.
Engine oil also lubricates the clutch and
additives could cause clutch slippage.
● Do not allow foreign material to enter the
crankcase.
(Except for USA and CDN)
CAUTION:
● Do not add any chemical additives or use
oils with a grade of CD a or higher.
● Do not use oils labeled “ENERGY CON-
SERVING II” b or higher. Engine oil also
lubricates the clutch and additives could
cause clutch slippage.
● Do not allow foreign materials to enter the
crankcase.
5. Install:
● Oil tank cap
6. Start the engine and let it warm up for
several minutes.
7. Turn off the engine and inspect the oil
level once again.
NOTE:
Wait a few minutes until the oil settles before
inspecting the oil level.
Recommended oil:
At 5 ˚C (40 ˚F) or higher Å
Yamalube 4 (20W-40) or SAE
20W-40 type SG motor oil (Non-
Friction modified)
At 15 ˚C (60 ˚F) or lower ı
Yamalube 4 (10W-30) or SAE
10W-30 type SG motor oil (Non-
Friction modified)
and/or
Yamalube 4-R (15W-50)
(Non-Friction modified)
Recommended oil:
Refer to the following chart for
selection of oils which are suited
to the atmospheric temperatures.
Recommended engine oil classi-
fication:
API STANDARD:
API “SG” or higher grade
(Designed primarily for motor-
cycles)
-20
-4
-10
14
0
30
10
50
20
68
30
86
40 50
104
122
°CTemp.
°F
10W-30
10W-40
20W-40
20W-50
15W-40
a
b
