6 - 6
– +
ELEC

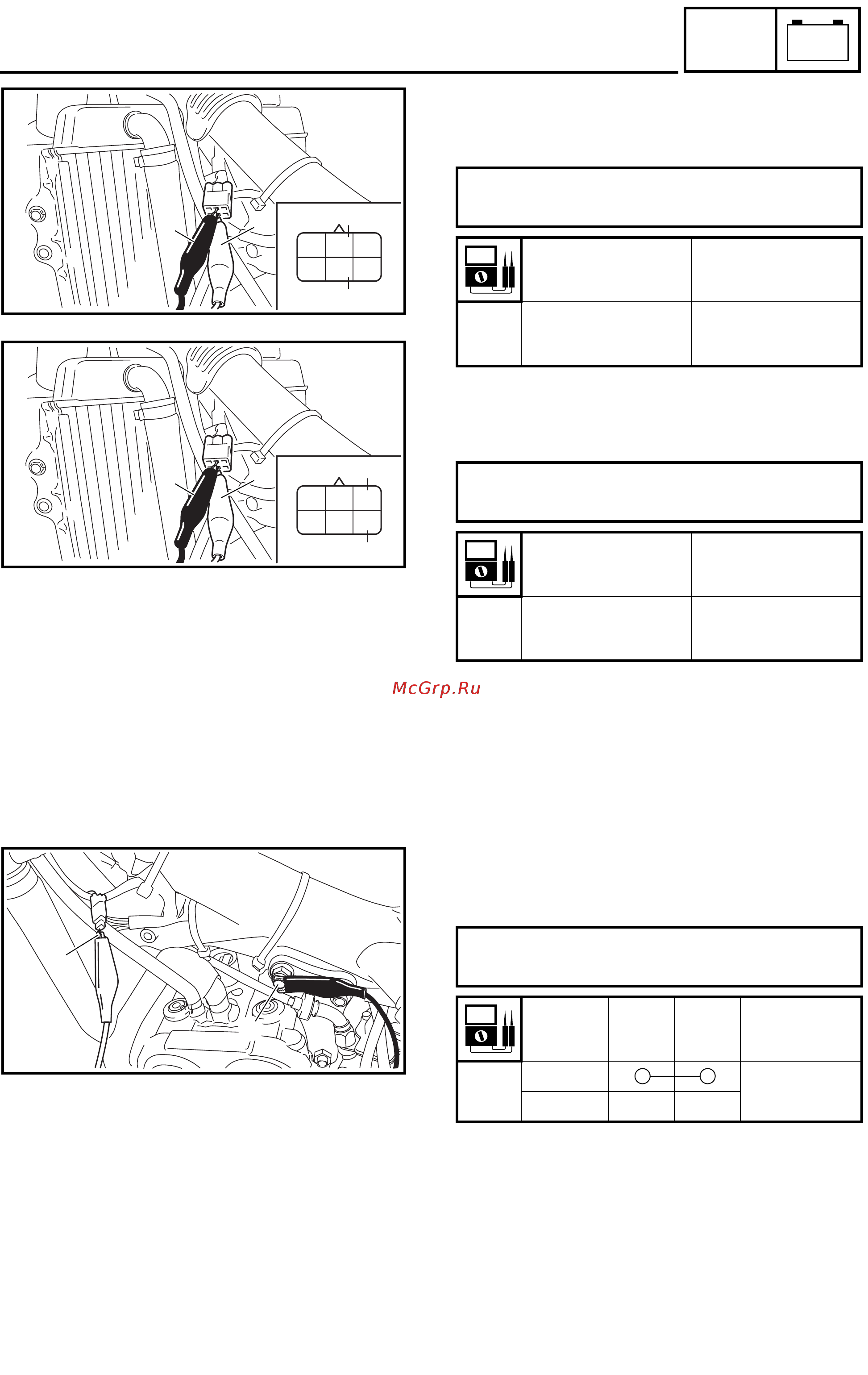

IGNITION SYSTEM
2. Inspect:
● Charging coil 1 resistance
Out of specification → Replace.
3. Inspect:
● Charging coil 2 resistance
Out of specification → Replace.
Tester (+) lead → Brown lead 1
Tester (–) lead → Green lead 2
Charging coil 1
resistance
Tester selector
position
720 ~ 1,080 Ω
at 20 ˚C (68 ˚F)
Ω × 100
Tester (+) lead → Pink lead 1
Tester (–) lead → Black lead 2
Charging coil 2
resistance
Tester selector
position
44 ~ 66 Ω at
20 ˚C (68 ˚F)
Ω × 10
W
R
Br
G
P
B
2
1
2
1
2
1
W
R
Br
G
P
B
2
1
NEUTRAL SWITCH INSPECTION
1. Inspect:
● Neutral switch conduct
No continuous while in neutral → Replace.
Continuous while in gear → Replace.
EC628000
CDI UNIT INSPECTION
Check all electrical components. If no fault is
found, replace the CDI unit. Then check the
electrical components again.
Tester (+) lead → Sky blue lead 1
Tester (–) lead → Ground 2
Sb
1
Ground
2
Tester selec-
tor position
NEUTRAL
Ω × 1
IN GEAR
2
