4 - 57
ENG

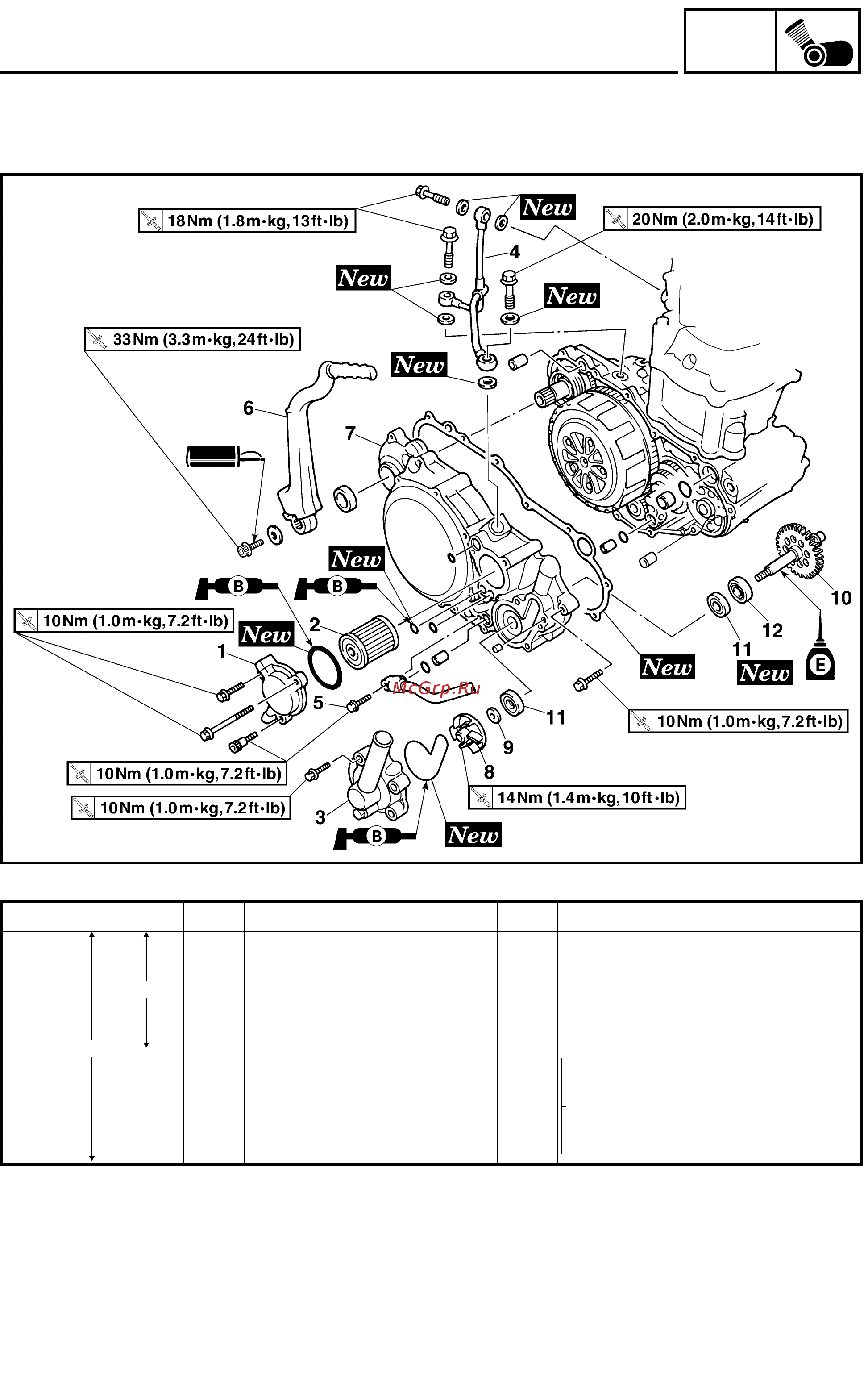

OIL FILTER ELEMENT, WATER PUMP AND RIGHT
CRANKCASE COVER
Extent of removal Order Part name Q’ty Remarks
3 Water pump housing 1
4 Oil delivery pipe 1
5 Bolt (oil hose) 1
6 Kickstarter crank 1
7 Right crankcase cover 1
8 Impeller 1
Refer to “REMOVAL POINTS”.
9 Washer 1
10 Impeller shaft 1
11 Oil seal 2
12
Bearing
1
3
2
