5 - 13
CHAS

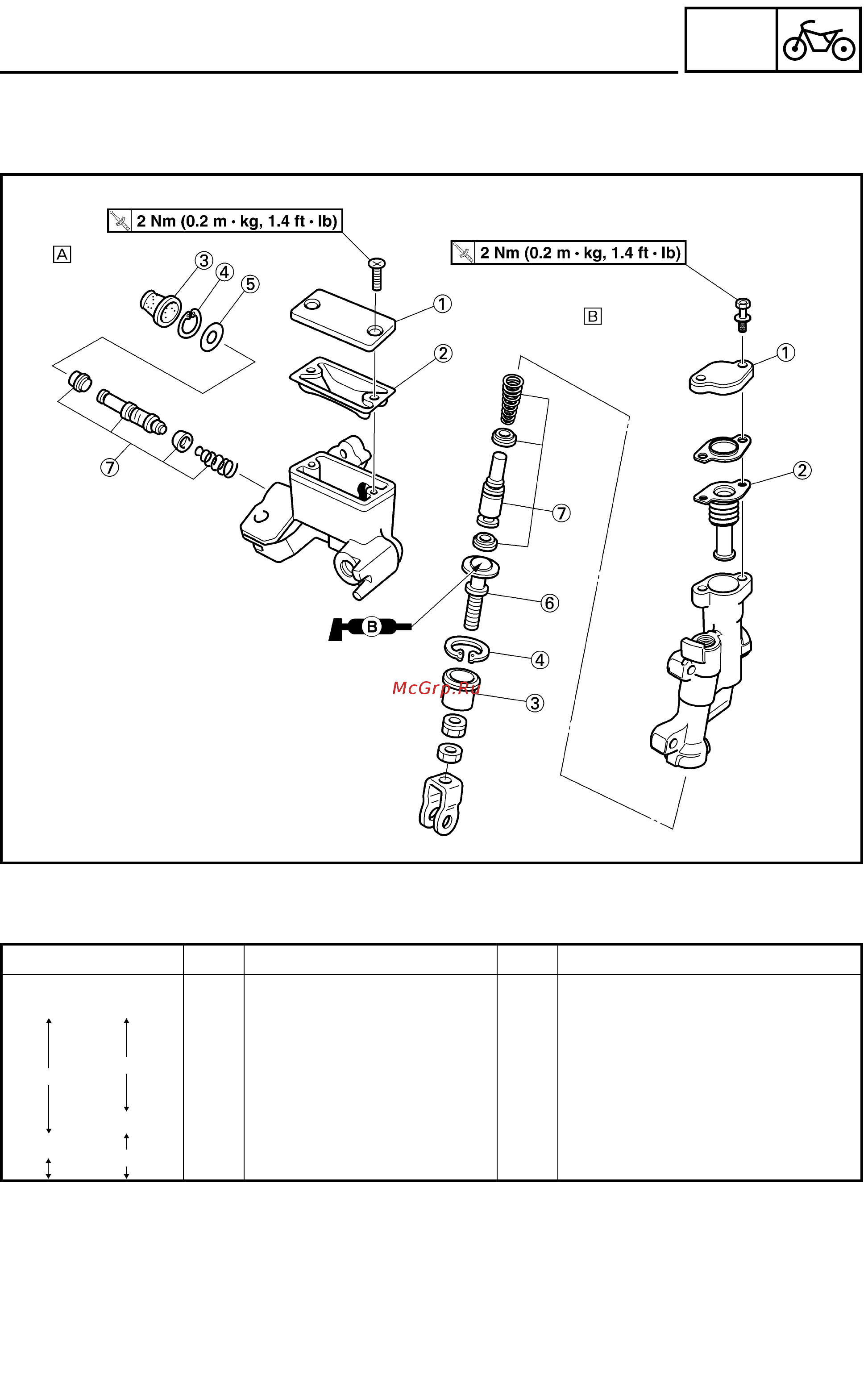

FRONT BRAKE AND REAR BRAKE
BRAKE MASTER CYLINDER DISASSEMBLY
Å Front
ı Rear
Extent of removal: 1 Front brake master cylinder disassembly 2 Rear brake master cylinder disassembly
Extent of removal Order Part name Q’ty Remarks
BRAKE MASTER CYLINDER
DISASSEMBLY
1 Brake master cylinder cap 1
2 Diaphragm 1
3 Brake master cylinder boot 1
4 Circlip 1 Use a long nose circlip pliers.
5 Washer 1
6 Push rod 1
7
Brake master cylinder kit
1
1
2
2
1
