4 - 78
ENG

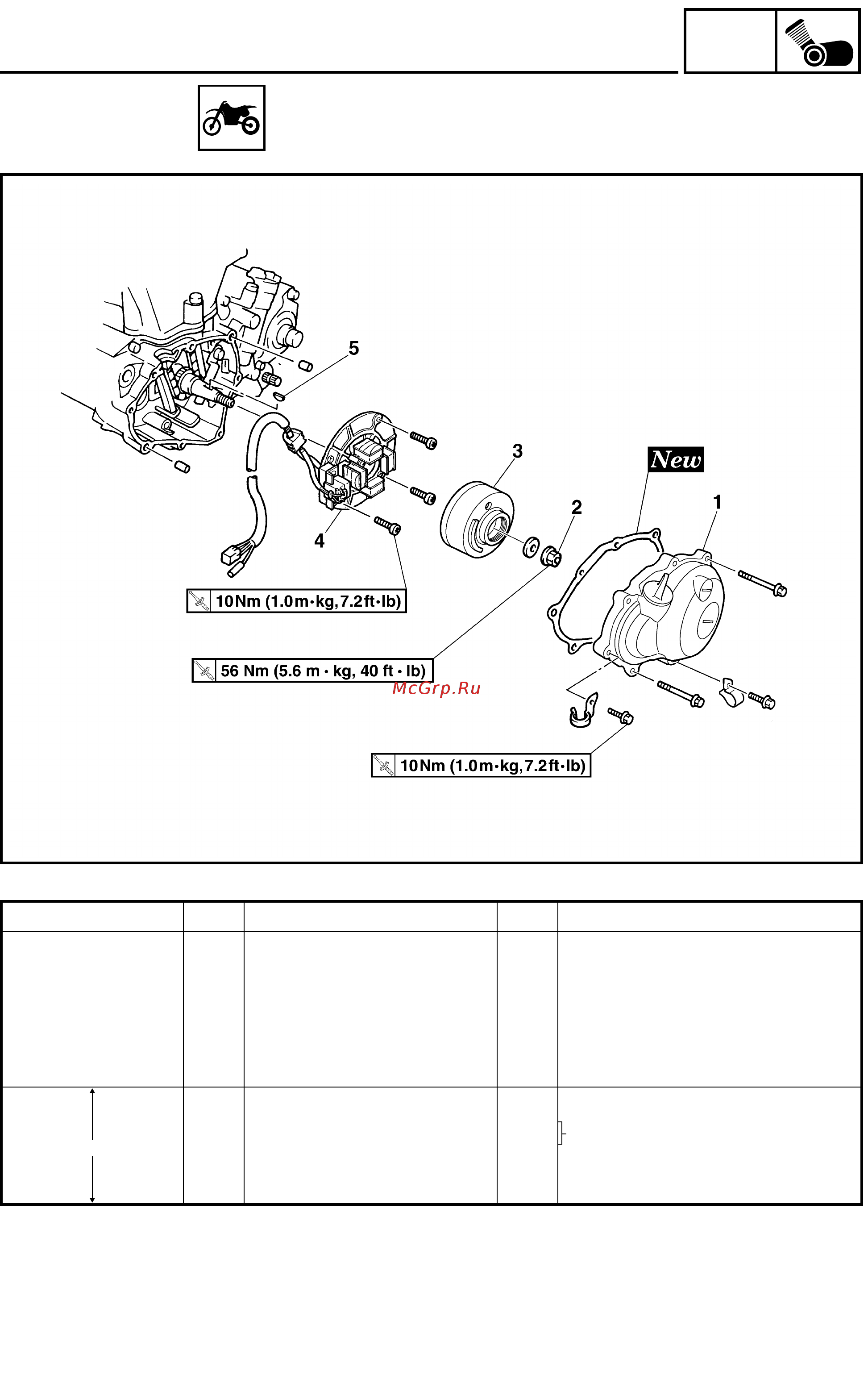

CDI MAGNETO
EC4L0000
CDI MAGNETO
Extent of removal: 1 CDI magneto removal
Extent of removal Order Part name Q’ty Remarks
CDI MAGNETO REMOVAL
Preparation for removal Seat and fuel tank Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
Bolt (left radiator) Refer to “RADIATOR” section.
Disconnect the CDI magneto lead.
Shift pedal Refer to “KICK SHAFT AND SHIFT
SHAFT” section.
1 Left crankcase cover 1
2 Nut (rotor) 1 Use special tool.
Refer to “REMOVAL POINTS”.
3 Rotor 1
4 Stator 1
5
Woodruff key
1
1
