7 - 4
TUN

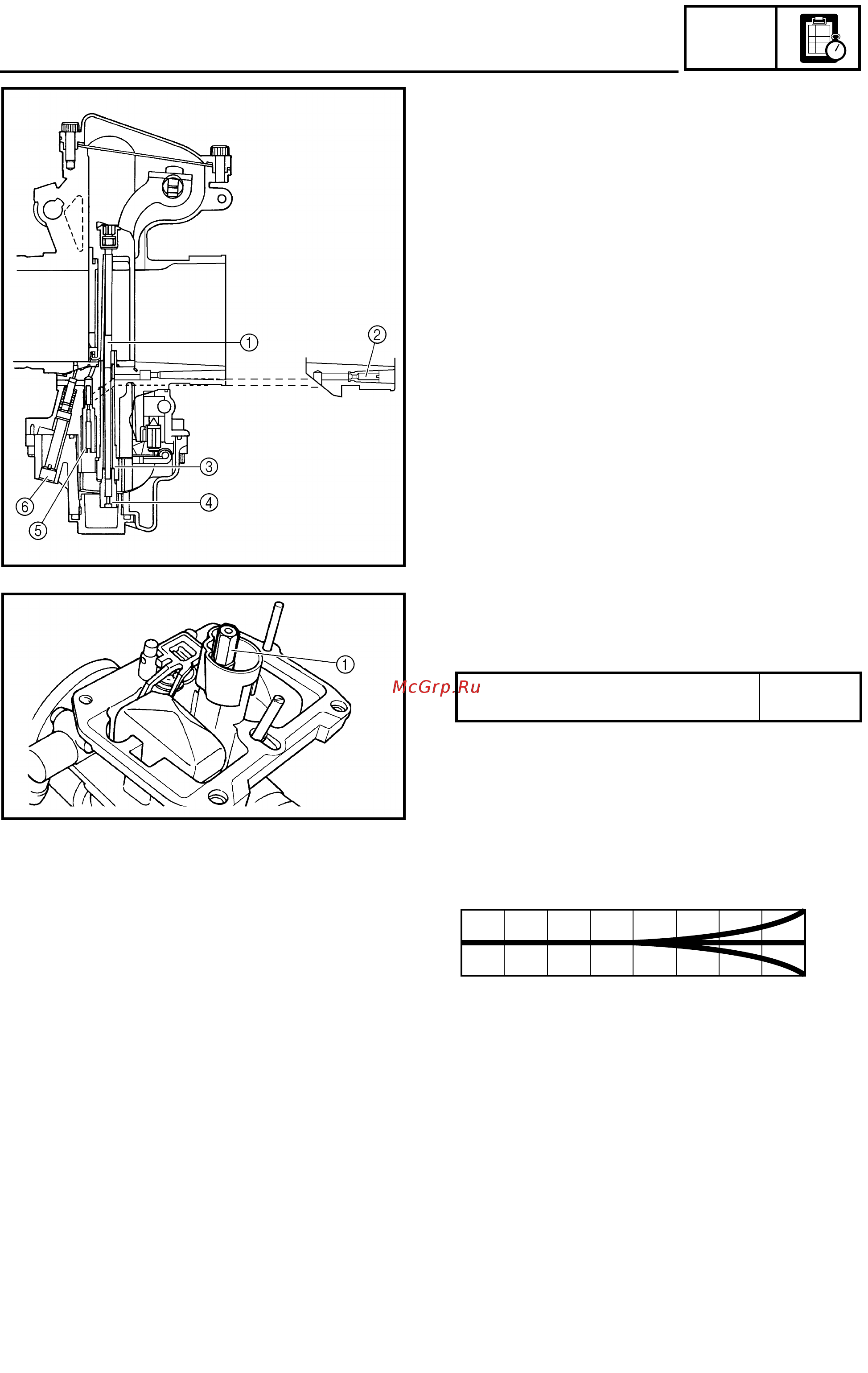

SETTING
1 Jet needle
2 Pilot air jet
3 Needle jet
4 Main jet
5 Pilot jet
6 Pilot screw
Main jet adjustment
The richness of the air-fuel mixture at full throt-
tle can be set by changing the main jet 1.
If the air-fuel mixture is too rich or too lean, the
engine power will drop, resulting in poor accel-
eration.
Effects of changing the main jet (reference)
Å Idle
ı Fully open
Standard main jet #178
1/4 1/2 3/4
+10%
#178
–10%
#188
#168
Å
ı
