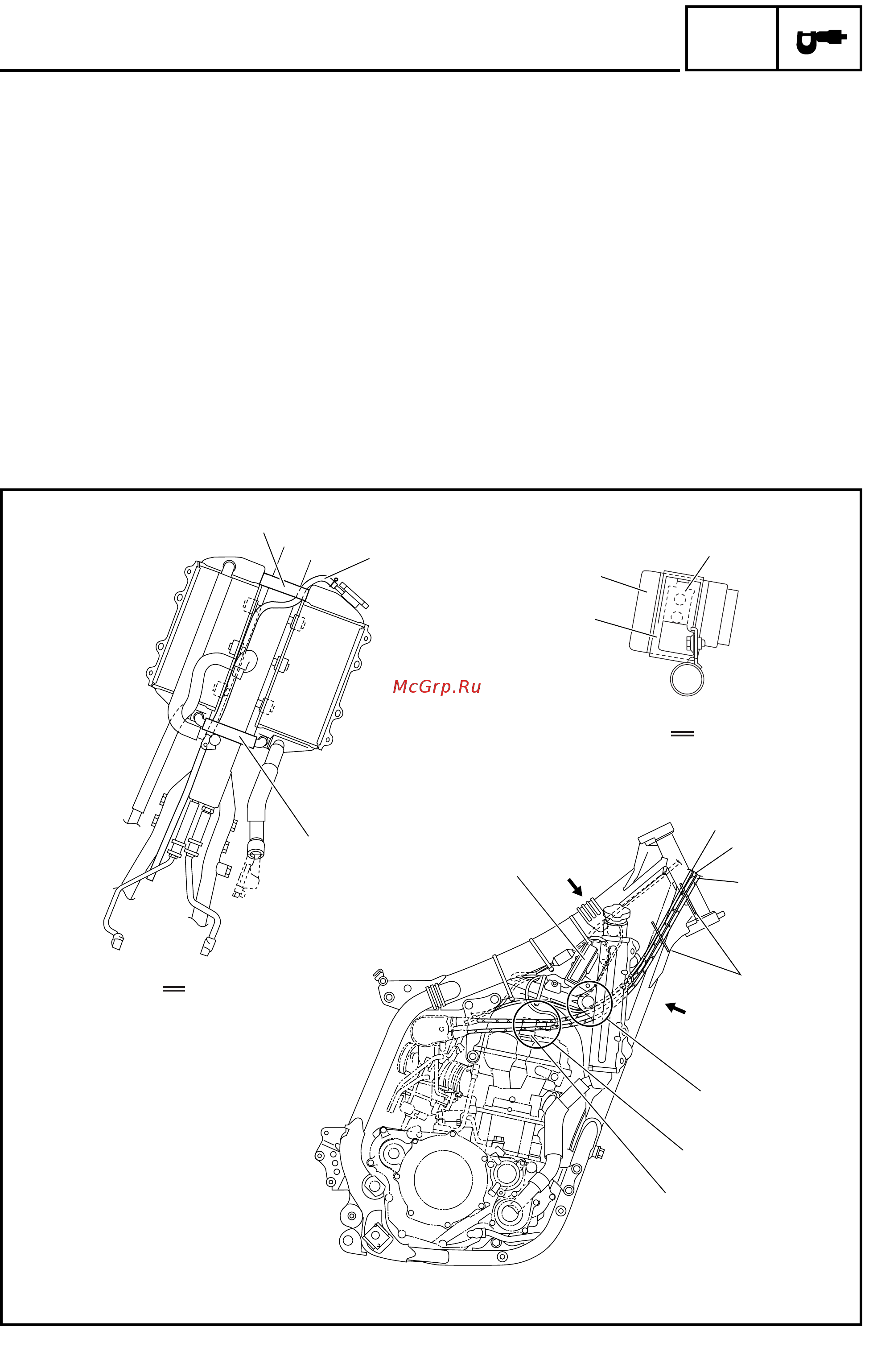

Yamaha WR250F 2003 [56/304] Cable routing diagram

2 - 20

SPEC

1 CDI unit

2 Hot starter cable

3 Throttle cable (return)

4 Throttle cable (pull)

5 Cable guide

6 Ignition coil

7 Radiator hose 2

8 Radiator breather hose

9 Radiator hose 4

0 CDI unit bracket

A CDI unit band

Å Pass the hot starter cable and

throttle cables through the

cable guides.

ı Pass the hot starter cable and

throttle cables between the

radiator and frame, then under

the radiator mounting boss.

Ç Pass the throttle cables on the

outside of the ignition coil.

Î Pass the radiator breather

hose in front of the radiator

hose 2, on the left of the chas-

sis, and then between the

frame and radiator hose 4.

‰ Insert the CDI unit band over

the CDI unit bracket as far as

possible.

Ï First install the CDI unit and

CDI unit band to the CDI unit

bracket, then the CDI unit

bracket to the frame.

‰

CABLE ROUTING DIAGRAM
