3 - 12
INSP
ADJ

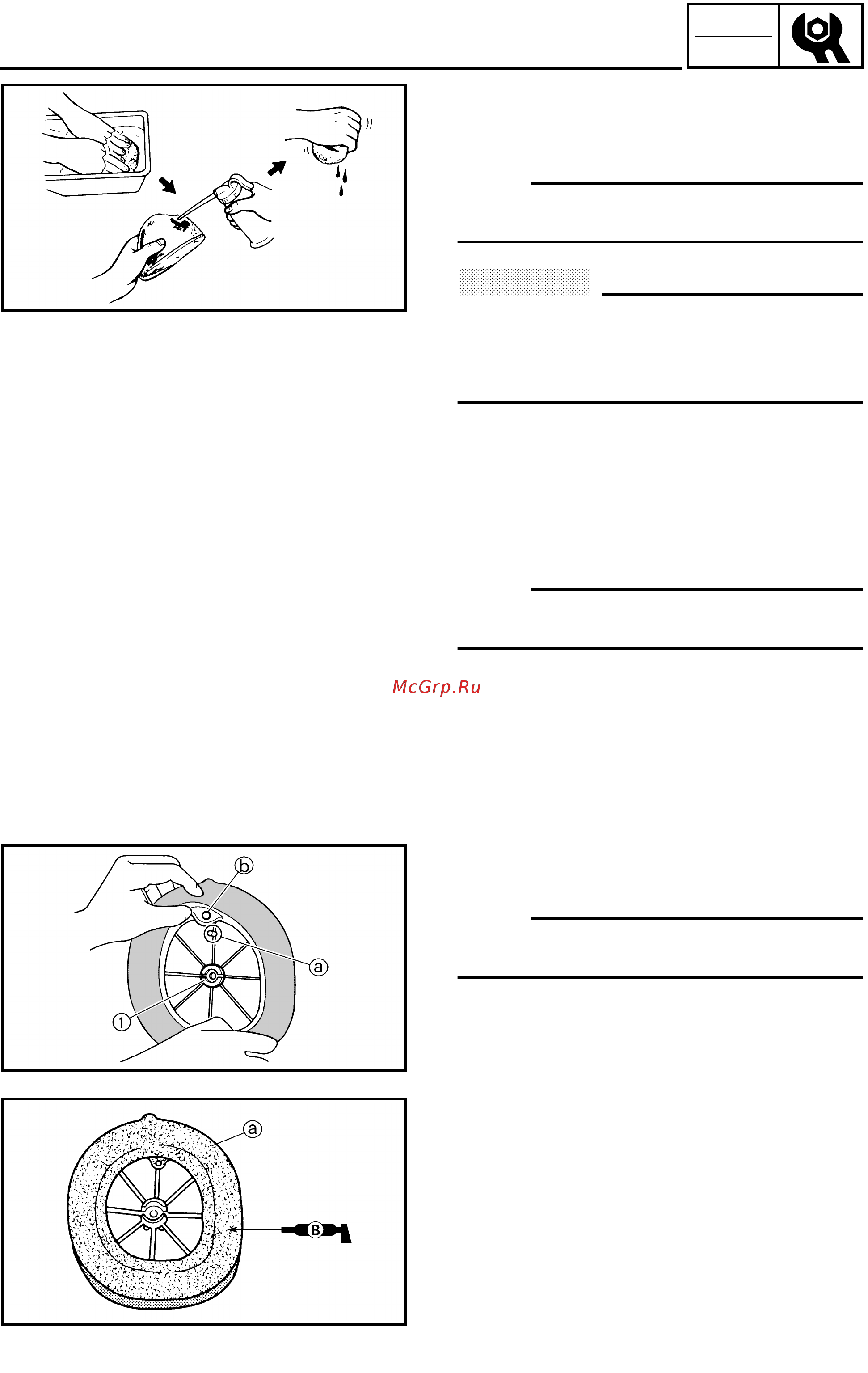

AIR FILTER CLEANING
2. Clean:
● Air filter element
Clean them with solvent.
NOTE:
After cleaning, remove the remaining solvent
by squeezing the element.
CAUTION:
● Do not twist the element when squeezing
the element.
● Leaving too much of solvent in the ele-
ment may result in poor starting.
3. Inspect:
● Air filter element
Damage → Replace.
4. Apply:
● Foam-air-filter oil or equivalent oil to the
element.
NOTE:
Squeeze out the excess oil. Element should
be wet but not dripping.
5. Install:
● Air filter guide 1
NOTE:
Align the projection a on air filter guide with
the hole b in air filter element.
6. Apply:
● Lithium soap base grease
On the matching surface a on air filter
element.
