3 - 31
INSP
ADJ

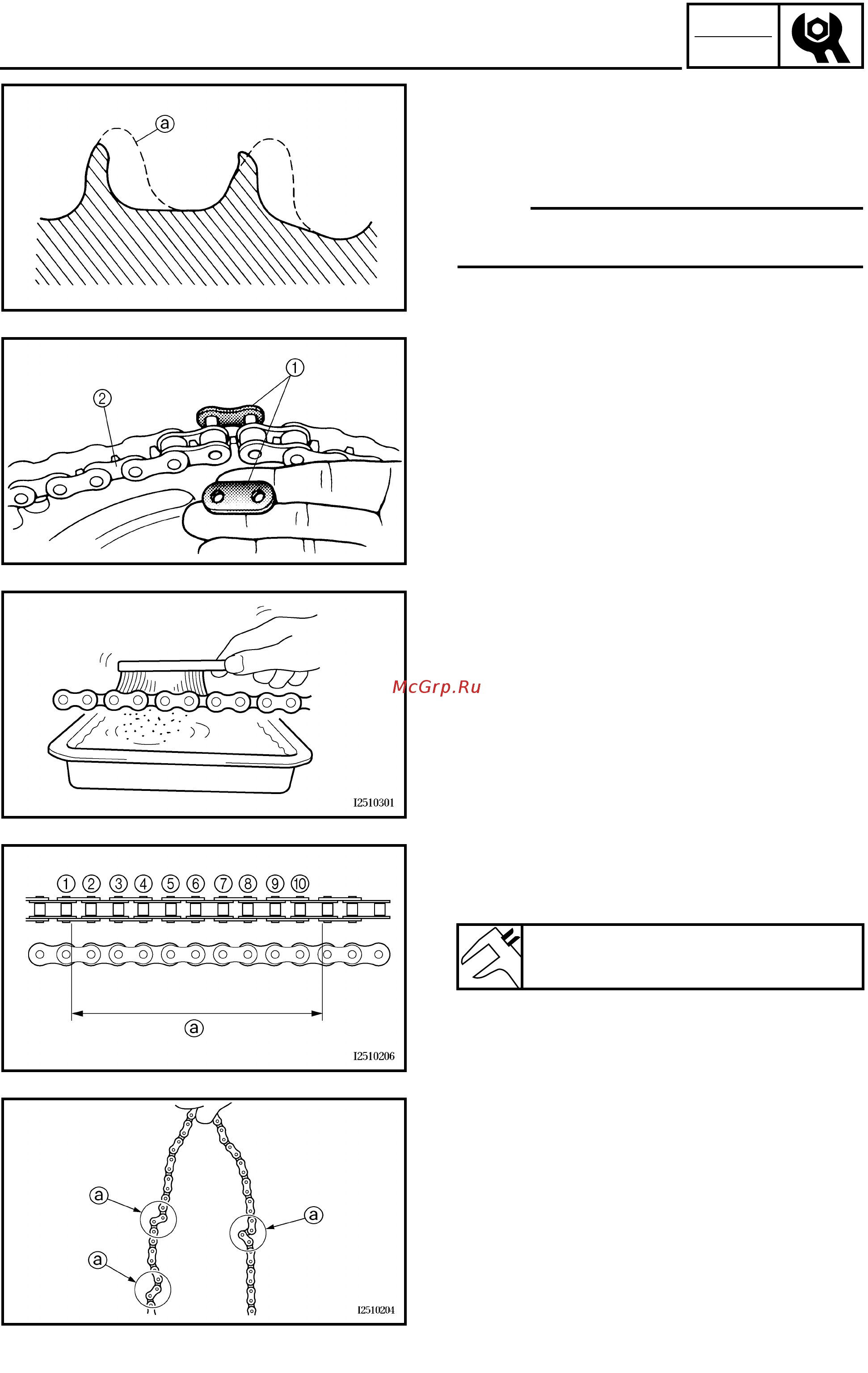

SPROCKETS INSPECTION/DRIVE CHAIN INSPECTION
SPROCKETS INSPECTION
1. Inspect:
● Sprocket teeth a
Excessive wear → Replace.
NOTE:
Replace the drive sprocket, rear wheel
sprocket and drive chain as a set.
EC369002
DRIVE CHAIN INSPECTION
1. Remove:
● Master link clip
● Joint 1
● Drive chain 2
2. Clean:
● Drive chain
Place it in kerosene, and brush off as
much dirt as possible. Then remove the
drive chain from the kerosene and dry
the drive chain.
3. Measure:
● Drive chain length (10 links) a
Out of specification → Replace.
Drive chain length (10 links):
<Limit>: 152.5 mm (6.00 in)
4. Check:
● Drive chain stiffness a
Clean and oil the drive chain and hold
as illustrated.
Stiff → Replace drive chain.
