Yamaha WR250F 2003 [159/304] Clutch

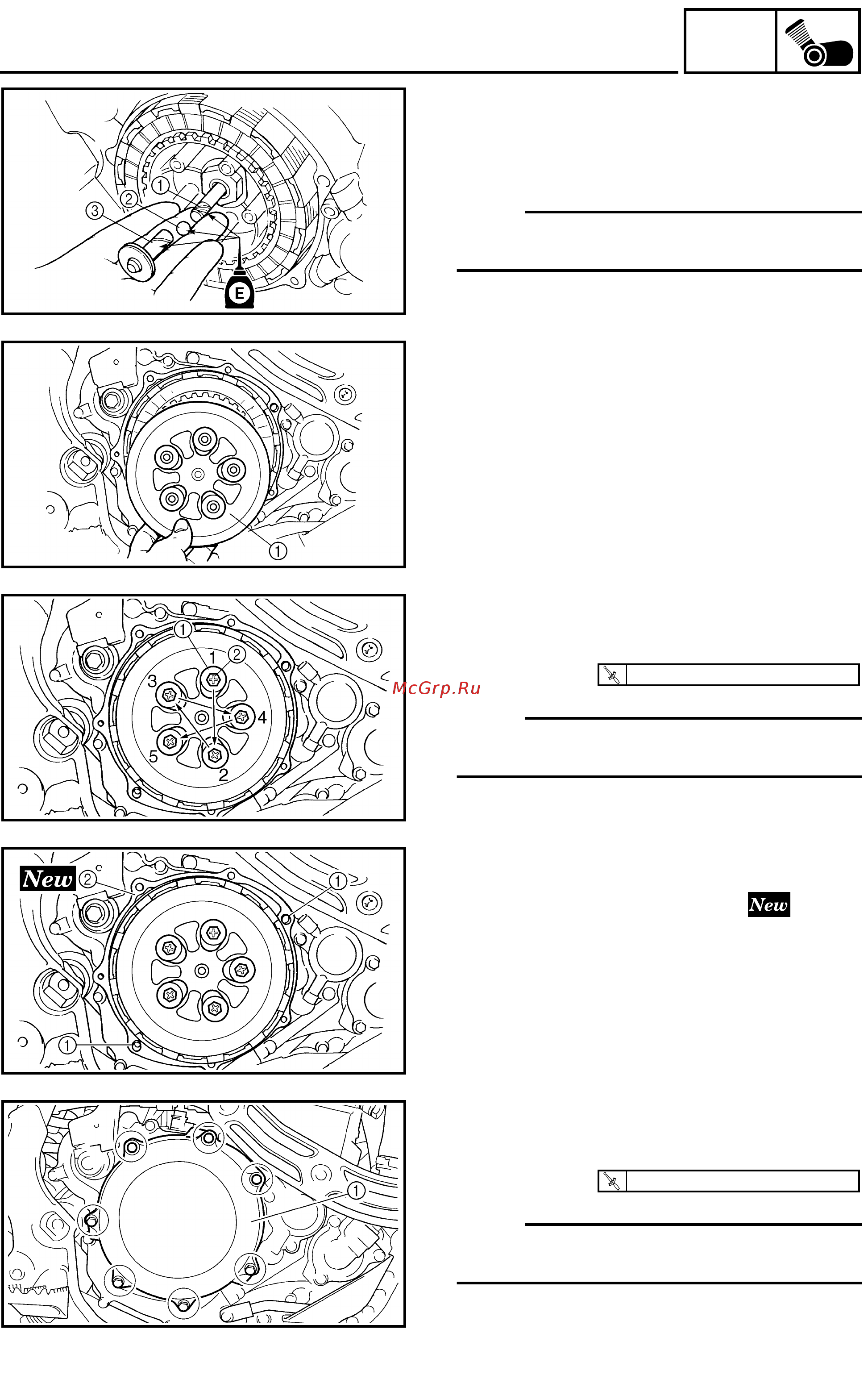

![Yamaha WR250F 2003 [159/304] Clutch](/views2/1012986/page159/bg9f.png)
4 - 55
ENG
CLUTCH
7. Install:
● Push rod 2 1
● Ball 2
● Push rod 1 3
NOTE:
Apply the engine oil on the push rod 1, 2 and
ball.
8. Install:
● Pressure plate 1
9. Install:
● Clutch spring 1
● Bolt (clutch spring) 2
NOTE:
Tighten the bolts in stage, using a crisscross
pattern.
T
R
.
.
8 Nm (0.8 m · kg, 5.8 ft · lb)
10. Install:
● Dowel pin 1
● Gasket (clutch cover) 2
11. Install:
● Clutch cover 1
● Bolt (clutch cover)
NOTE:
Tighten the bolts in stage, using a crisscross
pattern.
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
