![Yamaha WR250F 2003 [80/304] Insp adj](/img/pdf.png)
Yamaha WR250F 2003 [80/304] Insp adj
![Yamaha WR250F 2003 [80/304] Insp adj](/views2/1012986/page80/bg50.png)
3 - 22
INSP
ADJ

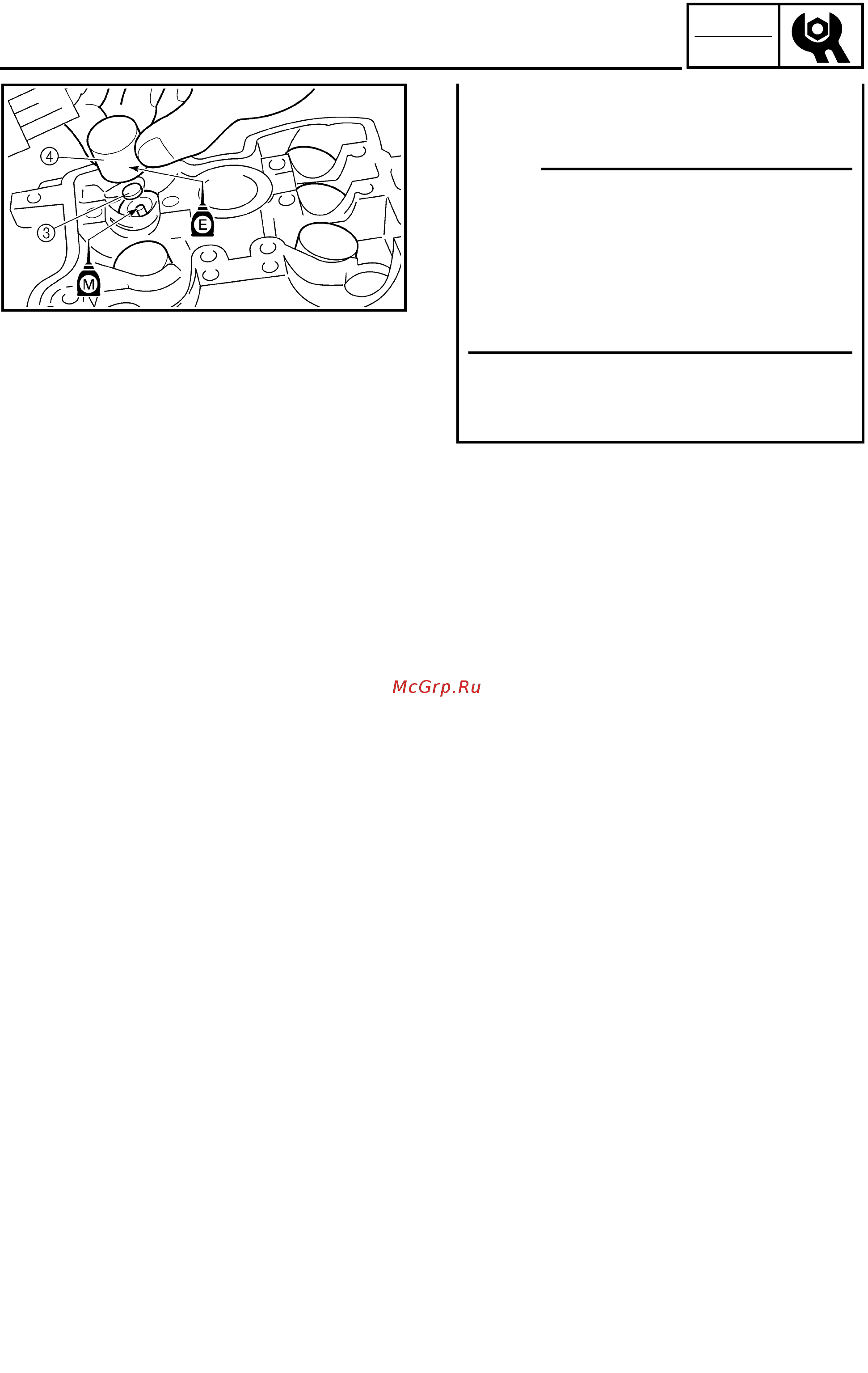

VALVE CLEARANCE INSPECTION AND ADJUSTMENT
● Install the new pads 3 and the valve lift-
ers 4.
NOTE:
● Apply the engine oil on the valve lifters.
● Apply the molybdenum disulfide oil on the
valve stem ends.
● Valve lifter must turn smoothly when
rotated with a finger.
● Be careful to reinstall valve lifters and
pads in their original place.
● Install the camshafts (exhaust and intake).
Refer to “CAMSHAFTS” section in the
CHAPTER 4.
