6 - 5
– +
ELEC
IGNITION SYSTEM
EC626002

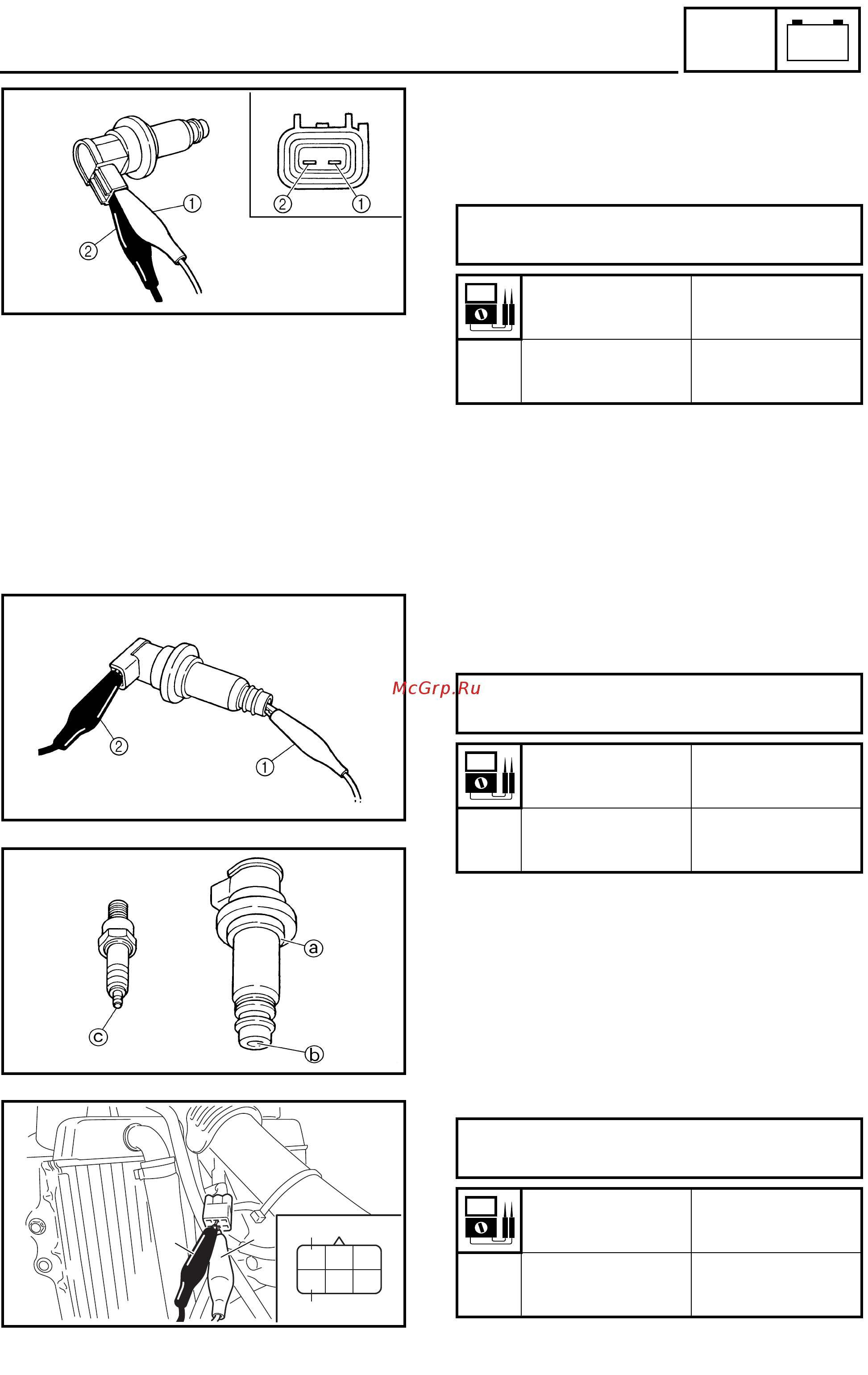

IGNITION COIL INSPECTION
1. Inspect:
●
Primary coil resistance
Out of specification
→
Replace.
Tester (+) lead
→
Orange lead
1
Tester (–) lead
→
Black lead
2
Primary coil
resistance
Tester selector
position
0.08 ~ 0.10
Ω
at
20 ˚C (68 ˚F)
Ω
× 1
2. Inspect:
● Secondary coil resistance
Out of specification → Replace.
3. Inspect:
● Sealed portion of ignition coil a
● Spark plug terminal pin b
● Threaded portion of spark plug c
Wear → Replace.
CDI MAGNETO INSPECTION
1. Inspect:
● Pickup coil resistance
Out of specification → Replace.
Tester (+) lead → Spark plug terminal 1
Tester (–) lead → Orange lead 2
Secondary coil
resistance
Tester selector
position
4.6 ~ 6.8 kΩ at
20 ˚C (68 ˚F)
kΩ × 1
Tester (+) lead → Red lead 1
Tester (–) lead → White lead 2
Pickup coil
resistance
Tester selector
position
248 ~ 372 Ω at
20 ˚C (68 ˚F)
Ω × 100
W
R
Br
G
P
B
1
2
2
1
