Yamaha WR250F 2003 [187/304] Engine removal
![Yamaha WR250F 2003 [187/304] Engine removal](/views2/1012986/page187/bgbb.png)
4 - 83
ENG

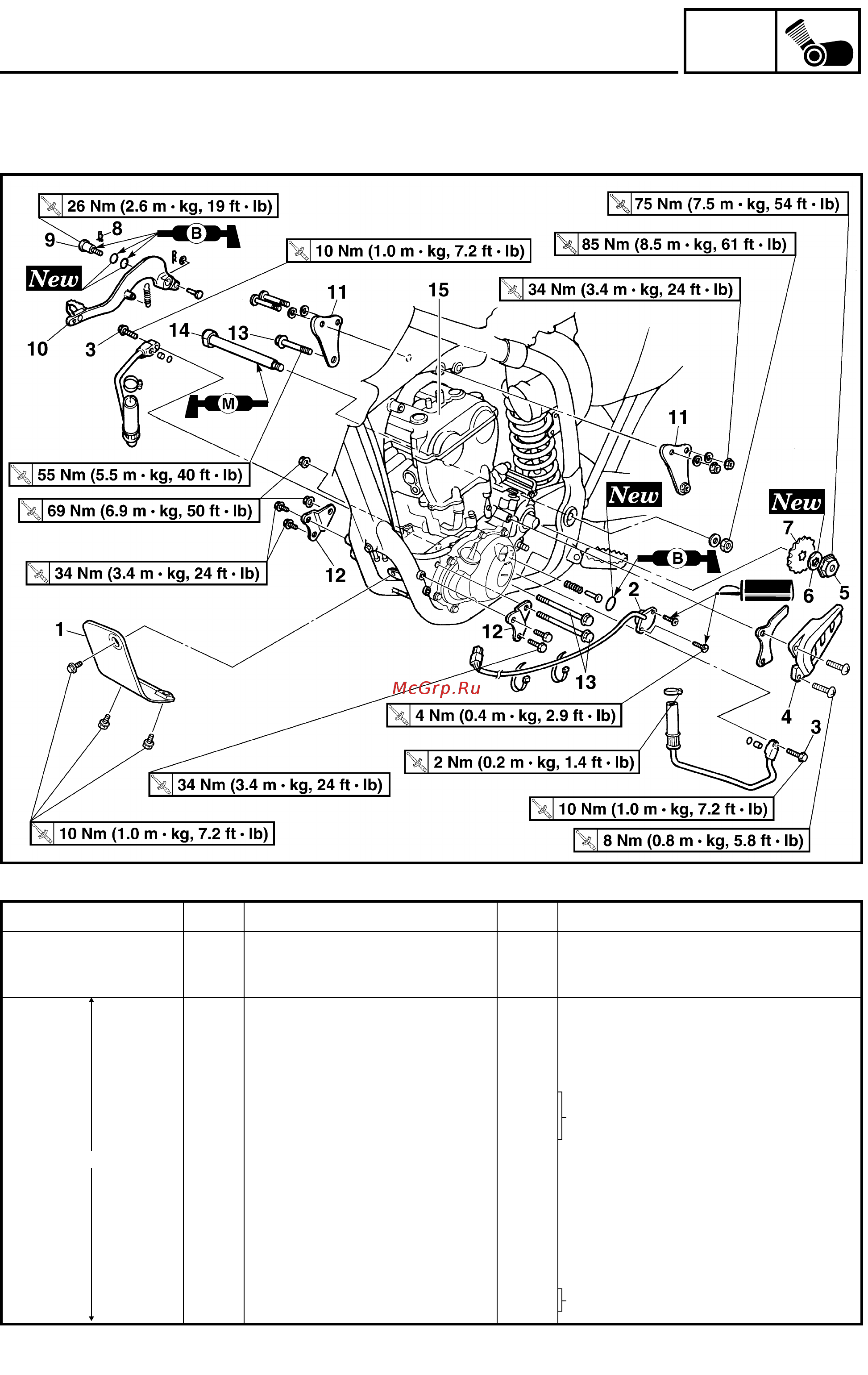

ENGINE REMOVAL
Extent of removal: 1 Engine removal
Extent of removal Order Part name Q’ty Remarks
Ignition coil
Disconnect the CDI magneto lead.
Right engine guard
1 Lower engine guard 1
2 Neutral switch 1
3 Bolt (oil hose) 2
4 Drive chain sprocket cover 1
5 Nut (drive sprocket) 1
Refer to “REMOVAL POINTS”.6 Lock washer 1
7 Drive sprocket 1
8 Clip 1
9 Bolt (brake pedal) 1
10 Brake pedal 1
11 Upper engine bracket 2
12 Lower engine bracket 2
13 Engine mounting bolt 3
14 Pivot shaft 1
Refer to “REMOVAL POINTS”.
15 Engine 1
