4 - 22
ENG

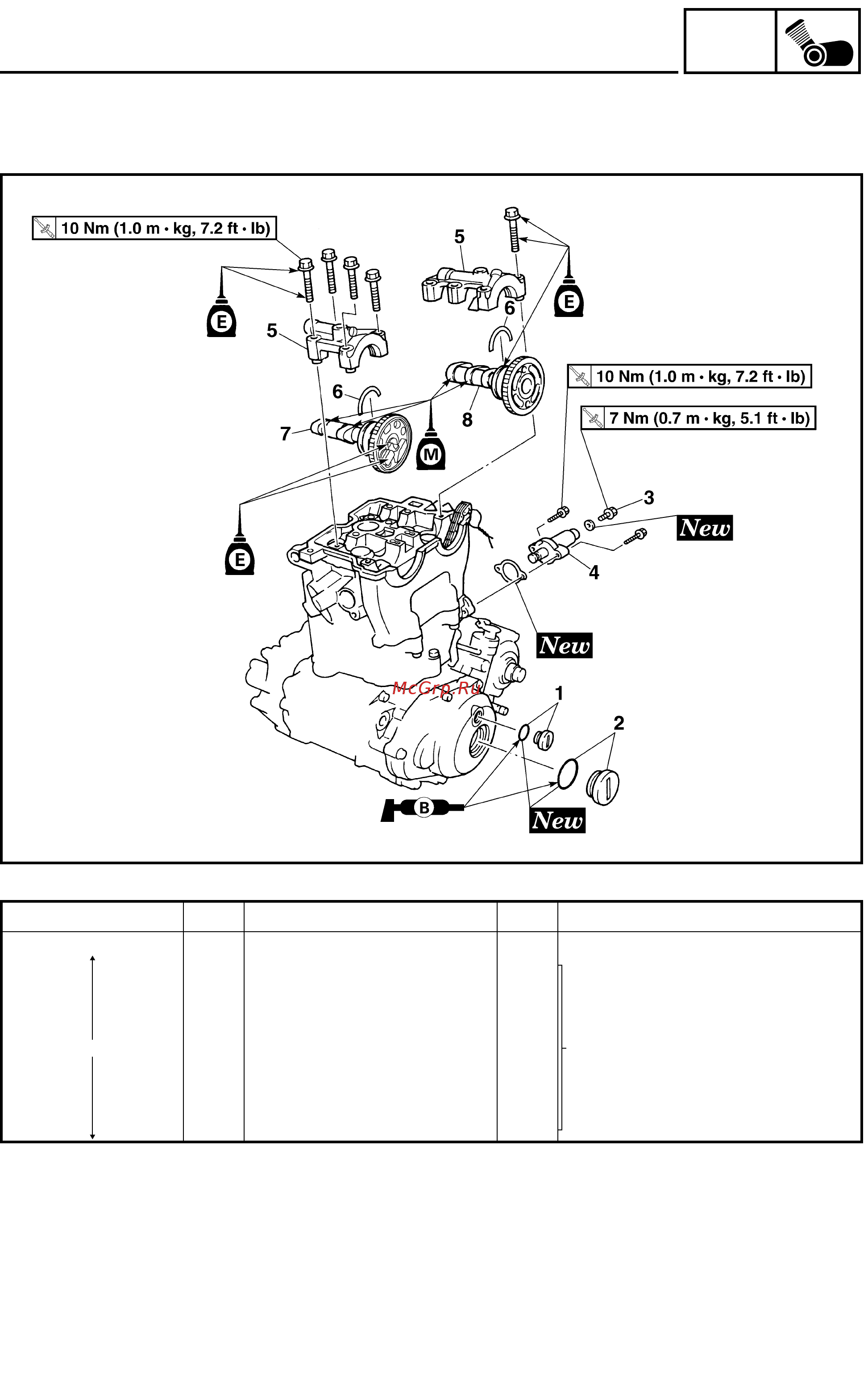

CAMSHAFTS
CAMSHAFTS
Extent of removal: 1 Camshaft removal
Extent of removal Order Part name Q’ty Remarks
CAMSHAFTS REMOVAL
1 Timing mark accessing screw 1
Refer to “REMOVAL POINTS”.
2 Crankshaft end accessing screw 1
3 Timing chain tensioner cap bolt 1
4 Timing chain tensioner 1
5 Camshaft cap 2
6 Clip 2
7 Exhaust camshaft 1
8
Intake camshaft
1
1
