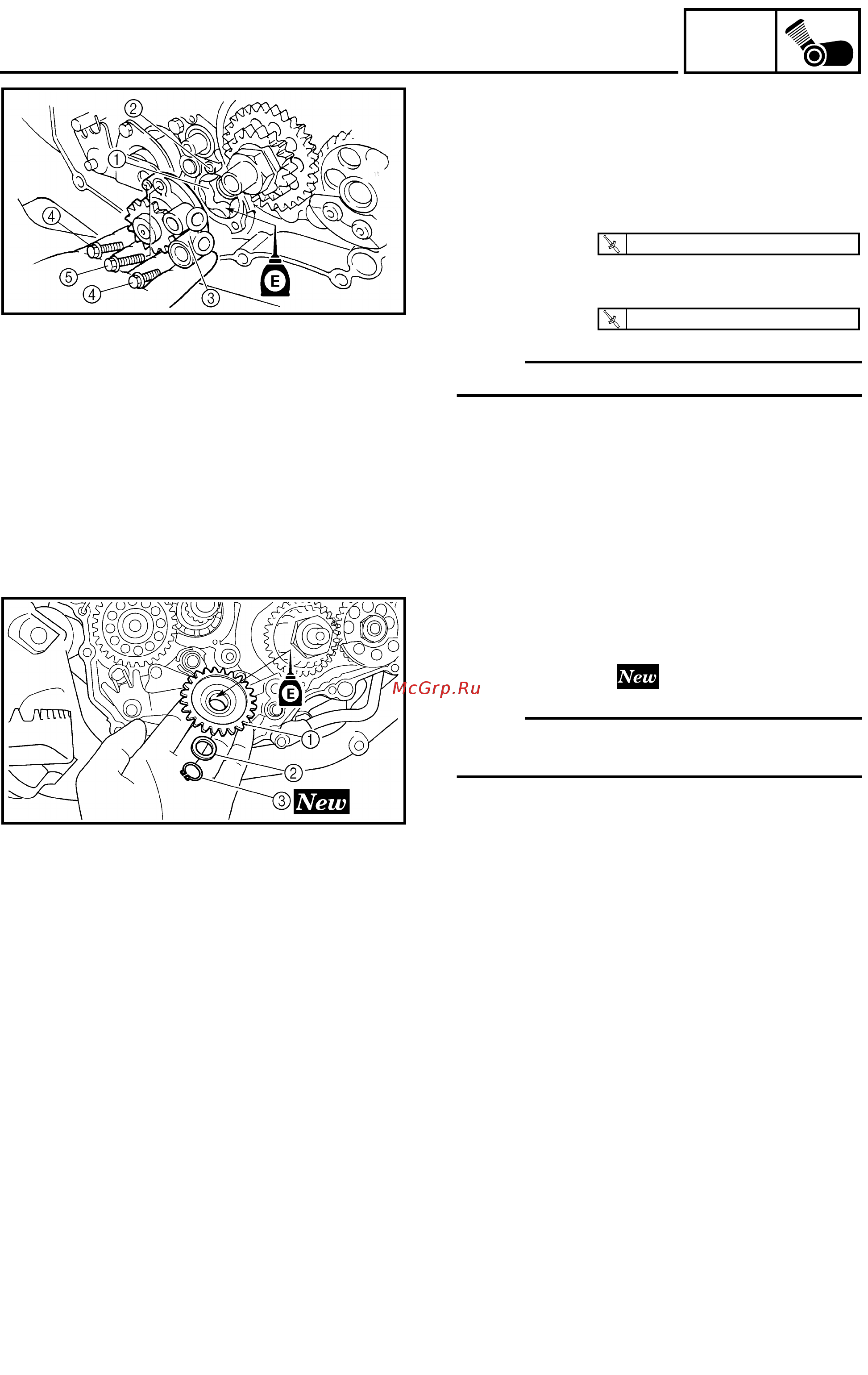

4 - 70
ENG
4. Install:
● Outer rotor 2 1
● Dowel pin 2
● Oil pump assembly 3
● Bolt (oil pump assembly)
[L = 25 mm (0.94 in)] 4
● Bolt (oil pump assembly)
[L = 30 mm (1.18 in)] 5
NOTE:
Apply the engine oil on the outer rotor 2.
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
5. Install:
● Oil pump drive gear 1
● Washer 2
● Circlip 3
NOTE:
Apply the engine oil on the oil pump drive gear
inner circumference.
