Yamaha WR250F 2003 [113/304] Carburetor
![Yamaha WR250F 2003 [113/304] Carburetor](/views2/1012986/page113/bg71.png)
4 - 9
ENG
CARBURETOR
EC468000

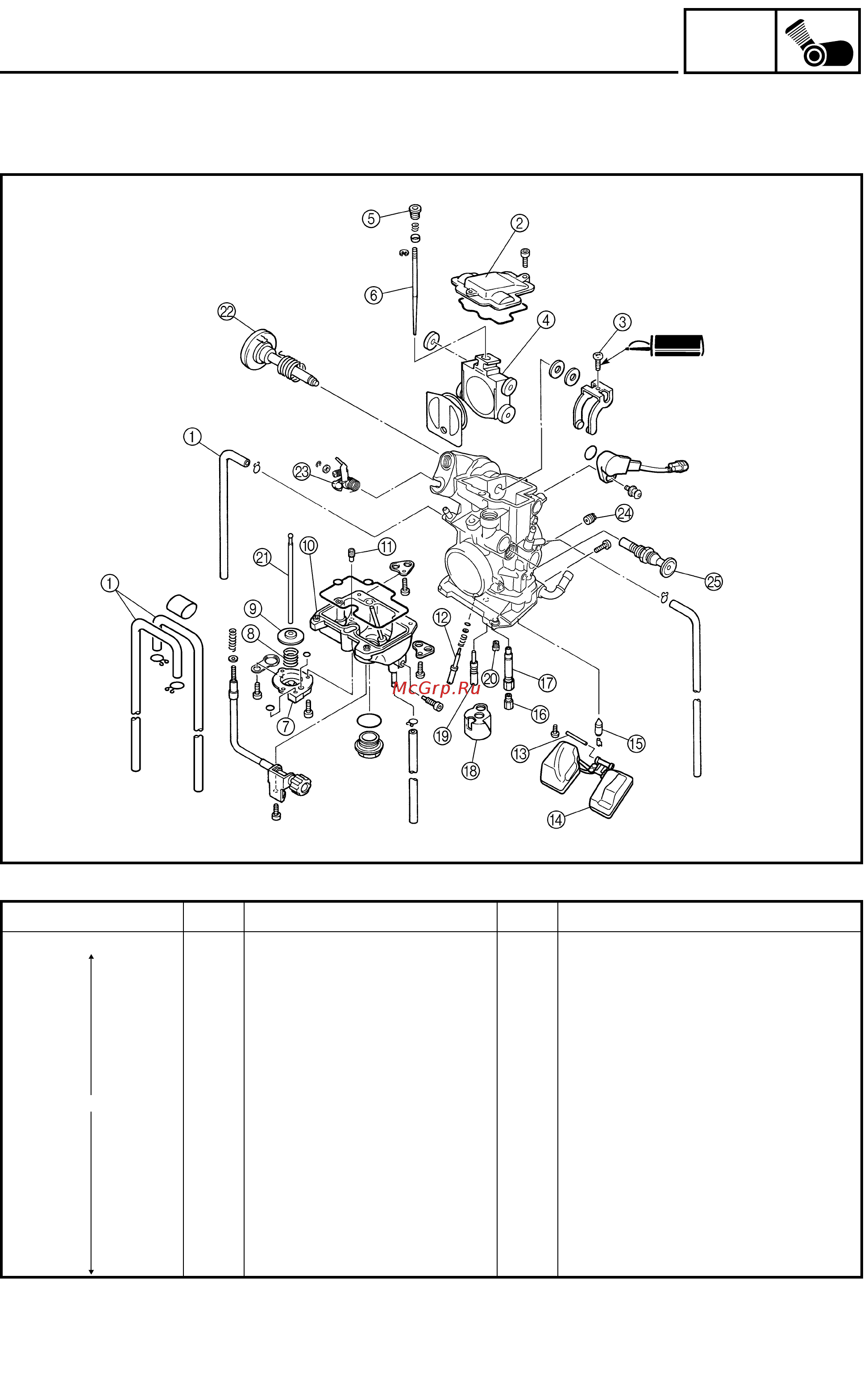

CARBURETOR DISASSEMBLY
Extent of removal: 1 Carburetor disassembly
Extent of removal Order Part name Q’ty Remarks
CARBURETOR DISASSEMBLY
1 Carburetor breather hose 4
2 Valve lever housing cover 1
3 Screw (throttle shaft) 1
4 Throttle valve 1
5 Needle holder 1
6 Jet needle 1
7 Accelerator pump cover 1
8 Spring 1
9 Diaphragm (accelerator pump) 1
0 Float chamber 1
A Leak jet 1
B Pilot screw 1 Refer to “REMOVAL POINTS”.
C Float pin 1
D Float 1
E
Needle valve
1
1
