3 - 19
INSP
ADJ
VALVE CLEARANCE INSPECTION AND ADJUSTMENT
3. Remove:
● Right radiator
Refer to “RADIATOR” section in the
CHAPTER 4.
● Carburetor
Refer to “CARBURETOR” section in
the CHAPTER 4.
● Spark plug
● Upper engine bracket
● Cylinder head cover
Refer to “CAMSHAFTS” section in the
CHAPTER 4.

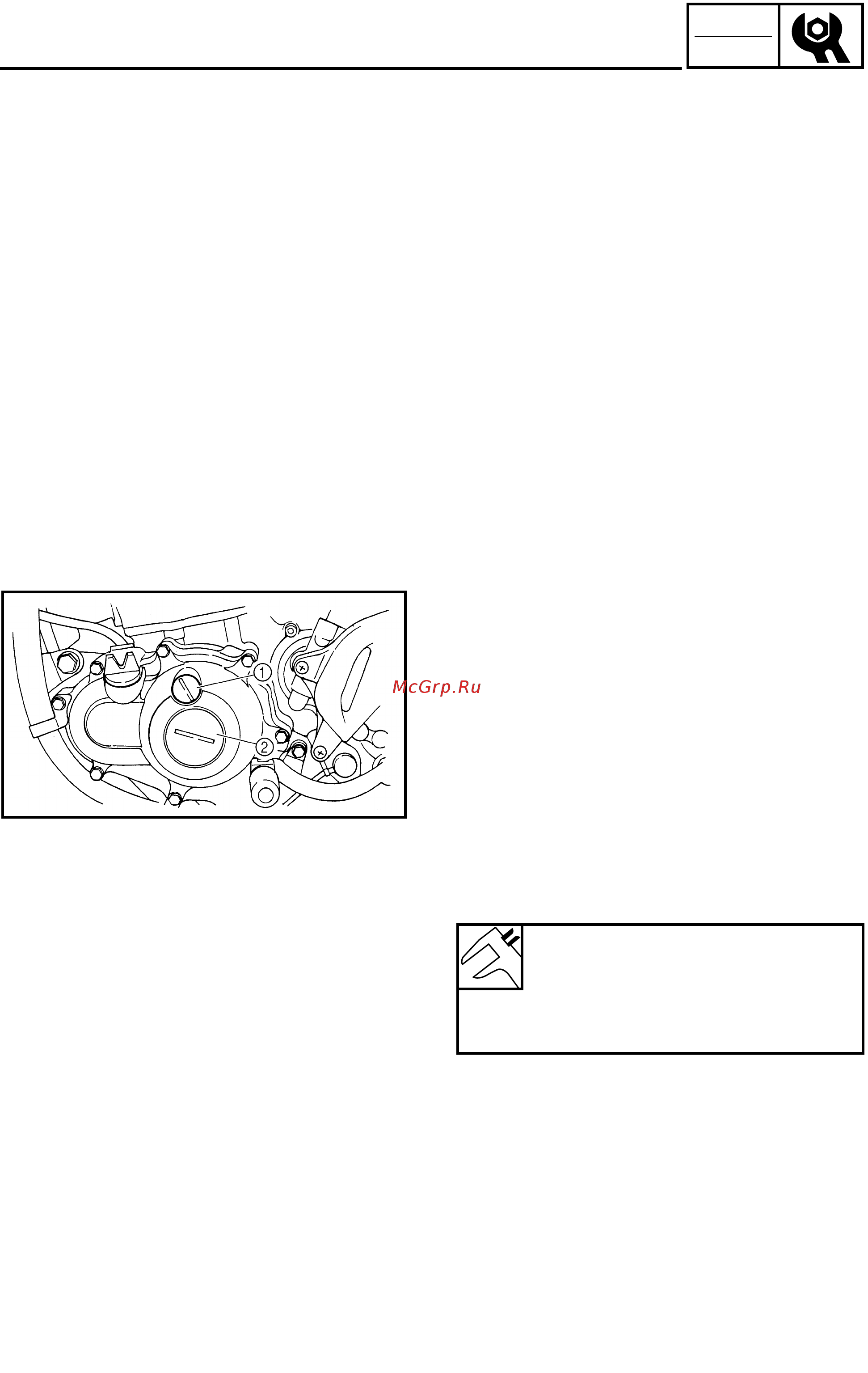

4. Remove:
● Timing mark accessing screw 1
● Crankshaft end accessing screw 2
● O-ring
5. Check:
● Valve clearance
Out of specification → Adjust.
Valve clearance (cold):
Intake valve:
0.10 ~ 0.15 mm (0.0039 ~ 0.0059 in)
Exhaust valve:
0.17 ~ 0.22 mm (0.0067 ~ 0.0087 in)
