4 - 29
ENG

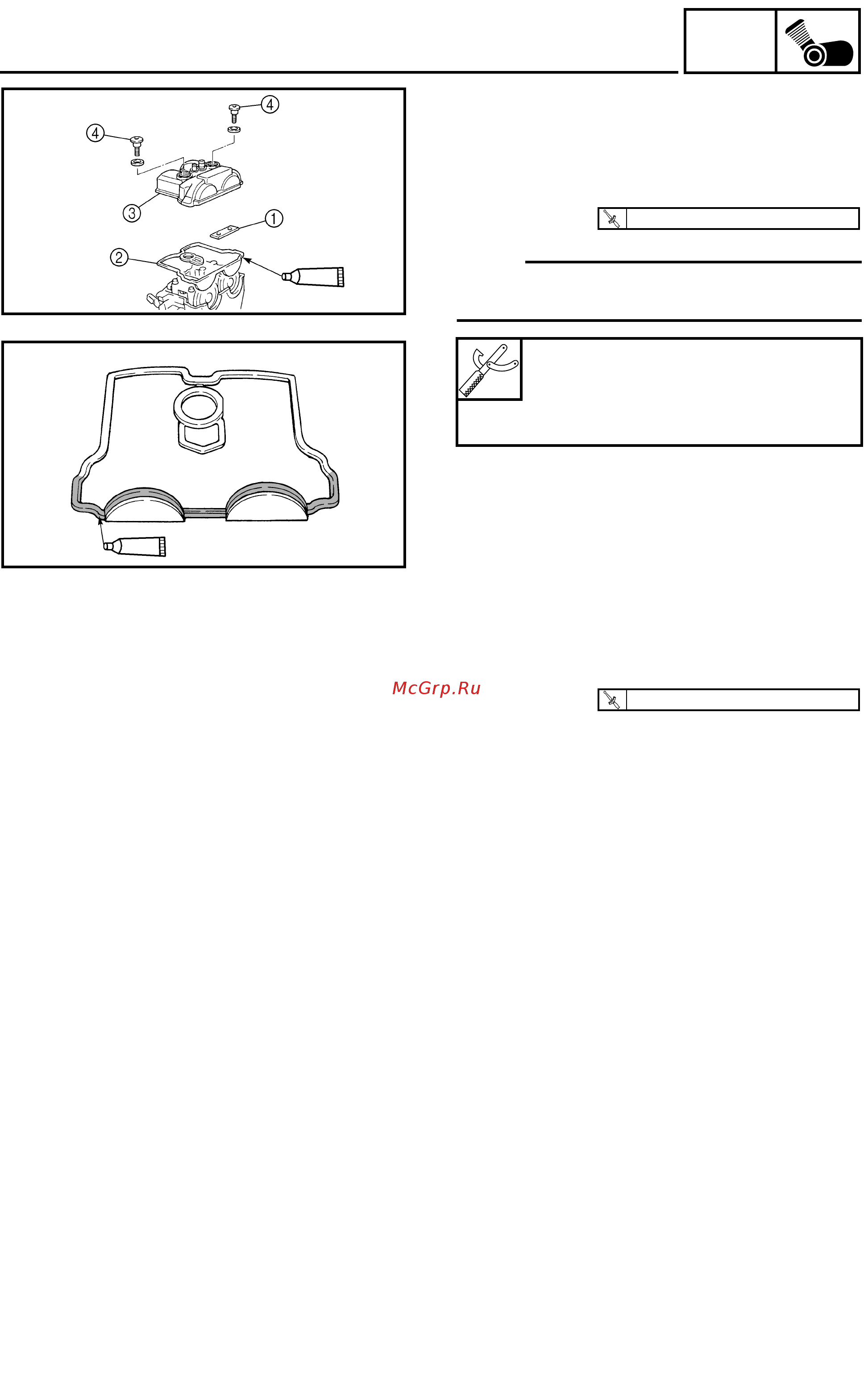

6. Install:
● Timing chain guide (top side) 1
● Cylinder head cover gasket 2
● Cylinder head cover 3
● Bolt (cylinder head cover) 4
NOTE:
Apply the sealant on the cylinder head cover
gasket.
Quick gasket
®
:
ACC-QUICK-GS-KT
YAMAHA Bond No. 1215:
90890-85505
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
7. Install:
● Oil tank breather hose
● Cylinder head breather hose
● Spark plug
T
R
.
.
13 Nm (1.3 m · kg, 9.4 ft · lb)
CAMSHAFTS
