4 - 20
ENG

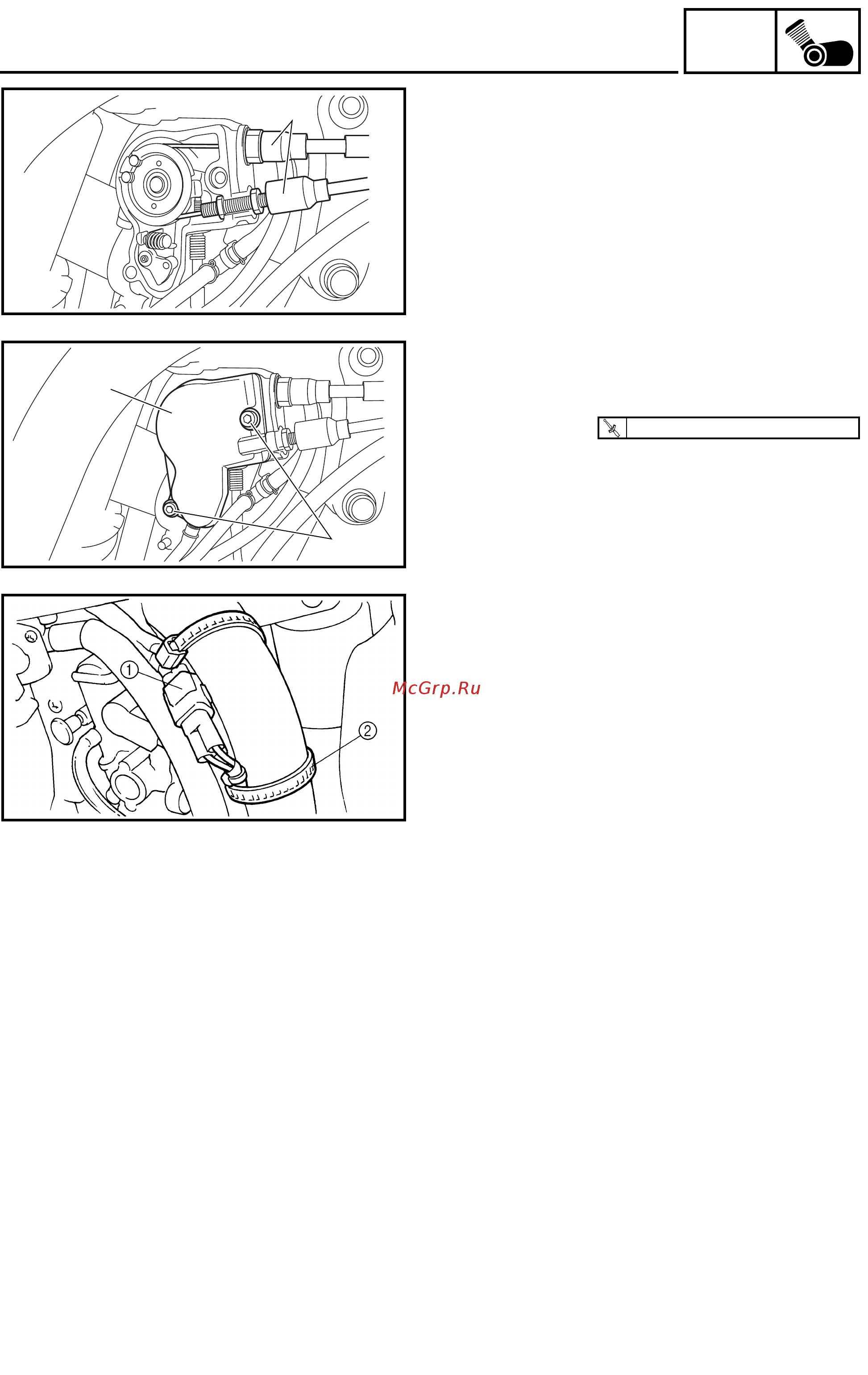

5. Install:
● Throttle cable 1
6. Adjust:
● Throttle grip free play
Refer to “THROTTLE CABLE ADJUST-
MENT” section in the CHAPTER 3.
1
7. Install:
● Throttle cable cover 1
● Screw (throttle cable cover) 2
2
1
T
R
.
.
4 Nm (0.4 m · kg, 2.9 ft · lb)
8. Install:
● Throttle position sensor lead coupler 1
● Clamp 2
Refer to “CABLE ROUTING DIA-
GRAM” section in the CHAPTER 2.
CARBURETOR
