2 - 22
SPEC

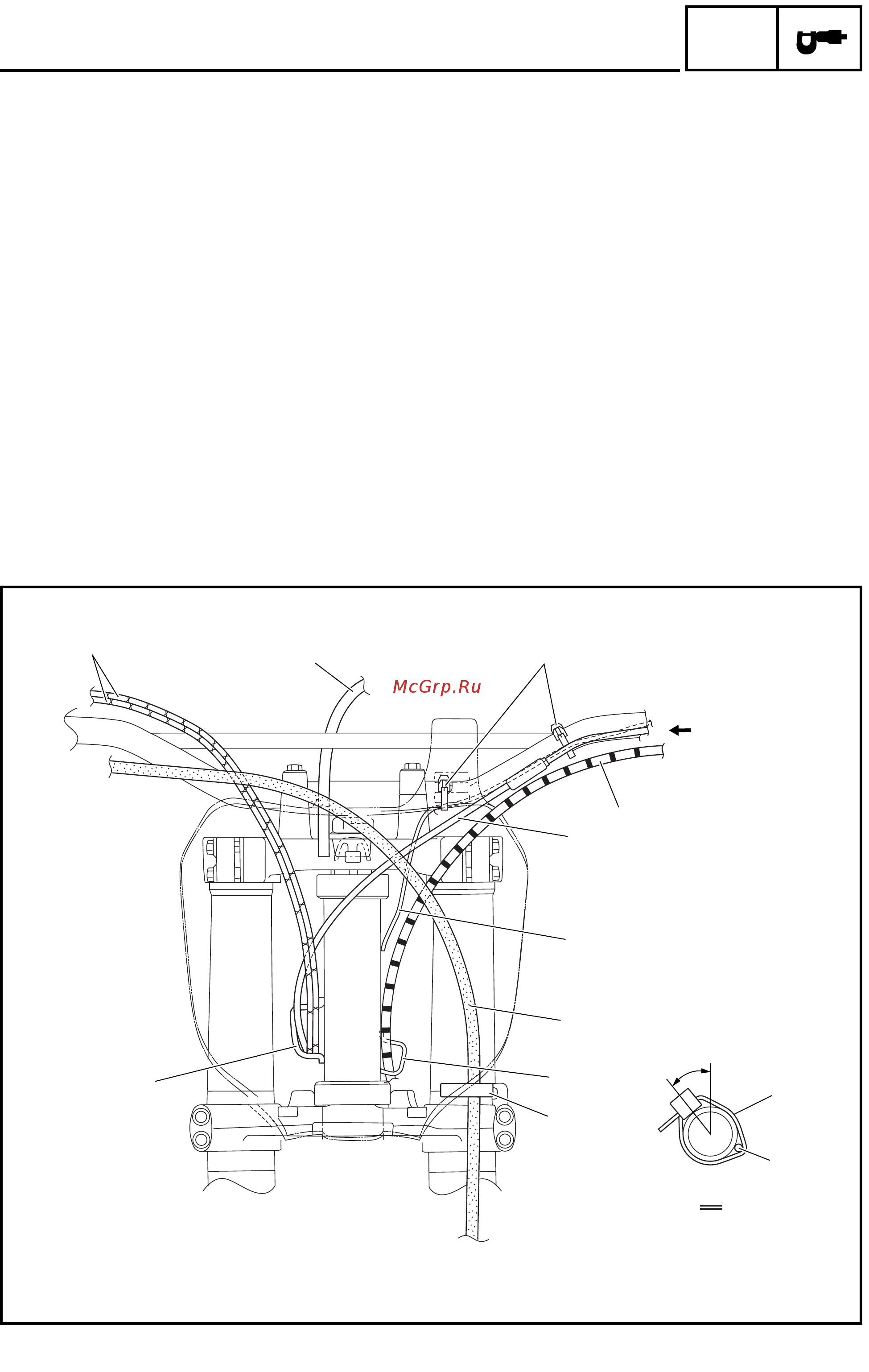

CABLE ROUTING DIAGRAM
1 Throttle cable
2 Fuel tank breather hose
3 Clamp
4 Clutch cable
5 Hot starter cable
6 Engine stop switch lead
7 Brake hose
8 Hose guide
Å Fasten the engine stop switch lead to the handlebar.
ı Pass the brake hose in front of the number plate.
Ç Pass the clutch cable through the cable guide.
Î Pass the throttle cables and hot starter cable through the cable
guide.
1
2
3
4
5
6
7
8
3
6
Î
ı
Ç
Å
40˚±10˚
A
A
