Yamaha WR250F 2003 [229/304] Front brake and rear brake
![Yamaha WR250F 2003 [229/304] Front brake and rear brake](/views2/1012986/page229/bge5.png)
5 - 25
CHAS
FRONT BRAKE AND REAR BRAKE
2. Air bleed:
● Brake system
Refer to “BRAKE SYSTEM AIR
BLEEDING” section in the CHAPTER
3.
3. Inspect:
● Brake fluid level
Fluid at lower level → Fill up.
Refer to “BRAKE FLUID LEVEL
INSPECTION” section in the CHAP-
TER 3.

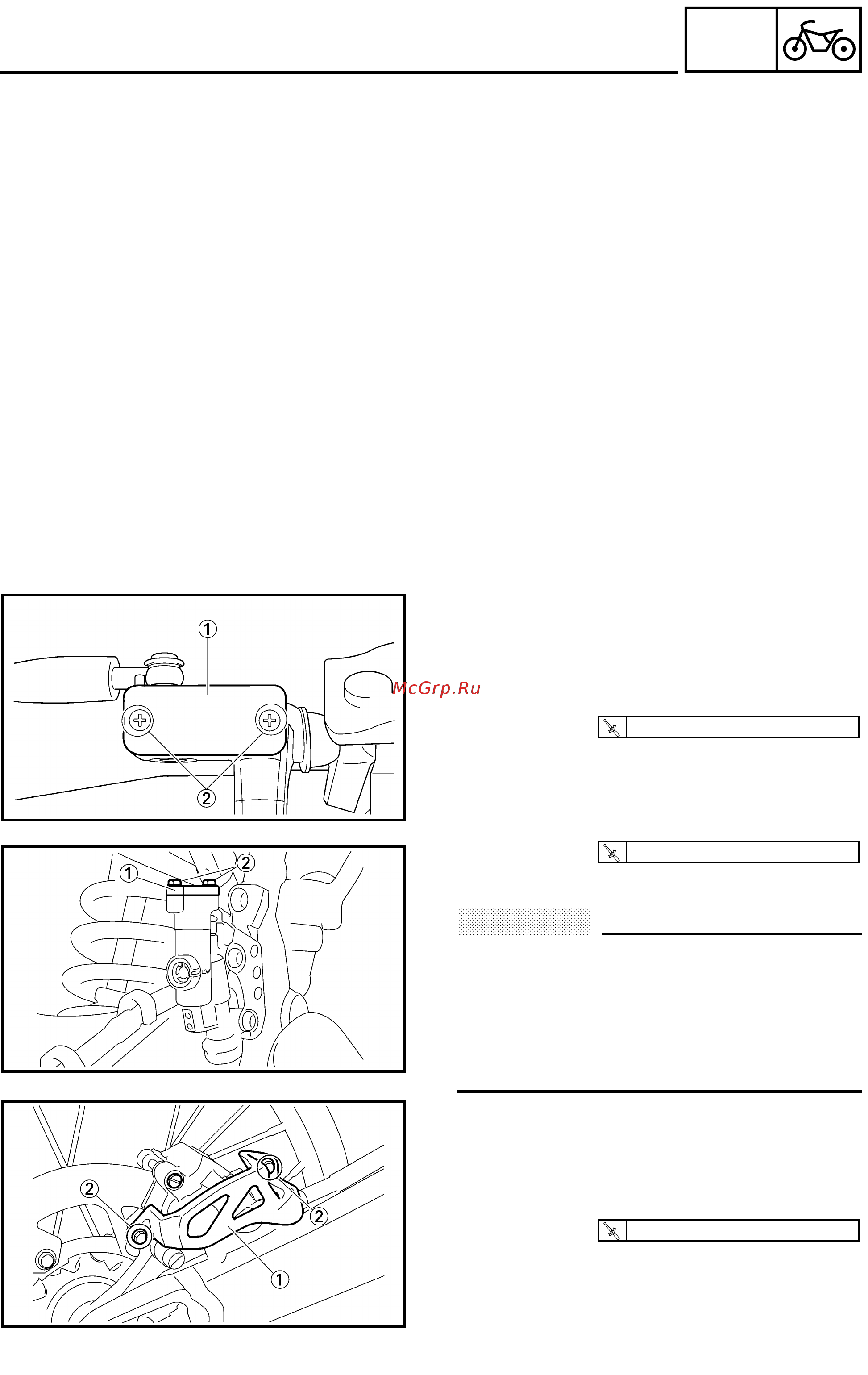

4. Install:
[Front]
● Diaphragm
● Brake master cylinder cap 1
● Screw (brake master cylinder cap) 2
[Rear]
● Diaphragm
● Brake master cylinder cap 1
● Bolt (brake master cylinder cap) 2
ACHTUNG:
CAUTION:
After installation, while pulling the brake
lever in or pushing down on the brake
pedal, check whether there is any brake
fluid leaking where the union bolts are
installed respectively at the brake master
cylinder and brake caliper.
Å Front
ı Rear
5. Install: (rear brake only)
● Protector 1
● Bolt (protector) 2
Å
T
R
.
.
2 Nm (0.2 m · kg, 1.4 ft · lb)
T
R
.
.
2 Nm (0.2 m · kg, 1.4 ft · lb)
ı
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
