7 - 7
TUN

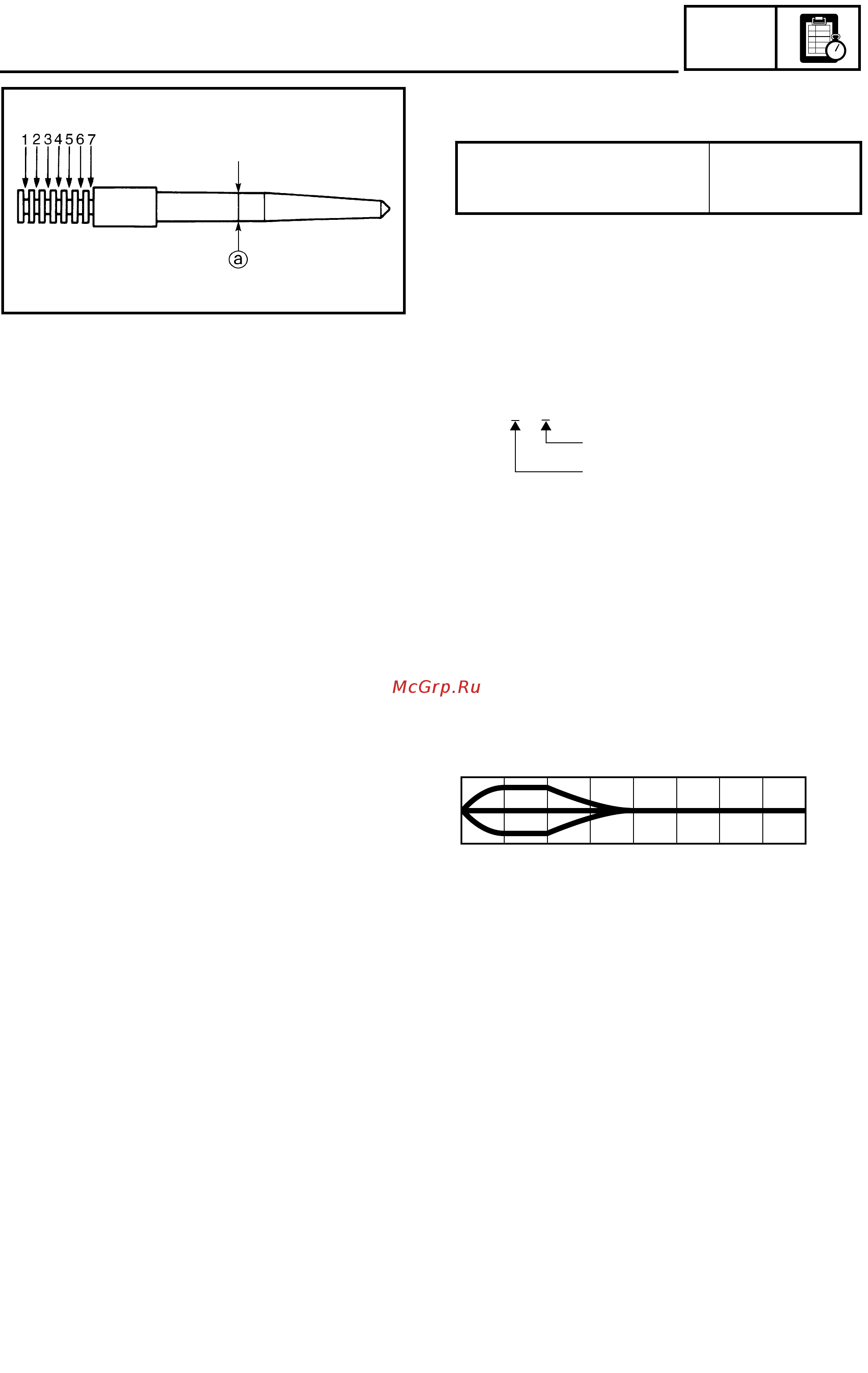

Jet needle adjustment
The jet needle is adjusted by changing it.
* For EUROPE
The tapered sections of all jet needles have
the same starting positions, but the needles
are available with different straight-portion
diameters.
Standard jet needle
OBELP
*OBEKP
<Example>
OBELP - 4
Clip position
Diameter a of straight portion
Effects of changing the jet needle (refer-
ence)
(Diameter of the straight portion)
Changing the diameter of the straight portion
adjusts the air-fuel mixture when the throttle is
1/8 to 1/4 open.
Å Idle
ı Fully open
+10 %
P
–10 %
N
Q
1/4 1/2 3/4
ıÅ
SETTING
