Yamaha WR250F 2003 [111/304] Radiator
![Yamaha WR250F 2003 [111/304] Radiator](/views2/1012986/page111/bg6f.png)
4 - 7
ENG

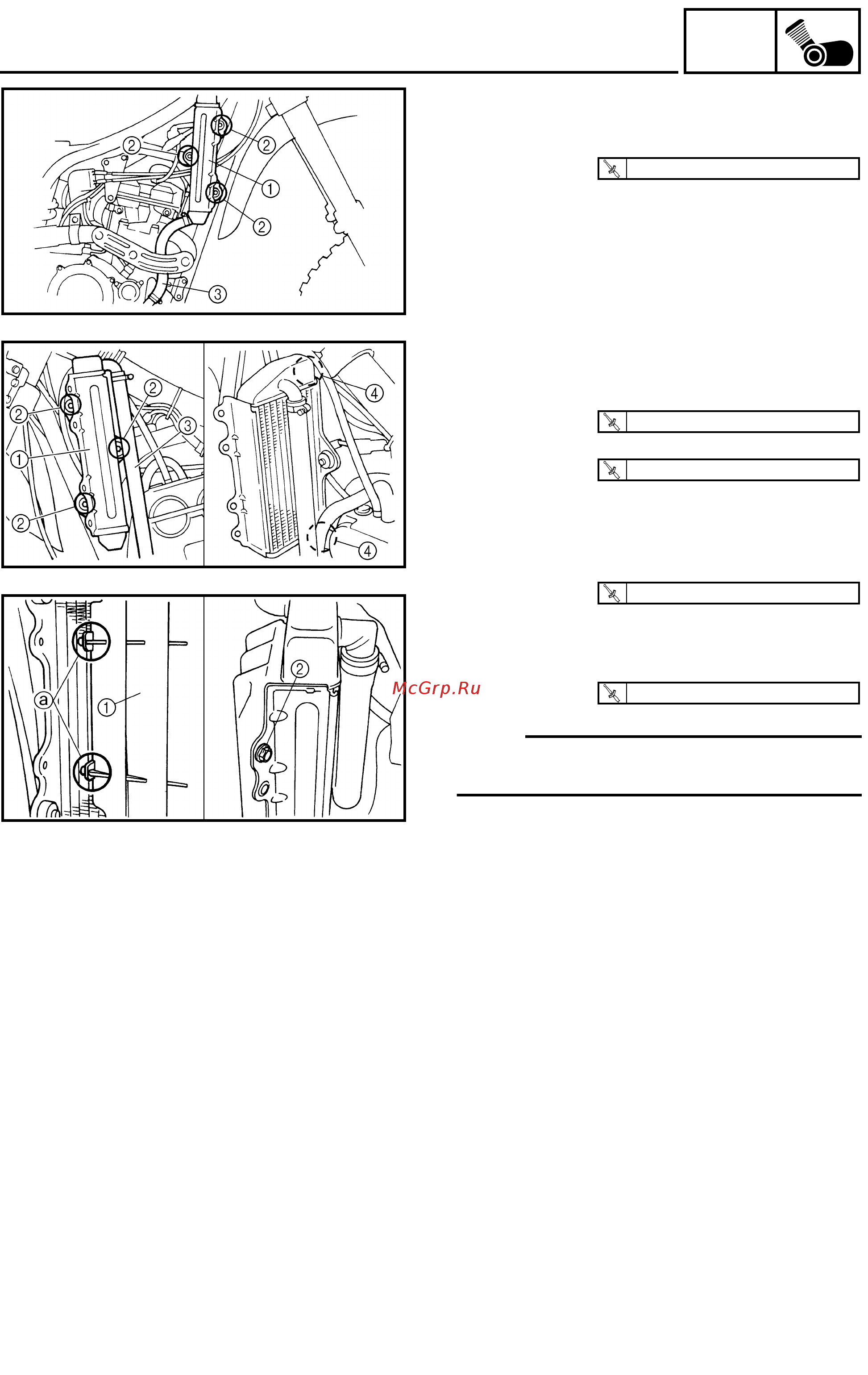

RADIATOR
3. Install:
● Right radiator 1
● Bolt (right radiator) 2
● Radiator hose 3 3
Refer to “CABLE ROUTING DIA-
GRAM” section in the CHAPTER 2.
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
4. Install:
● Left radiator 1
● Bolt (left radiator) 2
● Radiator hose 1 3
Refer to “CABLE ROUTING DIA-
GRAM” section in the CHAPTER 2.
5. Tighten:
● Radiator hose clamp 4
6. Install:
● Radiator guard 1
● Bolt (radiator guard) 2
NOTE:
Fit the hook a on the inner side first into the
radiator.
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
T
R
.
.
2 Nm (0.2 m · kg, 1.4 ft · lb)
T
R
.
.
2 Nm (0.2 m · kg, 1.4 ft · lb)
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
