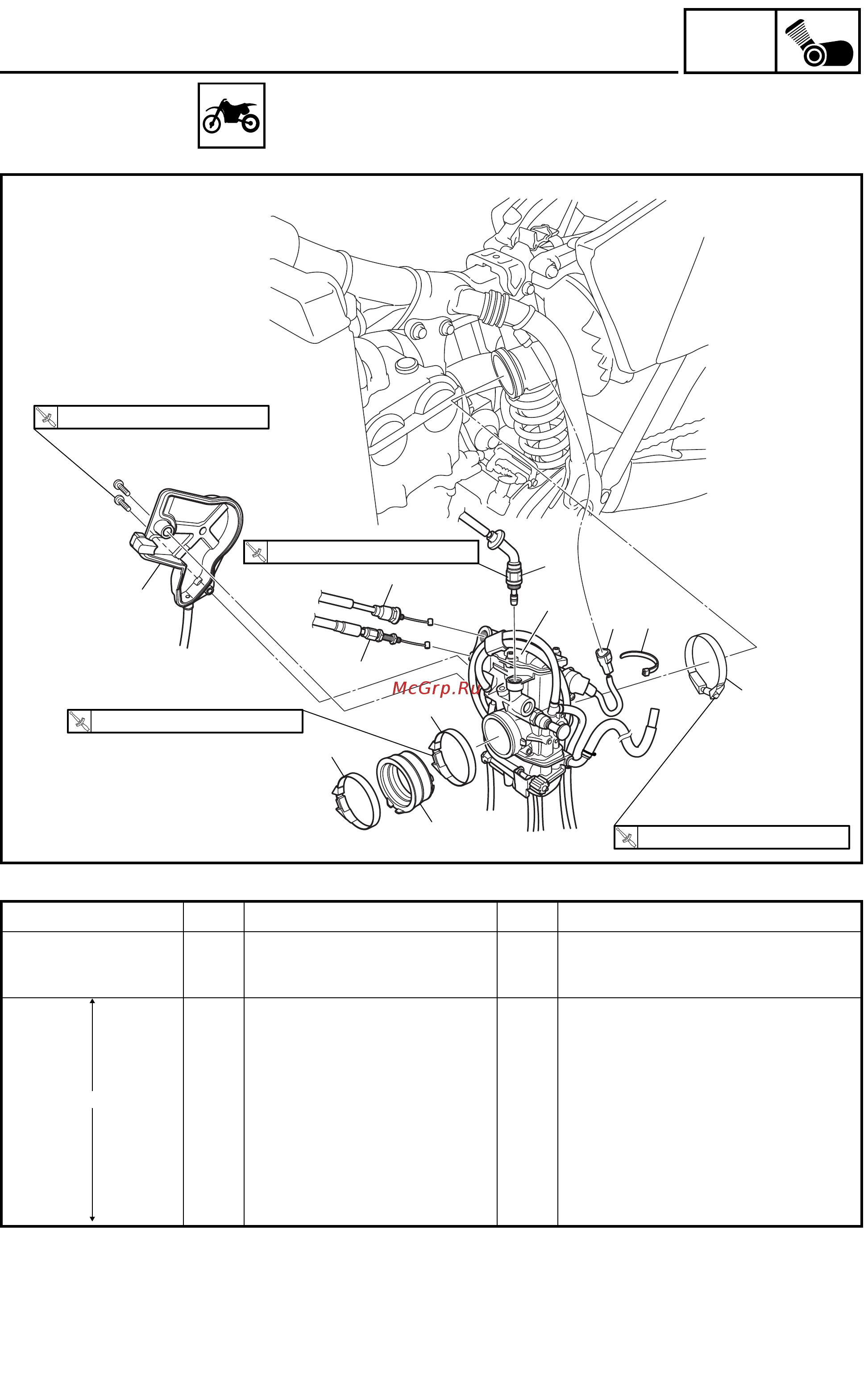

CARBURETOR
CARBURETOR
5
1
2
6
6
4
4
3
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
R
.
.
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
T
R
.
.
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
9
7
8
T
R
.
.
2 Nm (0.2 m
•
kg, 1.4 ft
•
Ib)
Extent of removal: 1 Carburetor removal
Extent of removal Order Part name Q’ty Remarks
CARBURETOR REMOVAL
Preparation for removal Seat and fuel tank Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
1 Clamp 1
2 Throttle position sensor lead cou-
pler
1
3 Throttle cable cover 1
4 Throttle cable 2
5 Clamp (air filter joint) 1 Loosen the screw (air filter joint).
6 Clamp (carburetor joint) 2 Loosen the screws (carburetor joint).
7 Hot starter plunger 1
8 Carburetor assembly 1
9 Carburetor joint 1
