Yamaha WR250F 2003 [88/304] Insp adj
![Yamaha WR250F 2003 [88/304] Insp adj](/views2/1012986/page88/bg58.png)
3 - 30
INSP
ADJ

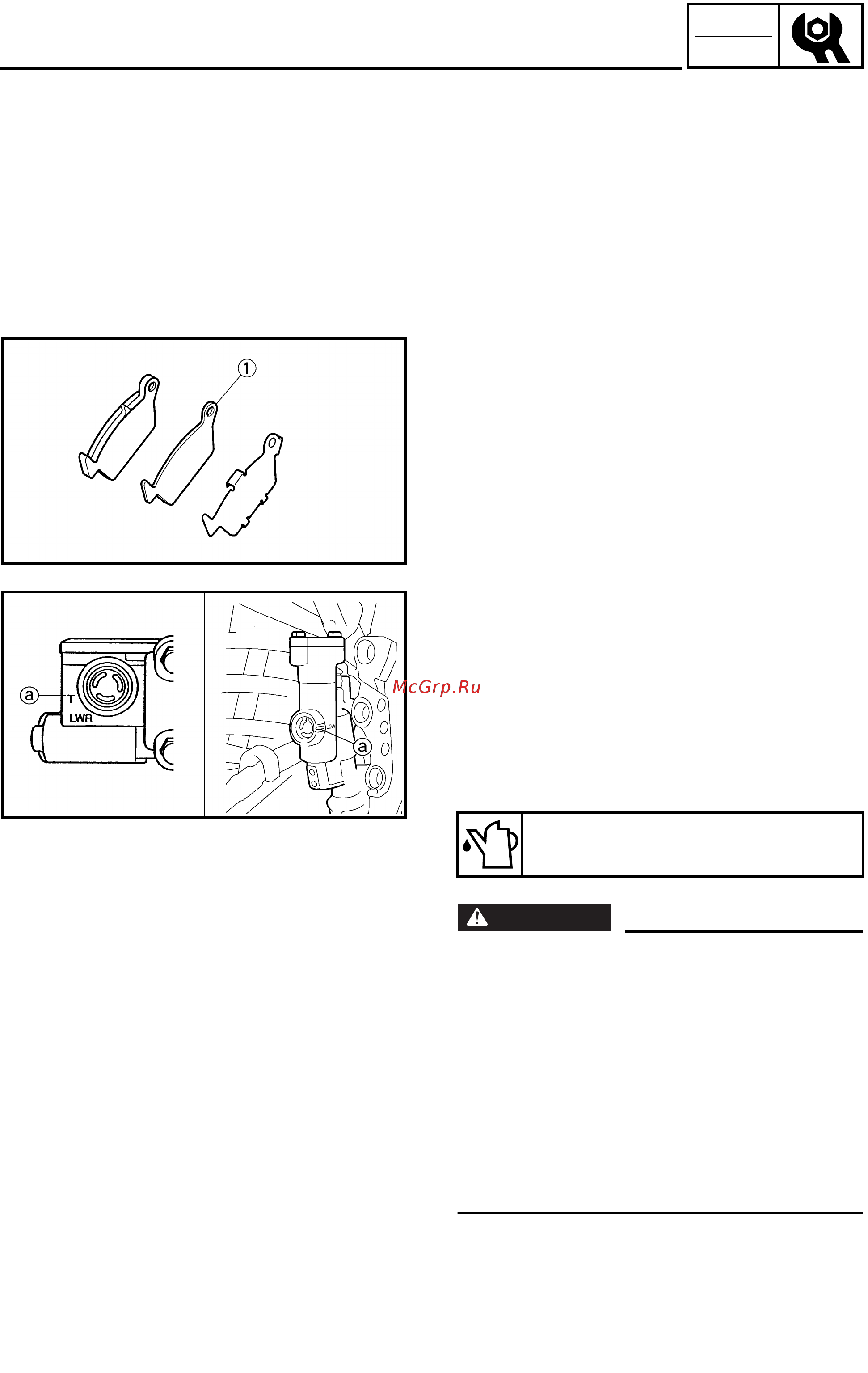

REAR BRAKE PAD INSULATOR INSPECTION/
BRAKE FLUID LEVEL INSPECTION
3. Inspect:
● Brake fluid level
Refer to “BRAKE FLUID LEVEL
INSPECTION” section.
4. Check:
● Brake pedal operation
A softy or spongy feeling → Bleed
brake system.
Refer to “BRAKE SYSTEM AIR
BLEEDING” section.
EC36b000
REAR BRAKE PAD INSULATOR
INSPECTION
1. Remove:
● Brake pad
Refer to “REAR BRAKE PAD INSPEC-
TION AND REPLACEMENT” section.
2. Inspect:
● Rear brake pad insulator 1
Damage → Replace.
BRAKE FLUID LEVEL INSPECTION
1. Place the brake master cylinder so that
its top is in a horizontal position.
2. Inspect:
● Brake fluid level
Fluid at lower level → Fill up.
a Lower level
Å Front
ı Rear
WARNING
● Use only designated quality brake fluid to
avoid poor brake performance.
● Refill with same type and brand of brake
fluid; mixing fluids could result in poor
brake performance.
● Be sure that water or other contaminants
do not enter master cylinder when refill-
ing.
● Clean up spilled fluid immediately to
avoid erosion of painted surfaces or plas-
tic parts.
Recommended brake fluid:
DOT #4
Å
ı
