Yamaha WR250F 2003 [218/304] Front brake and rear brake
![Yamaha WR250F 2003 [218/304] Front brake and rear brake](/views2/1012986/page218/bgda.png)
5 - 14
CHAS

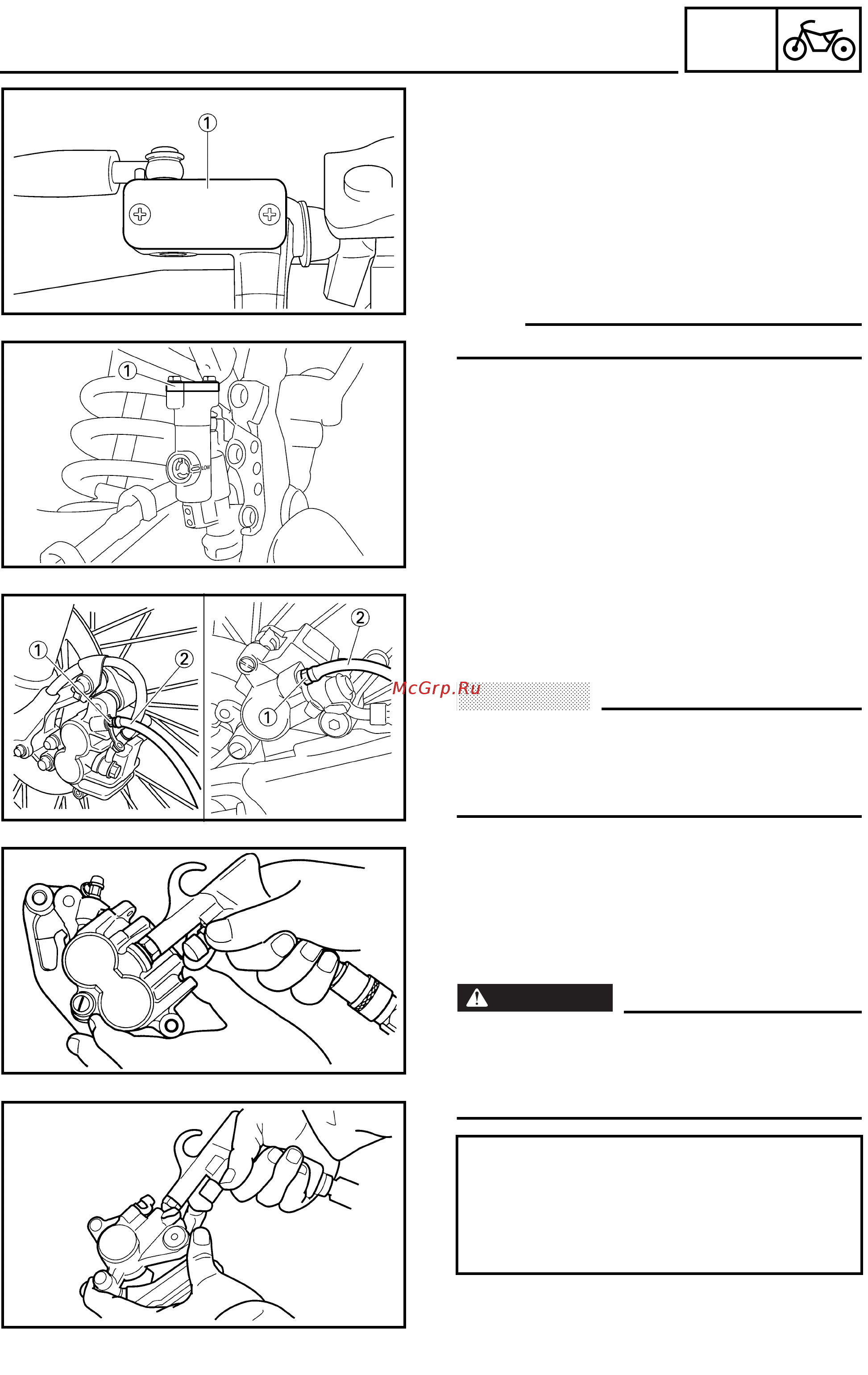

FRONT BRAKE AND REAR BRAKE
EC5A3000
REMOVAL POINTS
Brake fluid
1. Remove:
[Front]
● Brake master cylinder cap 1
[Rear]
● Brake master cylinder cap 1
● Protector
NOTE:
Do not remove the diaphragm.
Å Front
ı Rear
2. Connect the transparent hose 2 to the
bleed screw 1 and place a suitable con-
tainer under its end.
Å Front
ı Rear
Å
ı
3. Loosen the bleed screw and drain the
brake fluid while pulling the lever in or
pushing down on the pedal.
ACHTUNG:
CAUTION:
● Do not reuse the drained brake fluid.
● Brake fluid may erode painted surfaces or
plastic parts. Always clean up spilled
fluid immediately.
ı
Å
Brake caliper piston
1. Remove:
● Brake caliper piston
Use compressed air and proceed care-
fully.
WARNING
● Cover piston with rag and use extreme
caution when expelling piston from cylin-
der.
● Never attempt to pry out piston.
Å Front
ı Rear
Caliper piston removal steps:
● Insert a piece of rag into the brake caliper
to lock one brake caliper.
● Carefully force the piston out of the brake
caliper cylinder with compressed air.
Å
ı
